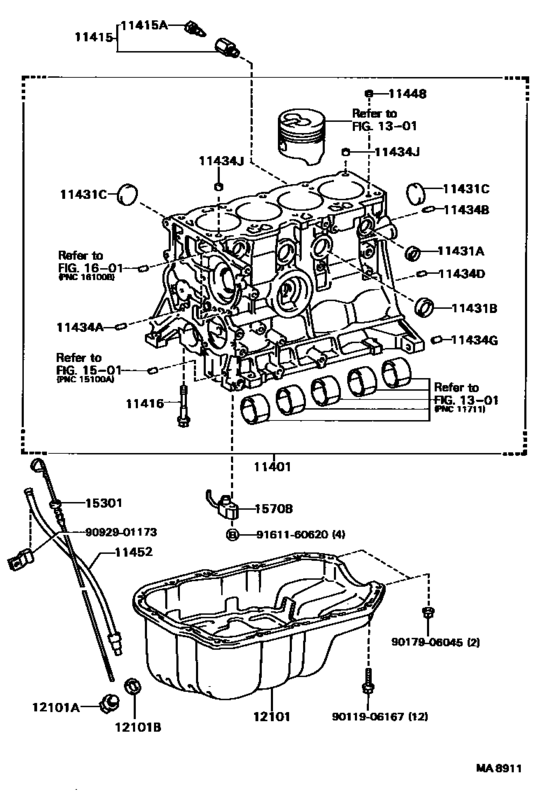

Cylinder Block ([05.1986 - ] (8605- )1NT) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 02.1987
- To
- 05.1988
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-59326 Block Sub-Assy, Cylinder[10.1986 - 05.1988] 1NT..NL30 |
11401-59326 |
US $3,174.08 |
||
| replacements | |||||
|
11401
|
11401
11401-59685 Block Sub-Assy, Cylinder[10.1986 - 05.1988] 1NT..NL30 |
11401-59685 |
US $3,174.08 |
||
|
11401
|
11401
13011-55012 Ring Set, Piston[10.1986 - 05.1988] 1NT..NL30 |
13011-55012 |
from US $215.42 |
||
|
11415
|
11415
90910-09088
Cock Sub-Assy, Water Drain(For Cylinder Block)
[05.1986 - 05.1988] 1NT..NL30 |
90910-09088 |
— | ||
| replacement | |||||
|
11415
|
11415
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[05.1986 - 05.1988] 1NT..NL30 |
90345-52003 |
US $3.68 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[05.1986 - 05.1988] 1NT..NL30 |
90910-09087 |
from US $3.68 |
||
|
11416
|
11416
90105-10153 Bolt(For Crankshaft Bearing Cap Set)[05.1986 - 05.1988] 1NT..NL30 |
90105-10153 |
US $4.22 |
||
|
11431A
|
11431A
96411-42000 Plug, Tight, No.1[05.1986 - 05.1988] 1NT..NL30 |
96411-42000 |
from US $3.20 |
||
|
11431B
|
11431B
96411-43000 Plug, Tight, No.1[05.1986 - 05.1988] 2E,3E#..EL3# OD=30; 1NT..NL30 OD=30 |
96411-43000 |
from US $3.84 |
||
|
11431C
|
11431C
96411-43500 Plug, Tight, No.1[05.1986 - 05.1988] 2E,3E#..EL3# OD=35; 1NT..NL30 OD=35 |
96411-43500 |
from US $3.88 |
||
|
11434A
|
11434A
90250-06003 Pin, Straight[05.1986 - 05.1988] 1NT..NL30 長さ＝１４，外径＝６ |
90250-06003 |
US $1.44 |
||
|
11434B
|
11434B
90250-10017 Pin, Straight(For Clutch Housing Set)[12.1986 - 05.1988] 2E,3E#..EL3# 長さ＝２０，外径＝１０,L=20,OD=8; 1NT..NL30 長さ＝２０，外径＝１０,L=20,OD=8 |
90250-10017 |
from US $2.08 |
||
|
11434D
|
11434D
90253-10005 Pin, Straight(For Engine Rear Oil Seal)[05.1986 - 05.1988] 1NT..NL30 長さ＝１０，外径＝１０ |
90253-10005 |
US $1.75 |
||
|
11434G
|
11434G
90253-15001 Pin, Straight(For Clutch Housing Set)[12.1987 - 05.1988] 1NT..NL30 |
90253-15001 |
from US $1.17 |
||
|
11434G
|
11434G
90253-15016 Pin, Straight(For End Plate)[05.1986 - 12.1987] 1NT..NL30 |
90253-15016 |
from US $1.44 |
||
|
11434J
|
11434J
90253-14001 Pin, Straight (For Cylinder Head Set)[05.1986 - 05.1988] 1NT..NL30 |
90253-14001 |
US $2.62 |
||
|
11448
|
11448
11448-55010
Orifice, Cylinder Block Oil
[05.1986 - 05.1988] 1NT..NL30 |
11448-55010 |
— | ||
|
11452
|
11452
11452-55010 Guide, Oil Level Gage[05.1986 - 05.1988] 1NT..NL30 |
11452-55010 |
US $28.25 |
||
|
12101
|
12101
12101-55010 Pan Sub-Assy, Oil[05.1986 - 05.1988] 1NT..NL30 |
12101-55010 |
US $218.40 |
||
| replacement | |||||
|
12101
|
12101
12101-55011 Pan Sub-Assy, Oil[05.1986 - 05.1988] 1NT..NL30 |
12101-55011 |
US $218.40 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[05.1986 - 05.1988] 2E,3E#..EL3#; 1NT..NL30 |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[05.1986 - 05.1988] 2E,3E#..EL3#; 1NT..NL30 |
90341-T0004 |
US $4.49 |
||
|
12101B
|
12101B
90430-12011
Gasket(For Oil Pan Drain Plug)
[05.1986 - 03.1988] 2E,3E#..EL3#; 1NT..NL30 |
90430-12011 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[05.1986 - 03.1988] 2E,3E#..EL3#; 1NT..NL30 |
90430-12028 |
from US $1.41 |
||
|
12101B
|
12101B
90430-12019
Gasket(For Oil Pan Drain Plug)
[03.1988 - 05.1988] 2E,3E#..EL3#; 1NT..NL30 |
90430-12019 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[03.1988 - 05.1988] 2E,3E#..EL3#; 1NT..NL30 |
90430-12028 |
from US $1.41 |
||
|
15301
|
15301
15301-55010 Gage Sub-Assy, Oil Level[05.1986 - 05.1988] 1NT..NL30 |
15301-55010 |
US $17.04 |
||
|
15708
|
15708
15790-55010 Nozzle Sub-Assy, Oil, No.1[05.1986 - 05.1988] 1NT..NL30 |
15790-55010 |
US $19.07 |
||
|
9011906167
|
9011906167
90119-06167 New Genuine Part |
90119-06167 |
US $1.75 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9092901173
|
9092901173
90929-01173 New Genuine Part |
90929-01173 |
US $5.39 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.44 |
||
