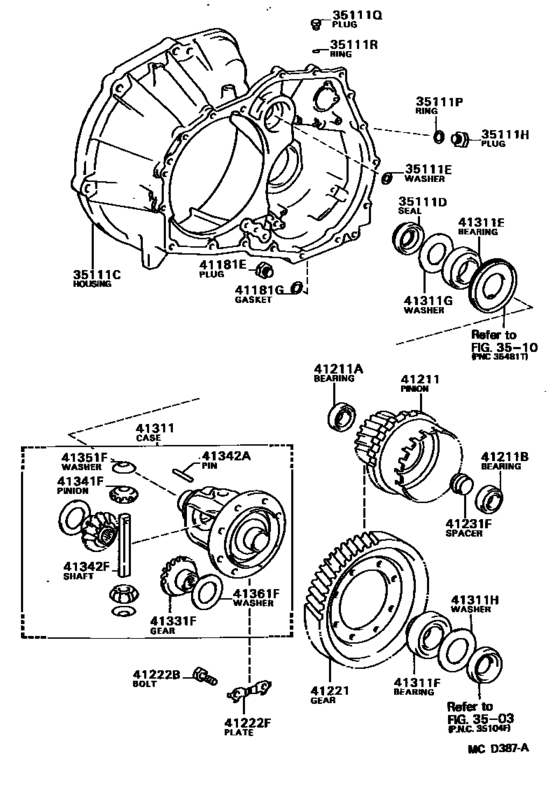

Front Axle Housing & Differential ([05.1986 - ] (8605- )4FC) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 02.1987
- To
- 05.1988
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35111C
|
35111C
35105-16010 Housing, Transaxle[09.1986 - 05.1988] NL30..4FC |
35105-16010 |
US $816.82 |
||
| replacement | |||||
|
35111C
|
35111C
35105-10021 Housing, Transaxle[09.1986 - 05.1988] NL30..4FC |
35105-10021 |
US $768.77 |
||
|
35111D
|
35111D
90311-34005 Seal, Oil (For Transaxle Case)[05.1986 - 09.1987] EL31,NL30..4FC |
90311-34005 |
US $3.93 |
||
| replacement | |||||
|
35111D
|
35111D
90311-34012 Oil Seal[05.1986 - 09.1987] EL31,NL30..4FC |
90311-34012 |
US $5.60 |
||
|
35111D
|
35111D
90311-34012 Oil Seal[09.1987 - 05.1988] EL3#,NL30..ATM |
90311-34012 |
US $5.60 |
||
|
35111E
|
35111E
90210-13002 Washer, Seal (For Front Transaxle Housing)[05.1986 - 05.1988] EL31,NL30..4FC |
90210-13002 |
US $4.08 |
||
|
35111Q
|
35111Q
90341-08001 Plug, Transaxle Case, No.1[05.1986 - 05.1988] EL31,NL30..4FC |
90341-08001 |
from US $1.58 |
||
|
35111R
|
35111R
90301-06196 O Ring, Transaxle Case, No.1[05.1986 - 05.1988] EL31,NL30..4FC |
90301-06196 |
from US $2.52 |
||
|
41181E
|
41181E
90341-18021 Plug, Filler(Hv)[04.1987 - 05.1988] EL3#,NL30..ATM |
90341-18021 |
from US $2.44 |
||
|
41181E
|
41181E
90341-18057 Drain Plug (with Magnet)[05.1986 - 04.1987] EL3#,NL30..ATM |
90341-18057 |
US $5.60 |
||
|
41181G
|
41181G
90430-18008 Gasket[05.1986 - 05.1988] EL3#,NL30..ATM |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
41181G
|
41181G
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[05.1986 - 05.1988] EL3#,NL30..ATM |
90430-T0021 |
— | ||
|
41211
|
41211
41206-16010 Pinion, Differential Drive[05.1986 - 05.1988] EL31,NL30..4FC..(CBR,TD) |
41206-16010 |
US $310.13 |
||
|
41211A
|
41211A
90366-30020 Bearing (For Rear Drive Pinion Rear)[05.1986 - 05.1988] EL31,NL30..4FC |
90366-30020 |
US $40.91 |
||
|
41211B
|
41211B
90366-30019 Bearing (For Rear Drive Pinion Rear)[05.1986 - 05.1988] EL31,NL30..4FC |
90366-30019 |
US $39.17 |
||
|
41221
|
41221
41221-16090 Gear, Front Differential Ring[05.1986 - 05.1988] EL31,NL30..4FC..(CBR,TD) |
41221-16090 |
US $168.90 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[05.1986 - 05.1988] EL3#,NL30..ATM |
90101-11353 |
from US $0.90 |
||
|
41222F
|
41222F
41222-12050 Plate, Rear Differential Ring Gear Set Bolt Lock[05.1986 - 05.1988] EL3#,NL30..ATM |
41222-12050 |
US $3.49 |
||
|
41231F
|
41231F
41231-12030
Spacer, Rear Differential Drive Pinion Bearing
[05.1986 - 05.1988] EL31,NL30..4FC |
41231-12030 |
— | ||
|
41311
|
41311
41301-17020 Case Sub-Assy, Rear Differential[08.1986 - 05.1988] EL31,NL30..4FC |
41301-17020 |
US $546 |
||
| replacement | |||||
|
41311
|
41311
41301-17021
Case Sub-Assy, Rear Differential
[08.1986 - 05.1988] EL31,NL30..4FC |
41301-17021 |
— | ||
|
41311E
|
41311E
90368-38006
Bearing(For Rear Differential Case)
[08.1986 - 05.1988] EL3#,NL30..ATM |
90368-38006 |
— | ||
| replacement | |||||
|
41311E
|
41311E
90368-38002 Bearing, Tapered Roller (For Front Differential Case Front)[08.1986 - 05.1988] EL3#,NL30..ATM |
90368-38002 |
US $15.72 |
||
|
41311F
|
41311F
90368-38010 Bearing(For Rear Differential Case)[05.1986 - 05.1988] EL3#,NL30..4F,4FC,5F |
90368-38010 |
from US $25.38 |
||
|
41311G
|
41311G
90201-41010 Washer, Plate (For Front Differential Case Front)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．００; EL30..3FC 厚さ＝２．００,T=2.00 |
90201-41010 |
US $5.39 |
||
|
41311H
|
41311H
90201-41024 Washer, Plate (For Front Differential Case Front)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．００，マーク Ｖ,T=2.00 |
90201-41024 |
US $4.08 |
||
|
41311H
|
41311H
90201-41025 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．３５，マーク Ａ,T=2.35 |
90201-41025 |
US $6.84 |
||
|
41311H
|
41311H
90201-41026 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．４０，マーク Ｂ,T=2.40 |
90201-41026 |
US $6.84 |
||
|
41311H
|
41311H
90201-41027 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．４５，マーク Ｃ,T=2.45 |
90201-41027 |
US $6.84 |
||
|
41311H
|
41311H
90201-41028 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．５０，マーク Ｄ,T=2.50 |
90201-41028 |
US $8.15 |
||
|
41311H
|
41311H
90201-41029 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．５５，マーク Ｅ,T=2.55 |
90201-41029 |
US $8.15 |
||
|
41311H
|
41311H
90201-41030 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．６０，マーク Ｆ,T=2.60 |
90201-41030 |
US $8.15 |
||
|
41311H
|
41311H
90201-41031 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．６５，マーク Ｇ,T=2.65 |
90201-41031 |
US $8.15 |
||
|
41311H
|
41311H
90201-41032 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．７０，マーク Ｈ,T=2.70 |
90201-41032 |
US $5.24 |
||
|
41311H
|
41311H
90201-41033 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．７５，マーク Ｊ,T=2.75 |
90201-41033 |
US $8.15 |
||
|
41311H
|
41311H
90201-41034 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．８０，マーク Ｋ,T=2.80 |
90201-41034 |
US $8.15 |
||
|
41311H
|
41311H
90201-41035 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．８５，マーク Ｌ,T=2.85 |
90201-41035 |
US $8.15 |
||
|
41311H
|
41311H
90201-41036 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．９０，マーク Ｍ,T=2.90 |
90201-41036 |
US $8.15 |
||
|
41311H
|
41311H
90201-41039 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．１０，マーク Ｑ,T=2.10 |
90201-41039 |
US $6.84 |
||
|
41311H
|
41311H
90201-41040 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．１５，マーク Ｒ,T=2.15 |
90201-41040 |
US $6.84 |
||
|
41311H
|
41311H
90201-41041 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．２０，マーク Ｓ,T=2.20 |
90201-41041 |
US $6.84 |
||
|
41311H
|
41311H
90201-41042 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．２５，マーク Ｔ,T=2.25 |
90201-41042 |
US $6.84 |
||
|
41311H
|
41311H
90201-41043 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．３０，マーク Ｕ,T=2.30 |
90201-41043 |
US $6.84 |
||
|
41311H
|
41311H
90201-41044 Washer, Plate (For Front Differential Case Rear)[05.1986 - 05.1988] EL31,NL30..4FC 厚さ＝２．０５，マーク Ｗ,T=2.05 |
90201-41044 |
US $4.08 |
||
|
41331F
|
41331F
41331-12011 Gear, Rear Differential Side[05.1986 - 05.1988] EL3#,NL30..ATM |
41331-12011 |
US $38.26 |
||
|
41341F
|
41341F
41341-12030 Pinion, Rear Differential[05.1986 - 05.1988] EL3#,NL30..ATM |
41341-12030 |
US $24.98 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[05.1986 - 05.1988] EL3#,NL30..ATM |
90250-06058 |
from US $2.09 |
||
|
41342F
|
41342F
41342-12020 Shaft, Rear Differential Pinion[05.1986 - 05.1988] EL3#,NL30..ATM |
41342-12020 |
US $24.61 |
||
| replacement | |||||
|
41342F
|
41342F
41342-12140 Shaft, Front Differential Pinion, No.1[05.1986 - 05.1988] EL3#,NL30..ATM |
41342-12140 |
US $15.24 |
||
|
41351F
|
41351F
41351-12020 Washer, Rear Differential Pinion Thrust[05.1986 - 05.1988] EL3#,NL30..ATM |
41351-12020 |
from US $1.69 |
||
|
41361F
|
41361F
41361-17010 Washer, Rear Differential Side Gear Thrust, No.1[08.1986 - 05.1988] EL31,NL30..4FC 厚さ＝０．９５,T=0.95 |
41361-17010 |
US $3.14 |
||
|
41361F
|
41361F
41361-17020 Washer, Rear Differential Side Gear Thrust, No.1[08.1986 - 05.1988] EL31,NL30..4FC 厚さ＝１．００,T=1.00 |
41361-17020 |
US $2.62 |
||
|
41361F
|
41361F
41361-17030 Washer, Rear Differential Side Gear Thrust, No.1[08.1986 - 05.1988] EL31,NL30..4FC 厚さ＝１．０５,T=1.05 |
41361-17030 |
US $2.62 |
||
|
41361F
|
41361F
41361-17040 Washer, Rear Differential Side Gear Thrust, No.1[08.1986 - 05.1988] EL31,NL30..4FC 厚さ＝１．１０,T=1.10 |
41361-17040 |
US $2.62 |
||
|
41361F
|
41361F
41361-17050 Washer, Rear Differential Side Gear Thrust, No.1[08.1986 - 05.1988] EL31,NL30..4FC 厚さ＝１．１５,T=1.15 |
41361-17050 |
US $3.32 |
||
|
41361F
|
41361F
41361-17060 Washer, Rear Differential Side Gear Thrust, No.1[08.1986 - 05.1988] EL31,NL30..4FC 厚さ＝１．２０,T=1.20 |
41361-17060 |
US $2.62 |
||
