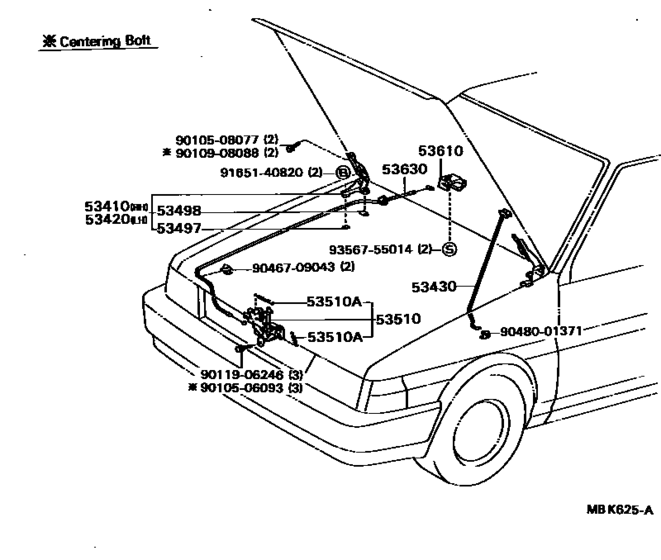

Hood Lock & Hinge ([05.1986 - ] (8605- )) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 02.1987
- To
- 05.1988
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-16040 Hinge Assy, Hood, Rh[05.1986 - 05.1988] EL3#,NL30 |
53410-16040 |
US $30.87 |
||
| replacement | |||||
|
53410
|
53410
53410-16041 Hinge Assy, Hood, Rh[05.1986 - 05.1988] EL3#,NL30 |
53410-16041 |
US $30.87 |
||
|
53420
|
53420
53420-16020 Hinge Assy, Hood, Lh[05.1986 - 05.1988] EL3#,NL30 |
53420-16020 |
US $30.87 |
||
| replacement | |||||
|
53420
|
53420
53420-16021 Hinge Assy, Hood, Lh[05.1986 - 05.1988] EL3#,NL30 |
53420-16021 |
US $30.87 |
||
|
53430
|
53430
53440-16030 Support Assy, Hood[05.1986 - 05.1988] NL30 |
53440-16030 |
US $19.36 |
||
|
53497
|
53497
53497-14070 Pad, Hood Hinge, No.1[05.1986 - 05.1988] EL3#,NL30 |
53497-14070 |
US $2.77 |
||
| replacement | |||||
|
53497
|
53497
53497-14071 Pad, Hood Hinge, No.1[05.1986 - 05.1988] EL3#,NL30 |
53497-14071 |
US $2.48 |
||
|
53498
|
53498
53498-14010 Pad, Hood Hinge, No.2[05.1986 - 05.1988] EL3#,NL30 |
53498-14010 |
US $2.77 |
||
| replacement | |||||
|
53498
|
53498
53498-14011 Pad, Hood Hinge, No.2[05.1986 - 05.1988] EL3#,NL30 |
53498-14011 |
US $2.48 |
||
|
53510
|
53510
53510-16090 Lock Assy, Hood[05.1986 - 05.1988] EL3#,NL30 |
53510-16090 |
US $43.68 |
||
|
53510A
|
53510A
90506-09029
Spring, Tension(For Hood Lock)
[05.1986 - 05.1988] EL3#,NL30 線径＝０．９,CW=26.5,WD=0.9 |
90506-09029 |
— | ||
|
53510A
|
53510A
90506-20008 Spring, Tension(For Hood Lock)[05.1986 - 05.1988] EL3#,NL30 線径＝２．０，コイル巻数＝１７,CW=17.0,WD=2.0 |
90506-20008 |
from US $3.52 |
||
|
53610
|
53610
53601-10020-01 Lever Sub-Assy, Hood Lock Control[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX BLACK,NEW BLACK,TRIM2# |
53601-10020-01 |
US $36.40 |
||
| replacement | |||||
|
53610
|
53610
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX BLACK,NEW BLACK,TRIM2# |
53601-10020-C0 |
US $35.47 |
||
|
53610
|
53610
53601-10020-05 Lever Sub-Assy, Hood Lock Control[05.1986 - 05.1988] EL3#,NL30..GL,LIM,TX,ZX BEIGE,DARK BEIGE,TRIM4# |
53601-10020-05 |
US $36.40 |
||
| replacement | |||||
|
53610
|
53610
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[05.1986 - 05.1988] EL3#,NL30..GL,LIM,TX,ZX BEIGE,DARK BEIGE,TRIM4# |
53601-10020-C0 |
US $35.47 |
||
|
53610
|
53610
53601-10020-14 Lever Sub-Assy, Hood Lock Control[05.1986 - 05.1988] EL3#,NL30 BLUE,BLUE,TRIM8# |
53601-10020-14 |
US $36.40 |
||
| replacement | |||||
|
53610
|
53610
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[05.1986 - 05.1988] EL3#,NL30 BLUE,BLUE,TRIM8# |
53601-10020-C0 |
US $35.47 |
||
|
53630
|
53630
53630-16130 Cable Assy, Hood Lock Control[05.1986 - 05.1988] EL3#,NL30 |
53630-16130 |
US $24.32 |
||
|
9010506093
|
9010506093
90105-06093
New Genuine Part
|
90105-06093 |
— | ||
| replacement | |||||
|
9010506093
|
9010506093
90105-06192 New Genuine Part |
90105-06192 |
US $1.92 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.76 |
||
|
9010908088
|
9010908088
90109-08088
New Genuine Part
|
90109-08088 |
— | ||
| replacement | |||||
|
9010908088
|
9010908088
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.82 |
||
|
9011906246
|
9011906246
90119-06246
New Genuine Part
|
90119-06246 |
— | ||
| replacement | |||||
|
9011906246
|
9011906246
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.12 |
||
|
9046709043
|
9046709043
90467-09043 Clamp, Hood Lock Control Cable |
90467-09043 |
from US $1.56 |
||
|
9048001371
|
9048001371
90480-01371 New Genuine Part |
90480-01371 |
US $2.62 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
