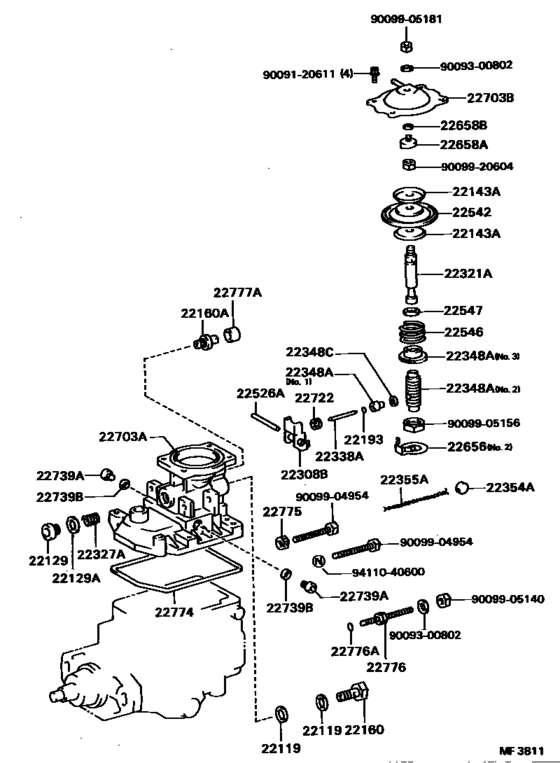

Injection Pump Body ([05.1986 - ] (8605- )1NT) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 02.1987
- To
- 05.1988
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22119
|
22119
22119-77020
Washer, Air Bleeder Nipple
[05.1986 - 05.1987] 1NT..NL30 |
22119-77020 |
— | ||
| replacement | |||||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[05.1986 - 05.1987] 1NT..NL30 |
90201-12109 |
from US $1.38 |
||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[05.1987 - 05.1988] 1NT..NL30 |
90201-12109 |
from US $1.38 |
||
|
22129
|
22129
22129-54120
Plug, Screw
[03.1987 - 05.1988] 1NT..NL30 |
22129-54120 |
— | ||
|
22129
|
22129
22129-64400
Plug, Screw
[05.1986 - 03.1987] 1NT..NL30 |
22129-64400 |
— | ||
|
22129A
|
22129A
22119-77020
Washer, Air Bleeder Nipple
[05.1986 - 05.1987] 1NT..NL30 |
22119-77020 |
— | ||
| replacement | |||||
|
22129A
|
22129A
90201-12109 Washer, Air Bleeder Nipple[05.1986 - 05.1987] 1NT..NL30 |
90201-12109 |
from US $1.38 |
||
|
22129A
|
22129A
90201-12109 Washer, Air Bleeder Nipple[05.1987 - 05.1988] 1NT..NL30 |
90201-12109 |
from US $1.38 |
||
|
22143A
|
22143A
22143-54260
Seat, Spring Upper
[05.1986 - 05.1988] 1NT..NL30 |
22143-54260 |
— | ||
|
22160
|
22160
22160-64010 Screw Sub-Assy, Overflow[05.1986 - 05.1988] 1NT..NL30 |
22160-64010 |
US $28.45 |
||
|
22160A
|
22160A
22160-64360
Screw Sub-Assy, Over Flow, No.2
[05.1986 - 05.1988] 1NT..NL30 |
22160-64360 |
— | ||
|
22193
|
22193
22193-54121
Ring, O(For Lever Connecting Pin)
[05.1986 - 03.1987] 1NT..NL30 |
22193-54121 |
— | ||
| replacement | |||||
|
22193
|
22193
22193-55031
Ring, O(For Lever Connecting Pin)
[05.1986 - 03.1987] 1NT..NL30 |
22193-55031 |
— | ||
|
22193
|
22193
22193-55031
Ring, O(For Lever Connecting Pin)
[03.1987 - 05.1988] 1NT..NL30 |
22193-55031 |
— | ||
|
22308B
|
22308B
22308-54120
Lever Sub-Assy, Control
[05.1986 - 05.1988] 1NT..NL30 |
22308-54120 |
— | ||
|
22321A
|
22321A
22321-55030
Rod, Push
[05.1986 - 05.1988] 1NT..NL30 |
22321-55030 |
— | ||
|
22327A
|
22327A
22327-55030
Spring(For Bellows)
[05.1986 - 03.1987] 1NT..NL30 |
22327-55030 |
— | ||
|
22338A
|
22338A
22338-54120
Pin, Lever Connecting
[05.1986 - 05.1988] 1NT..NL30 |
22338-54120 |
— | ||
|
22348A
|
22348A
22348-54121
Bushing, Guide
[05.1986 - 05.1988] 1NT..NL30 NO.1 |
22348-54121 |
— | ||
|
22348A
|
22348A
22348-54490 Bushing, Guide[05.1986 - 05.1988] 1NT..NL30 NO.3 |
22348-54490 |
US $18.47 |
||
|
22348A
|
22348A
22348-64360
Bushing, Guide
[05.1986 - 05.1988] 1NT..NL30 NO.2 |
22348-64360 |
— | ||
|
22348C
|
22348C
90099-01473
Washer(For Guide Bushing)
[05.1986 - 05.1988] 1NT..NL30 |
90099-01473 |
— | ||
|
22354A
|
22354A
22354-77050 Seal, Lead[05.1986 - 05.1988] 1NT..NL30 |
22354-77050 |
from US $0.28 |
||
|
22355A
|
22355A
22355-78030 Wire, Governor Housing Seal[05.1986 - 05.1988] 1NT..NL30 |
22355-78030 |
from US $1.31 |
||
|
22526A
|
22526A
22526-54120
Pin, Lever Support
[05.1986 - 05.1988] 1NT..NL30 |
22526-54120 |
— | ||
|
22542
|
22542
22542-54260 Diaphragm(For Boost Compensator)[05.1986 - 05.1988] 1NT..NL30 |
22542-54260 |
US $5.24 |
||
|
22546
|
22546
22546-55030
Spring, Boost Compensator
[05.1986 - 05.1988] 1NT..NL30 バネ定数＝２．２０，長さ＝１９．５ |
22546-55030 |
— | ||
|
22547
|
22547
22547-54265
Shim, Boost Compensator
[05.1986 - 05.1988] 1NT..NL30 厚さ＝１．３,T=1.3 |
22547-54265 |
— | ||
|
22547
|
22547
22547-54266
Shim, Boost Compensator
[05.1986 - 05.1988] 1NT..NL30 厚さ＝１．５,T=1.5 |
22547-54266 |
— | ||
|
22547
|
22547
22547-54490
Shim, Boost Compensator
[05.1986 - 05.1988] 1NT..NL30 厚さ＝１．１,T=1.1 |
22547-54490 |
— | ||
|
22547
|
22547
22547-54491
Shim, Boost Compensator
[05.1986 - 05.1988] 1NT..NL30 厚さ＝０．３,T=0.3 |
22547-54491 |
— | ||
|
22547
|
22547
22547-54492
Shim, Boost Compensator
[05.1986 - 05.1988] 1NT..NL30 厚さ＝０．５,T=0.5 |
22547-54492 |
— | ||
|
22547
|
22547
22547-54493
Shim, Boost Compensator
[05.1986 - 05.1988] 1NT..NL30 厚さ＝０．７,T=0.7 |
22547-54493 |
— | ||
|
22547
|
22547
22547-54494
Shim, Boost Compensator
[05.1986 - 05.1988] 1NT..NL30 厚さ＝０．９,T=0.9 |
22547-54494 |
— | ||
|
22656
|
22656
22656-54010
Clip, Timer
[05.1986 - 05.1988] 1NT..NL30 NO.1 |
22656-54010 |
— | ||
| replacement | |||||
|
22656
|
22656
22656-17840 Clip, Timer[05.1986 - 05.1988] 1NT..NL30 NO.1 |
22656-17840 |
US $0.92 |
||
|
22656
|
22656
22656-54490
Clip, Timer
[05.1986 - 05.1988] 1NT..NL30 NO.2 |
22656-54490 |
— | ||
|
22658A
|
22658A
22658-64510
Stopper, Timer Slide
[05.1986 - 05.1988] 1NT..NL30 |
22658-64510 |
— | ||
|
22658B
|
22658B
22193-54561
Ring, O(For Lever Connecting Pin)
[05.1986 - 05.1988] 1NT..NL30 |
22193-54561 |
— | ||
|
22703A
|
22703A
22703-64360
Cover Sub-Assy, Governor
[12.1986 - 01.1988] 1NT..NL30 |
22703-64360 |
— | ||
|
22703A
|
22703A
22703-64361
Cover Sub-Assy, Governor
[01.1988 - 05.1988] 1NT..NL30 |
22703-64361 |
— | ||
|
22703B
|
22703B
22703-55031
Cover, Governor
[05.1986 - 05.1988] 1NT..NL30 |
22703-55031 |
— | ||
|
22722
|
22722
22722-54120
Nut, Governor Shaft Rock
[05.1986 - 05.1988] 1NT..NL30 |
22722-54120 |
— | ||
|
22739A
|
22739A
22739-54120
Bolt, Governor Link Support
[05.1986 - 05.1988] 1NT..NL30 |
22739-54120 |
— | ||
|
22739B
|
22739B
22113-77090
Washer, Drain Screw
[08.1986 - 05.1988] 1NT..NL30 |
22113-77090 |
— | ||
|
22774
|
22774
22774-54010
Gasket, Governor Cover
[05.1986 - 05.1988] 1NT..NL30 |
22774-54010 |
— | ||
| replacement | |||||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[05.1986 - 05.1988] 1NT..NL30 |
22774-54270 |
from US $3.14 |
||
|
22775
|
22775
22775-77121 Nut, Rock[05.1986 - 05.1988] 1NT..NL30 |
22775-77121 |
US $3.20 |
||
|
22776
|
22776
22776-55030
Screw, Smoke Set Adjusting
[05.1986 - 05.1988] 1NT..NL30 |
22776-55030 |
— | ||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[05.1986 - 05.1988] 1NT..NL30 |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[05.1986 - 05.1988] 1NT..NL30 |
22193-54771 |
US $1.37 |
||
|
22777A
|
22777A
22777-64360
Cap, Rubber(For Altitude Compensating Timer Advancer)
[05.1986 - 05.1988] 1NT..NL30 |
22777-64360 |
— | ||
|
9009120611
|
9009120611
90091-20611
New Genuine Part
|
90091-20611 |
— | ||
|
9009300802
|
9009300802
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009904954
|
9009904954
90099-04954
BOLT
|
90099-04954 |
— | ||
|
9009905140
|
9009905140
90099-05140
New Genuine Part
|
90099-05140 |
— | ||
|
9009905156
|
9009905156
90099-05156
New Genuine Part
|
90099-05156 |
— | ||
|
9009905181
|
9009905181
90099-05181
New Genuine Part
|
90099-05181 |
— | ||
| replacement | |||||
|
9009905181
|
9009905181
90099-05252 NUT HEXAGON |
90099-05252 |
US $0.80 |
||
|
9009920604
|
9009920604
90099-20604
Nut, Wire Adjusting, No.1
|
90099-20604 |
— | ||
| replacement | |||||
|
9009920604
|
9009920604
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $2.72 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
