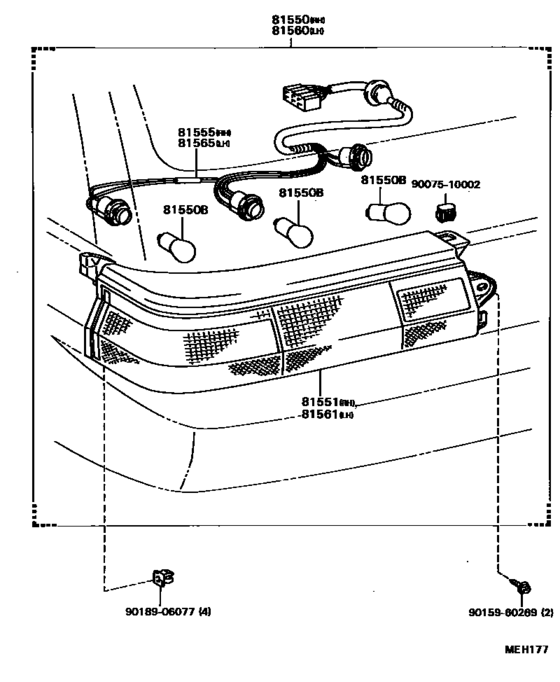

Rear Combination Lamp ([05.1986 - ] (8605- )5DS) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 02.1987
- To
- 05.1988
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-16360 Lamp Assy, Rear Combination, Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
81550-16360 |
US $297.02 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[05.1986 - 05.1988] EL3#,NL30 １２Ｖ ２３Ｗ,12V 23W(TURN & BACK) |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[05.1986 - 05.1988] EL3#,NL30 １２Ｖ ２３Ｗ,12V 23W(TURN & BACK) |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1986 - 05.1988] EL3#,NL30 １２Ｖ ２１／５Ｗ,12V 21/5W(TAIL,STOP & PARKING) |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-16360 Lens, Rear Combination Lamp, Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
81551-16360 |
US $241.70 |
||
|
81555
|
81555
81555-16340 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1986 - 05.1988] EL3#,NL30 |
81555-16340 |
US $59.26 |
||
|
81560
|
81560
81560-16380 Lamp Assy, Rear Combination, Lh[05.1986 - 05.1988] EL3#,NL30..5DS |
81560-16380 |
US $297.02 |
||
|
81561
|
81561
81561-16380 Lens, Rear Combination Lamp, Lh[05.1986 - 05.1988] EL3#,NL30..5DS |
81561-16380 |
US $241.70 |
||
|
81565
|
81565
81555-16340 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1986 - 05.1988] EL3#,NL30 |
81555-16340 |
US $59.26 |
||
|
9007510002
|
9007510002
90075-10002 New Genuine Part |
90075-10002 |
US $2.48 |
||
|
9015960269
|
9015960269
90159-60269 New Genuine Part |
90159-60269 |
US $1.60 |
||
| replacement | |||||
|
9015960269
|
9015960269
90159-60359 New Genuine Part |
90159-60359 |
US $2.08 |
||
|
9018906077
|
9018906077
90189-06077 GROMMET |
90189-06077 |
US $0.67 |
||
