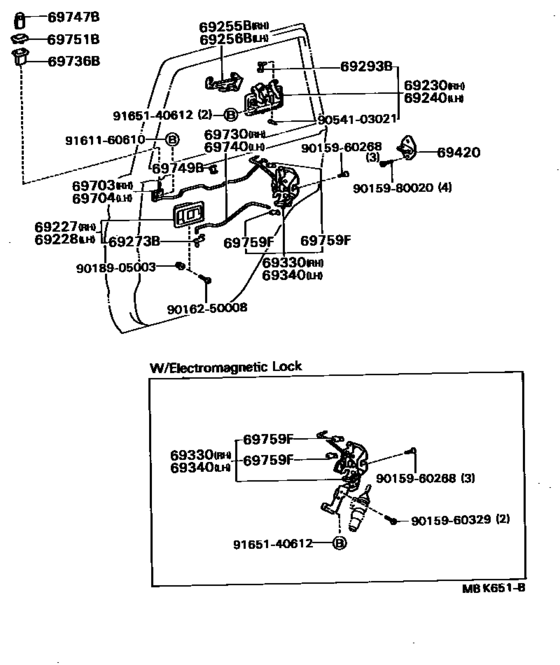

Rear Door Lock & Handle ([05.1986 - ] (8605- )) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 02.1987
- To
- 05.1988
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69227
|
69227
69207-10020-01 Handle Sub-Assy, Rear Door Inside, Rh[05.1986 - 05.1988] EL3#,NL30..5DS BLACK,NEW BLACK,TRIM2# |
69207-10020-01 |
US $19.80 |
||
|
69227
|
69227
69207-10020-05 Handle, Rear Door Inside, Rh[05.1986 - 05.1988] EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
69207-10020-05 |
US $19.80 |
||
|
69227
|
69227
69207-10020-14 Handle Sub-Assy, Rear Door Inside, Rh[05.1986 - 05.1988] EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
69207-10020-14 |
US $19.80 |
||
| replacement | |||||
|
69227
|
69227
69207-10020-01 Handle Sub-Assy, Rear Door Inside, Rh[05.1986 - 05.1988] EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
69207-10020-01 |
US $19.80 |
||
|
69227
|
69227
69207-10040-01 Handle Sub-Assy, Rear Door Inside, Rh[05.1986 - 05.1988] EL3#,NL30..5DS COLD SPEC,BLACK,NEW BLACK,TRIM2# |
69207-10040-01 |
US $20.82 |
||
|
69227
|
69227
69207-10040-05 Handle, Rear Door Inside, Rh[05.1986 - 05.1988] EL3#,NL30..5DS COLD SPEC,BEIGE,DARK BEIGE,TRIM4# |
69207-10040-05 |
US $20.82 |
||
| replacement | |||||
|
69227
|
69227
69207-10020-05 Handle, Rear Door Inside, Rh[05.1986 - 05.1988] EL3#,NL30..5DS COLD SPEC,BEIGE,DARK BEIGE,TRIM4# |
69207-10020-05 |
US $19.80 |
||
|
69227
|
69227
69207-10040-14 Handle Sub-Assy, Rear Door Inside, Rh[05.1986 - 05.1988] EL3#,NL30..5DS COLD SPEC,BLUE,BLUE,TRIM8# |
69207-10040-14 |
US $20.82 |
||
|
69228
|
69228
69208-10020-01 Handle Sub-Assy, Rear Door Inside, Lh[05.1986 - 05.1988] EL3#,NL30..5DS BLACK,NEW BLACK,TRIM2# |
69208-10020-01 |
US $19.80 |
||
|
69228
|
69228
69208-10020-05 Handle, Rear Door Inside, Lh[05.1986 - 05.1988] EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
69208-10020-05 |
US $19.80 |
||
|
69228
|
69228
69208-10020-14 Handle Sub-Assy, Rear Door Inside, Lh[05.1986 - 05.1988] EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
69208-10020-14 |
US $19.80 |
||
| replacement | |||||
|
69228
|
69228
69208-10020-01 Handle Sub-Assy, Rear Door Inside, Lh[05.1986 - 05.1988] EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
69208-10020-01 |
US $19.80 |
||
|
69228
|
69228
69208-10040-01 Handle Sub-Assy, Rear Door Inside, Lh[05.1986 - 05.1988] EL3#,NL30..5DS COLD SPEC,BLACK,NEW BLACK,TRIM2# |
69208-10040-01 |
US $20.82 |
||
|
69228
|
69228
69208-10040-05 Handle, Rear Door Inside, Lh[05.1986 - 05.1988] EL3#,NL30..5DS COLD SPEC,BEIGE,DARK BEIGE,TRIM4# |
69208-10040-05 |
US $20.82 |
||
| replacement | |||||
|
69228
|
69228
69208-10020-05 Handle, Rear Door Inside, Lh[05.1986 - 05.1988] EL3#,NL30..5DS COLD SPEC,BEIGE,DARK BEIGE,TRIM4# |
69208-10020-05 |
US $19.80 |
||
|
69228
|
69228
69208-10040-14 Handle Sub-Assy, Rear Door Inside, Lh[05.1986 - 05.1988] EL3#,NL30..5DS COLD SPEC,BLUE,BLUE,TRIM8# |
69208-10040-14 |
US $20.82 |
||
|
69230
|
69230
69230-16030 Handle Assy, Rear Door Outside, Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
69230-16030 |
US $47.47 |
||
|
69240
|
69240
69240-16030 Handle Assy, Rear Door Outside, Lh[05.1986 - 05.1988] EL3#,NL30..5DS |
69240-16030 |
US $47.47 |
||
|
69255B
|
69255B
69255-16010 Protector, Door Outside Handle, Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
69255-16010 |
US $19.95 |
||
|
69256B
|
69256B
69256-16010 Protector, Door Outside Handle, Lh[05.1986 - 05.1988] EL3#,NL30..5DS |
69256-16010 |
US $19.95 |
||
|
69273B
|
69273B
69759-20060 Snap(For Rear Door Inside Handle)[05.1986 - 05.1988] EL3#,NL30..5DS RH |
69759-20060 |
US $3.84 |
||
|
69273B
|
69273B
69759-20070 Snap(For Rear Door Inside Handle)[05.1986 - 05.1988] EL3#,NL30..5DS LH |
69759-20070 |
from US $2.24 |
||
|
69293B
|
69293B
69293-12030 Snap, Front Door Outside Handle[05.1986 - 05.1988] EL3#,NL30..5DS RH |
69293-12030 |
from US $2.09 |
||
|
69293B
|
69293B
69293-12040 Snap, Front Door Outside Handle[05.1986 - 05.1988] EL3#,NL30..5DS LH |
69293-12040 |
from US $2 |
||
|
69330
|
69330
69330-16091 Lock Assy, Rear Door, Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
69330-16091 |
US $119.39 |
||
| replacement | |||||
|
69330
|
69330
69330-16101 Lock Assy, Rear Door, Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
69330-16101 |
US $132.50 |
||
|
69330
|
69330
69330-16101 Lock Assy, Rear Door, Rh[05.1986 - 05.1988] EL31,NL30..5DS..ZX W/*EL |
69330-16101 |
US $132.50 |
||
|
69340
|
69340
69340-16091 Lock Assy, Rear Door, Lh[05.1986 - 05.1988] EL3#,NL30..5DS |
69340-16091 |
US $119.39 |
||
| replacement | |||||
|
69340
|
69340
69340-16101 Lock Assy, Rear Door, Lh[05.1986 - 05.1988] EL3#,NL30..5DS |
69340-16101 |
US $132.50 |
||
|
69340
|
69340
69340-16101 Lock Assy, Rear Door, Lh[05.1986 - 05.1988] EL31,NL30..5DS..ZX W/*EL |
69340-16101 |
US $132.50 |
||
|
69420
|
69420
69410-87001 Plate Assy, Front Door Lock Striker[05.1986 - 05.1988] EL3#,NL30..5DS |
69410-87001 |
US $11.36 |
||
| replacement | |||||
|
69420
|
69420
69410-AA020 Plate Assy, Front Door Lock Striker[05.1986 - 05.1988] EL3#,NL30..5DS |
69410-AA020 |
US $37.29 |
||
|
69703
|
69703
69770-16050 Link Sub-Assy, Rear Door Locking Control, Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
69770-16050 |
US $19.66 |
||
|
69704
|
69704
69780-16050 Link Sub-Assy, Rear Door Locking Control, Lh[05.1986 - 05.1988] EL3#,NL30..5DS |
69780-16050 |
US $19.66 |
||
|
69730
|
69730
69713-16030 Link, Rear Door Lock Remote Control, Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
69713-16030 |
US $8.01 |
||
|
69736B
|
69736B
69736-12030
Guide, Front Door Lock Link
[05.1986 - 05.1988] EL3#,NL30..5DS |
69736-12030 |
— | ||
|
69740
|
69740
69714-16030 Link, Rear Door Lock Remote Control, Lh[05.1986 - 05.1988] EL3#,NL30..5DS |
69714-16030 |
US $8.01 |
||
|
69747B
|
69747B
69741-90K00-01 Knob, Front Door Lock Control[05.1986 - 05.1988] EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
69741-90K00-01 |
US $4.80 |
||
| replacement | |||||
|
69747B
|
69747B
69741-90K00-C0 Knob, Front Door Lock Control[05.1986 - 05.1988] EL3#,NL30..5DS BLACK,BLACK,TRIM2# |
69741-90K00-C0 |
US $3.52 |
||
|
69749B
|
69749B
69749-12040 Clamp, Front Door Lock Link[05.1986 - 05.1988] EL3#,NL30..5DS |
69749-12040 |
US $4.80 |
||
|
69751B
|
69751B
69751-20060-11 Holder, Door Locking(For Front Door)[05.1986 - 05.1988] EL3#,NL30..5DS..(LIM,ZX) BLACK,BLACK,TRIM2# |
69751-20060-11 |
US $5.24 |
||
| replacement | |||||
|
69751B
|
69751B
69751-12030-01 Holder, Front Door Lock Control Knob[05.1986 - 05.1988] EL3#,NL30..5DS..(LIM,ZX) BLACK,BLACK,TRIM2# |
69751-12030-01 |
US $4.16 |
||
|
69751B
|
69751B
69751-20060-24 Holder, Front Door Locking Button Collar[05.1986 - 05.1988] EL3#,NL30..5DS..(LIM,ZX) BLUE,BLUE,TRIM8# |
69751-20060-24 |
US $5.24 |
||
| replacement | |||||
|
69751B
|
69751B
69751-20060-04 Holder, Door Locking Button Collar(For Front Door)[05.1986 - 05.1988] EL3#,NL30..5DS..(LIM,ZX) BLUE,BLUE,TRIM8# |
69751-20060-04 |
US $5.24 |
||
|
69751B
|
69751B
69751-20060-25 Holder, Door Locking Button Collar(For Front Door)[05.1986 - 05.1988] EL3#,NL30..5DS..(LIM,ZX) BEIGE,DARK BEIGE,TRIM4# |
69751-20060-25 |
US $5.24 |
||
| replacement | |||||
|
69751B
|
69751B
69751-12030-05 Holder, Front Door Lock Control Knob[05.1986 - 05.1988] EL3#,NL30..5DS..(LIM,ZX) BEIGE,DARK BEIGE,TRIM4# |
69751-12030-05 |
US $4.16 |
||
|
69759F
|
69759F
69759-20040 Snap, Auxiliary Catch Release Lever Control Link[05.1986 - 05.1988] EL3#,NL30..5DS LH |
69759-20040 |
US $4.32 |
||
|
69759F
|
69759F
69759-20050 Snap(For Rear Door Lock)[05.1986 - 05.1988] EL3#,NL30..5DS RH |
69759-20050 |
US $2.62 |
||
|
9015960268
|
9015960268
90159-60268 Screw |
90159-60268 |
US $2.08 |
||
|
9015960329
|
9015960329
90159-60329 New Genuine Part |
90159-60329 |
US $1.60 |
||
|
9015980020
|
9015980020
90159-80020
SCREW
|
90159-80020 |
— | ||
| replacement | |||||
|
9015980020
|
9015980020
90151-80016 SCREW CROSSRECESS |
90151-80016 |
US $2.08 |
||
|
9016250008
|
9016250008
90162-50008 SCREW |
90162-50008 |
US $1.12 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
|
9054103021
|
9054103021
90541-03021 Cushion(For Front Door Outside Handle) |
90541-03021 |
US $4.96 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
