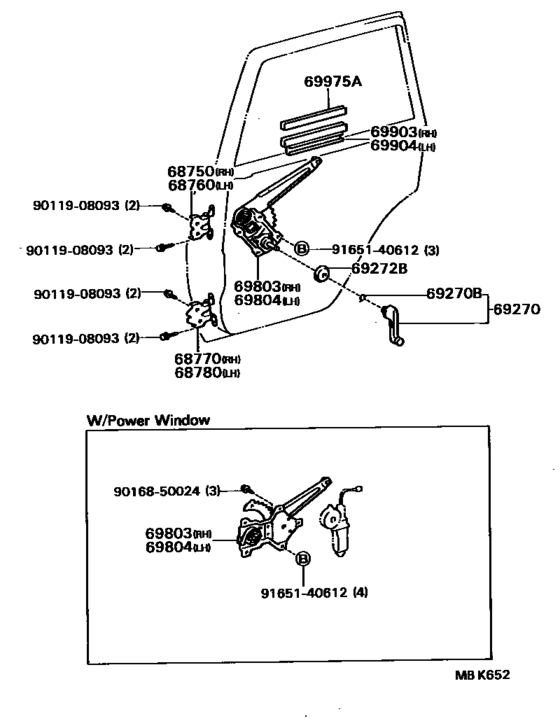

Rear Door Window Regulator & Hinge ([05.1986 - ] (8605- )) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 02.1987
- To
- 05.1988
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-16010 Hinge Assy, Rear Door, Upper Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
68750-16010 |
US $40.91 |
||
| replacement | |||||
|
68750
|
68750
68750-16020 Hinge Assy, Rear Door, Upper RhREAR DOOR, UPPER RH [05.1986 - 05.1988] EL3#,NL30..5DS |
68750-16020 |
US $41.35 |
||
|
68760
|
68760
68760-16010 Hinge Assy, Rear Door, Upper Lh[05.1986 - 05.1988] EL3#,NL30..5DS |
68760-16010 |
US $41.35 |
||
| replacement | |||||
|
68760
|
68760
68760-16020 Hinge Assy, Rear Door, Upper LhREAR DOOR, UPPER LH [05.1986 - 05.1988] EL3#,NL30..5DS |
68760-16020 |
US $41.35 |
||
|
68770
|
68770
68770-16010 Hinge Assy, Rear Door, Lower Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
68770-16010 |
US $41.35 |
||
|
68780
|
68780
68780-16010 Hinge Assy, Rear Door, Lower Lh[05.1986 - 05.1988] EL3#,NL30..5DS |
68780-16010 |
US $41.35 |
||
| replacement | |||||
|
68780
|
68780
68780-12030
Hinge Assy, Rear Door, Lower Lh
[05.1986 - 05.1988] EL3#,NL30..5DS |
68780-12030 |
— | ||
|
69270
|
69270
69260-10040-11 Handle Assy, Front Door Window Regulator[05.1986 - 05.1988] EL3#,NL30..5DS BLACK,NEW BLACK,TRIM2# |
69260-10040-11 |
US $21.69 |
||
| replacement | |||||
|
69270
|
69270
69260-16010-22 Handle Assy, Door Window Regulator (Black)[05.1986 - 05.1988] EL3#,NL30..5DS BLACK,NEW BLACK,TRIM2# |
69260-16010-22 |
from US $13.75 |
||
|
69270
|
69270
69260-10040-50 Handle Assy, Front Door Window Regulator[05.1986 - 05.1988] EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
69260-10040-50 |
US $21.69 |
||
| replacement | |||||
|
69270
|
69270
69260-10040-58 Handle Assy, Front Door Window Regulator[05.1986 - 05.1988] EL3#,NL30..5DS BLUE,BLUE,TRIM8# |
69260-10040-58 |
US $21.14 |
||
|
69270
|
69270
69260-10040-55 Handle Assy, Front Door Window Regulator[05.1986 - 05.1988] EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
69260-10040-55 |
US $21.69 |
||
| replacement | |||||
|
69270
|
69270
69260-10040-C0 Handle Assy, Front Door Window Regulator (BLACK)[05.1986 - 05.1988] EL3#,NL30..5DS BEIGE,DARK BEIGE,TRIM4# |
69260-10040-C0 |
US $15.35 |
||
|
69270B
|
69270B
90520-01002
Ring, Shaft Snap(For Vent Window Control)
[05.1986 - 05.1988] EL3#,NL30..5DS |
90520-01002 |
— | ||
| replacement | |||||
|
69270B
|
69270B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[05.1986 - 05.1988] EL3#,NL30..5DS |
90520-01274 |
from US $1.01 |
||
|
69272B
|
69272B
69268-16010
Plate, Window Regulator Handle
[05.1986 - 05.1988] EL3#,NL30..5DS |
69268-16010 |
— | ||
| replacement | |||||
|
69272B
|
69272B
69285-22010-08 Escutcheon, Window Regulator Handle[05.1986 - 05.1988] EL3#,NL30..5DS |
69285-22010-08 |
from US $1.85 |
||
|
69803
|
69803
69803-16010 Regulator Sub-Assy, Rear Door Window, Rh[05.1986 - 05.1988] EL31,NL30..5DS..ZX W/POWER WINDOW |
69803-16010 |
US $61.88 |
||
|
69803
|
69803
69830-16030 Regulator Sub-Assy, Rear Door Window, Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
69830-16030 |
US $61.88 |
||
|
69804
|
69804
69804-16010 Regulator Sub-Assy, Rear Door Window, Lh[05.1986 - 05.1988] EL31,NL30..5DS..ZX W/POWER WINDOW |
69804-16010 |
US $61.88 |
||
|
69804
|
69804
69840-16030 Regulator Sub-Assy, Rear Door Window, Lh[05.1986 - 05.1988] EL3#,NL30..5DS |
69840-16030 |
US $61.88 |
||
|
69903
|
69903
69905-16030 Channel Sub-Assy, Rear Door Glass, Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
69905-16030 |
US $11.50 |
||
|
69904
|
69904
69905-16030 Channel Sub-Assy, Rear Door Glass, Rh[05.1986 - 05.1988] EL3#,NL30..5DS |
69905-16030 |
US $11.50 |
||
|
69975A
|
69975A
69975-16010 Filler, Rear Door Glass Channel[05.1986 - 05.1988] EL3#,NL30..5DS |
69975-16010 |
US $3.93 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9016850024
|
9016850024
90168-50024
New Genuine Part
|
90168-50024 |
— | ||
| replacement | |||||
|
9016850024
|
9016850024
90168-50013 SCREW |
90168-50013 |
US $2.72 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
