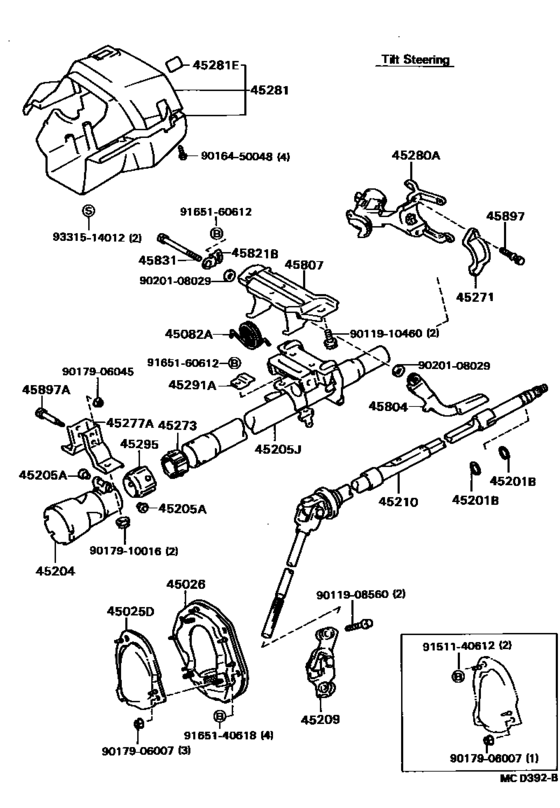

Steering Column & Shaft ([05.1986 - ] (8605- )GP,LIM,SR,ZX) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 02.1987
- To
- 05.1988
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-16091 Cover Sub-Assy, Steering Column Hole, No.1[09.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX W/POWER STEERING |
45025-16091 |
US $24.46 |
||
|
45026
|
45026
45026-16032 Cover Sub-Assy, Steering Column Hole, No.2[09.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX W/POWER STEERING |
45026-16032 |
US $32.61 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[05.1986 - 05.1988] EL3#,NL30 厚さ＝１．２０,T=1.2 |
90520-17042 |
from US $0.86 |
||
|
45201B
|
45201B
90520-17196 Ring, Shaft Snap(For Steering Main Shaft)[05.1986 - 05.1988] EL3#,NL30 厚さ＝１．３５−１．４５,T=1.4 |
90520-17196 |
US $2.97 |
||
|
45209
|
45209
45209-16020 Yoke Sub-Assy, Steering Sliding[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX W/POWER STEERING |
45209-16020 |
US $110.66 |
||
|
45210
|
45210
45210-16100 Shaft Assy, Steering Main[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX W/POWER STEERING |
45210-16100 |
US $224.22 |
||
|
45271
|
45271
45271-16020 Clamp, Steering Column, Upper[05.1986 - 05.1988] EL3#,NL30 |
45271-16020 |
US $8.32 |
||
|
45273
|
45273
45273-16010 Bush, Steering Main Shaft[05.1986 - 05.1988] EL3#,NL30 |
45273-16010 |
from US $6.94 |
||
|
45280A
|
45280A
45280-16040 Bracket Assy, Steering Column, Upper[05.1986 - 05.1988] EL3#,NL30 |
45280-16040 |
US $215.49 |
||
|
45281
|
45281
45286-16905-01 Housing, Steering Column[05.1986 - 05.1988] EL3#,NL30..GL,GP,SR,TX,ZX BLACK,NEW BLACK,TRIM2# |
45286-16905-01 |
US $61.01 |
||
|
45281
|
45281
45286-16905-04 Housing, Steering Column[05.1986 - 05.1988] EL3#,NL30..CD,GL,GP,SR,TX,ZX BLUE,BLUE,TRIM8# |
45286-16905-04 |
US $61.01 |
||
| replacement | |||||
|
45281
|
45281
45286-16905-01 Housing, Steering Column[05.1986 - 05.1988] EL3#,NL30..CD,GL,GP,SR,TX,ZX BLUE,BLUE,TRIM8# |
45286-16905-01 |
US $61.01 |
||
|
45281
|
45281
45286-16905-05 Housing, Steering Column[05.1986 - 05.1988] EL30,NL30..GL,TX,ZX BEIGE,DARK BEIGE,TRIM4# |
45286-16905-05 |
US $61.01 |
||
| replacement | |||||
|
45281
|
45281
45286-16905-01 Housing, Steering Column[05.1986 - 05.1988] EL30,NL30..GL,TX,ZX BEIGE,DARK BEIGE,TRIM4# |
45286-16905-01 |
US $61.01 |
||
|
45281E
|
45281E
45283-12010 Plate, Safety Caution[05.1986 - 05.1988] EL3#,NL30 |
45283-12010 |
US $3.06 |
||
|
45295
|
45295
45295-16010 Bush, Steering Column Tube[05.1986 - 05.1988] EL3#,NL30 |
45295-16010 |
US $8.59 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[05.1986 - 05.1988] EL3#,NL30 |
45897-12020 |
from US $2.81 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9011910460
|
9011910460
90119-10460 New Genuine Part |
90119-10460 |
US $3.35 |
||
| replacement | |||||
|
9011910460
|
9011910460
91661-61025 New Genuine Part |
91661-61025 |
US $1.14 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9020108029
|
9020108029
90201-08029 Washer, Plate(For Steering Tilt Lever) |
90201-08029 |
US $3.35 |
||
|
9151140612
|
9151140612
91511-40612 New Genuine Part |
91511-40612 |
US $2.91 |
||
| replacement | |||||
|
9151140612
|
9151140612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9165140618
|
9165140618
91651-40618 New Genuine Part |
91651-40618 |
US $2.80 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
