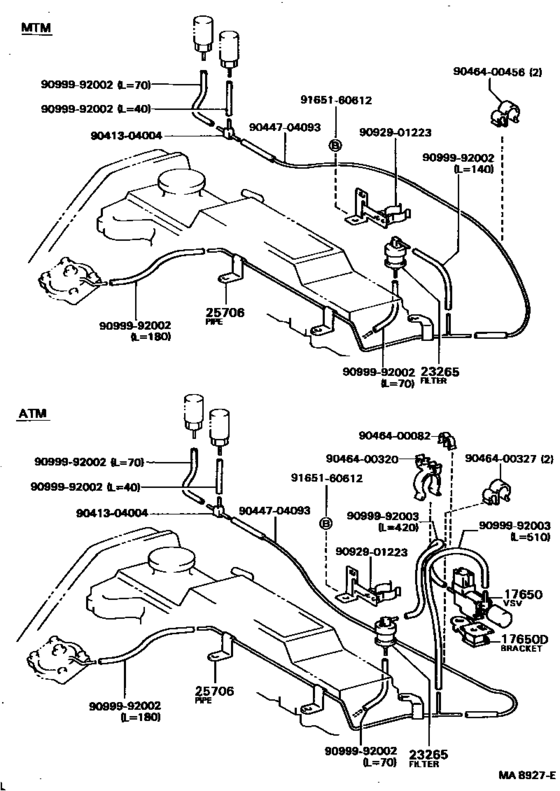

Vacuum Piping ([05.1986 - ] (8605- )1NT) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 02.1987
- To
- 05.1988
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650
|
17650
90910-12043 Valve Assy, Vacuum Switching[09.1986 - 05.1988] 1NT..NL30..4FC |
90910-12043 |
US $68.82 |
||
|
17650D
|
17650D
25861-55010 Bracket, Vacuum Switching Valve[09.1986 - 05.1988] 1NT..NL30..4FC |
25861-55010 |
US $20.09 |
||
|
23265
|
23265
90917-11009
Filter, Gas, No.1
[05.1986 - 05.1988] 1NT..NL30 |
90917-11009 |
— | ||
|
25706
|
25706
25706-55010 Pipe Sub-Assy, Vacuum Transmitting, No.1[05.1986 - 05.1988] 1NT..NL30 |
25706-55010 |
US $80.08 |
||
|
9041304004
|
9041304004
90413-04004 Way, 3(For Canister) |
90413-04004 |
US $2.62 |
||
|
9044704093
|
9044704093
90447-04093 New Genuine Part |
90447-04093 |
US $6.99 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400320
|
9046400320
90464-00320 New Genuine Part |
90464-00320 |
US $1.09 |
||
|
9046400327
|
9046400327
90464-00327 New Genuine Part |
90464-00327 |
US $6.99 |
||
|
9046400456
|
9046400456
90464-00456 New Genuine Part |
90464-00456 |
US $3.20 |
||
|
9092901223
|
9092901223
90929-01223 New Genuine Part |
90929-01223 |
US $3.64 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
