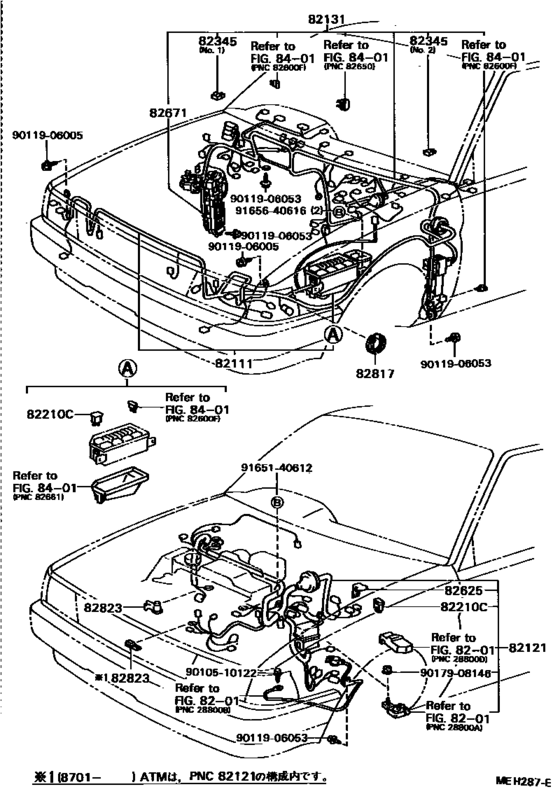

Wiring & Clamp ([05.1986 - ] (8605- )NL30) Diagram Toyota COROLLA
- Year
- 1987 - 1988
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 02.1987
- To
- 05.1988
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-16590 Wire, Engine Room Main[09.1986 - 05.1988] NL30..4FC |
82111-16590 |
US $709.07 |
||
|
82121
|
82121
82121-16261 Wire, Engine[09.1986 - 05.1988] NL30..4FC |
82121-16261 |
US $713.44 |
||
|
82131
|
82131
82131-1G160 Wire, Cowl[02.1987 - 05.1988] NL30..ZX |
82131-1G160 |
US $1,141.50 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[05.1986 - 05.1988] EL3#,NL30 ３０Ａ，メス端子,30A |
90982-08188 |
US $11.36 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[05.1986 - 05.1988] NL30 ８０Ａ，オス端子,80A |
90982-08203 |
from US $7.36 |
||
|
82345
|
82345
82345-12050 Diode[11.1986 - 05.1988] EL31..TBO NO.1,2P CONNECTER; NL30..4FC NO.1,2P CONNECTER |
82345-12050 |
US $12.64 |
||
|
82345
|
82345
82345-20060 Diode[11.1986 - 05.1988] EL3#,NL30..GP,LIM,SR,ZX NO.2 |
82345-20060 |
US $11.01 |
||
|
82345
|
82345
82345-32020 Diode[11.1986 - 05.1988] EL31..TBO NO.1,3P CONNECTER; NL30..4FC NO.1,3P CONNECTER |
82345-32020 |
US $13.45 |
||
|
82625
|
82625
82625-12030 Terminal, Fusible Link[01.1987 - 05.1988] NL30..4FC |
82625-12030 |
US $15.87 |
||
|
82671
|
82671
82671-16050 Block, Junction[05.1986 - 05.1988] EL3#,NL30 |
82671-16050 |
US $176.18 |
||
| replacement | |||||
|
82671
|
82671
82660-12130
Block Assy, Relay, Cowl Side
[05.1986 - 05.1988] EL3#,NL30 |
82660-12130 |
— | ||
|
82817
|
82817
82817-22280 Protector, Wiring Harness, No.1[05.1986 - 05.1988] EL3#,NL30 |
82817-22280 |
US $4.08 |
||
|
82823
|
82823
82823-20050 Cap, Terminal, No.1[08.1986 - 05.1988] EL3#,NL30 ALTERNATOR |
82823-20050 |
US $3.20 |
||
|
9010510122
|
9010510122
90105-10122 New Genuine Part |
90105-10122 |
US $1.22 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
