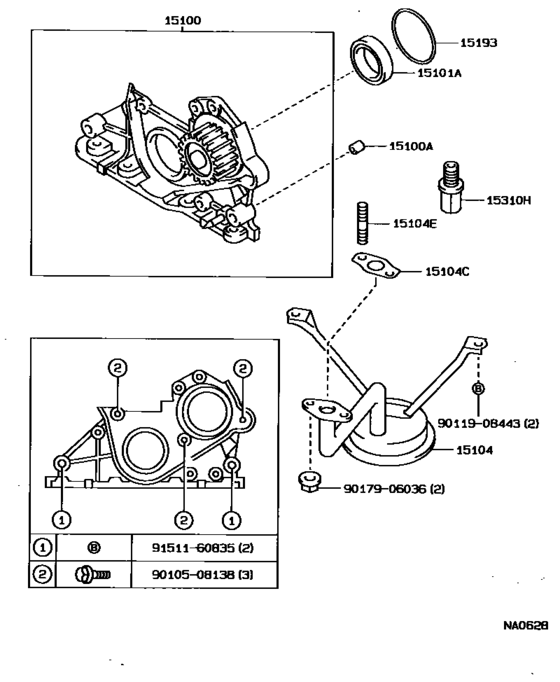

Engine Oil Pump ([05.1988 - ] (8805- )1NT) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-55010
Pump Assy, Oil
[05.1988 - 09.1990] 1NT..NL30 |
15100-55010 |
— | ||
| replacement | |||||
|
15100
|
15100
15100-55011 Pump Assy, Oil[05.1988 - 09.1990] 1NT..NL30 |
15100-55011 |
US $218.40 |
||
|
15100A
|
15100A
90253-11021 Pin, Ring[05.1988 - 09.1990] 1NT..NL30 |
90253-11021 |
from US $1.50 |
||
|
15101A
|
15101A
90311-35017 Seal, Oil(For Camshaft Setting)[05.1988 - 02.1990] 2E,3E#..EL3#; 1NT..NL30 |
90311-35017 |
from US $4.64 |
||
|
15104
|
15104
15104-55010 Strainer Sub-Assy, Oil[05.1988 - 09.1990] 1NT..NL30 |
15104-55010 |
US $63.48 |
||
|
15104C
|
15104C
15149-55010 Gasket(For Oil Strainer)[05.1988 - 09.1990] 1NT..NL30 |
15149-55010 |
US $3.64 |
||
|
15104E
|
15104E
90116-06032 Bolt, Stud(For Oil Strainer)[05.1988 - 09.1990] 1NT..NL30 |
90116-06032 |
US $1.89 |
||
|
15193
|
15193
96721-24067 Gasket, Oil Pump[05.1988 - 09.1990] 1NT..NL30 |
96721-24067 |
US $1.40 |
||
|
15310H
|
15310H
15310-55010 Regulator Assy, Oil[05.1988 - 09.1990] 1NT..NL30 |
15310-55010 |
US $30.87 |
||
|
9010508138
|
9010508138
90105-08138 New Genuine Part |
90105-08138 |
US $1.89 |
||
|
9011908443
|
9011908443
90119-08443
New Genuine Part
|
90119-08443 |
— | ||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9151160835
|
9151160835
91511-60835
Bolt(For Cylinder Head Set Sub)
|
91511-60835 |
— | ||
| replacement | |||||
|
9151160835
|
9151160835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
US $2.24 |
||
