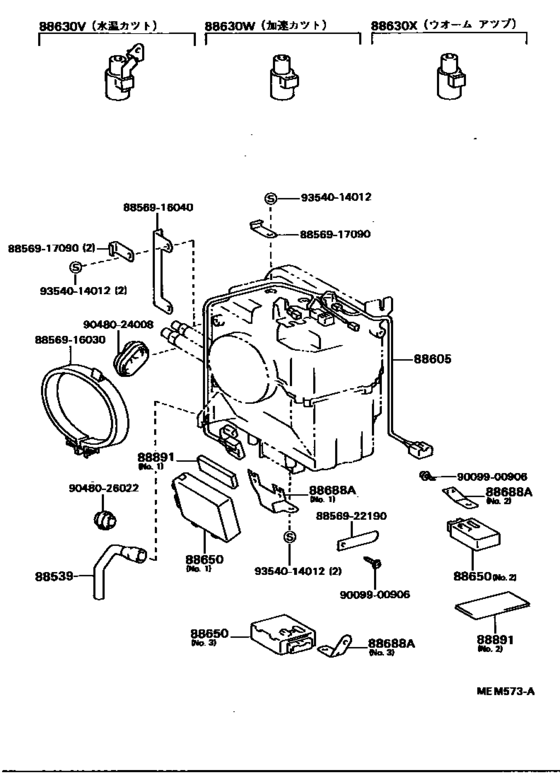

Heating & Air Conditioning - Cooler Unit ([05.1988 - ] (8805- )NL30) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88539
|
88539
88539-16030
Hose, Cooler Unit Drain, No.1
[05.1988 - 09.1990] EL31..TBO; EL30..GL,TX; EL31..AR,SRI; NL30..GL,TX; EL31,NL30..ZX; EL30..CD,LIM |
88539-16030 |
— | ||
|
88605
|
88605
88605-16700
Harness Sub-Assy, Cooler Wiring, No.1
[05.1988 - 09.1990] NL30..ZX |
88605-16700 |
— | ||
|
88605
|
88605
88605-16710
Harness Sub-Assy, Cooler Wiring, No.1
[05.1988 - 09.1990] NL30..ZX *AAC |
88605-16710 |
— | ||
|
88630V
|
88630V
88630-14030 Relay Assy, Cooler[05.1988 - 09.1990] NL30..GL,TX; NL30..ZX |
88630-14030 |
from US $16.25 |
||
|
88630W
|
88630W
88630-95702
Relay, Heater Radiator
[05.1988 - 09.1990] EL31..5F..ZX; NL30..GL,TX; EL31..5F..(AR,SRI); EL30..3FC..LIM; EL30..3FC..(GL,TX); EL31..4FC..(AR,SRI); NL30..ZX;EL31..4FC..ZX |
88630-95702 |
— | ||
|
88630X
|
88630X
88630-16070
Relay Assy, Cooler
[05.1988 - 09.1990] NL30..ZX |
88630-16070 |
— | ||
|
88650
|
88650
88650-16240
Amplifier Assy, Cooler Stabilizer
[05.1988 - 09.1990] NL30..GL,TX NO.1,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ); NL30..ZX NO.1,ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
88650-16240 |
— | ||
|
88650
|
88650
88650-16281
Amplifier Assy, Cooler Stabilizer
[05.1988 - 09.1990] NL30 NO.2 |
88650-16281 |
— | ||
|
88650
|
88650
88650-16290
Amplifier Assy, Cooler Stabilizer
[05.1988 - 09.1990] EL31,NL30..AR,GP,SRI,ZX NO.3 |
88650-16290 |
— | ||
|
88688A
|
88688A
88688-10100
Bracket, Cooler Stabilizer Amplifier
[05.1988 - 09.1990] EL31..TBO ＮＯ．３; EL31..AR,SRI ＮＯ．３; EL31,NL30..ZX ＮＯ．３ |
88688-10100 |
— | ||
|
88688A
|
88688A
88688-16260
Bracket, Cooler Stabilizer Amplifier
[05.1988 - 09.1990] EL30..GL,TX ＮＯ．１; EL31..AR ＮＯ．１; EL31,NL30..ZX ＮＯ．１; EL30..CD,LIM ＮＯ．１; EL31..EFI ｱﾘ(PS),ＮＯ．１; EL31..TBO ｱﾘ(PS),ＮＯ．１; NL30..GL,TX ｱﾘ(PS),ＮＯ．１ |
88688-16260 |
— | ||
|
88688A
|
88688A
88688-16280
Bracket, Cooler Stabilizer Amplifier
[05.1988 - 09.1990] EL31..TBO ＮＯ．２; NL30..GL,TX ＮＯ．２; EL30..3FC..LIM ＮＯ．２; EL30..3FC..(GL,TX) ＮＯ．２; EL31..4FC..(AR,SRI) ＮＯ．２; NL30..ZX;EL31..4FC..ZX ＮＯ．２ |
88688-16280 |
— | ||
|
88891
|
88891
88578-10090
Packing (For Cooler)
[05.1988 - 09.1990] EL31..TBO ＮＯ．１; EL30..GL,TX ＮＯ．１; EL31..AR,SRI ＮＯ．１; NL30..GL,TX ＮＯ．１; EL31,NL30..ZX ＮＯ．１; EL30..CD,LIM ＮＯ．１ |
88578-10090 |
— | ||
|
88891
|
88891
88578-16110
Packing (For Cooler)
[05.1988 - 09.1990] EL31..TBO ＮＯ．２; EL31..5F..ZX ＮＯ．２; EL31..5F..(AR,SRI) ＮＯ．２; EL30..3FC..LIM ＮＯ．２; EL30..3FC..(GL,TX) ＮＯ．２; NL30..GL,TX;EL31..4FC..(AR,SRI) ＮＯ．２; NL30..ZX;EL31..4FC..ZX ＮＯ．２ |
88578-16110 |
— | ||
|
8856916030
|
8856916030
88569-16030
Clamp, Cooler Unit
|
88569-16030 |
— | ||
|
8856916040
|
8856916040
88569-16040
Clamp (for Cooler Relay)
|
88569-16040 |
— | ||
|
8856917090
|
8856917090
88569-17090
Clamp (for Cooler Relay)
|
88569-17090 |
— | ||
|
8856922190
|
8856922190
88569-22190
Clamp (for Cooler Relay)
|
88569-22190 |
— | ||
|
9009900906
|
9009900906
90099-00906
New Genuine Part
|
90099-00906 |
— | ||
|
9048024008
|
9048024008
90480-24008
Grommet (For Cooler Unit)
|
90480-24008 |
— | ||
| replacement | |||||
|
9048024008
|
9048024008
90099-32137 Grommet (For Cooler Unit) |
90099-32137 |
US $5.39 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
|
9354014012
|
9354014012
93540-14012 Screw |
93540-14012 |
from US $1.92 |
||
