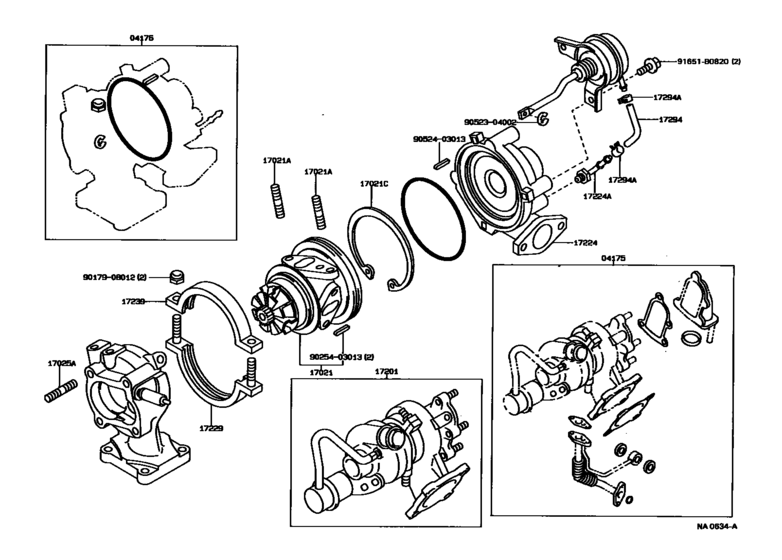

Manifold ([05.1988 - ] (8805- )1NT) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-55010 Gasket Kit, Turbocharger[05.1988 - 09.1990] 1NT..NL30 |
04175-55010 |
US $55.04 |
||
|
04176
|
04176
04176-70010
Seal Kit, Turbocharger
[05.1988 - 01.1990] 3ETE..EL31; 1NT..NL30 |
04176-70010 |
— | ||
| replacement | |||||
|
04176
|
04176
04176-70011
Seal Kit, Turbocharger
[05.1988 - 01.1990] 3ETE..EL31; 1NT..NL30 |
04176-70011 |
— | ||
|
04176
|
04176
04176-70011
Seal Kit, Turbocharger
[01.1990 - 09.1990] 3ETE..EL31; 1NT..NL30 |
04176-70011 |
— | ||
|
17021
|
17021
17021-55020 Housing Sub-Assy, Bearing[05.1988 - 09.1990] 1NT..NL30 |
17021-55020 |
US $1,645.28 |
||
|
17021A
|
17021A
90116-08158 Bolt, Stud(For Bearing Housing)[05.1988 - 09.1990] 3ETE..EL31; 1NT..NL30 |
90116-08158 |
US $4.96 |
||
|
17021C
|
17021C
90521-99035 Ring, Hole Snap(For Bearing Housing)[05.1988 - 09.1990] 3ETE..EL31; 1NT..NL30 |
90521-99035 |
US $4.22 |
||
|
17025A
|
17025A
90116-08200 Bolt, Stud(For Bearing Housing)[05.1988 - 09.1990] 3ETE..EL31; 1NT..NL30 |
90116-08200 |
US $3.20 |
||
|
17201
|
17201
17201-55020 Turbocharger Sub-Assy[05.1988 - 09.1990] 1NT..NL30 |
17201-55020 |
US $2,824.64 |
||
|
17224
|
17224
17224-55020 Housing, Compressor[05.1988 - 09.1990] 1NT..NL30 |
17224-55020 |
US $374.19 |
||
|
17224A
|
17224A
90404-51057 Union(For Compressor Housing)[05.1988 - 09.1990] 1NT..NL30 |
90404-51057 |
US $4.37 |
||
|
17229
|
17229
17229-70010 Band, V[05.1988 - 09.1990] 3ETE..EL31; 1NT..NL30 |
17229-70010 |
US $36.25 |
||
|
17239
|
17239
17239-70010 Clamp, V, No.2[05.1988 - 09.1990] 3ETE..EL31; 1NT..NL30 |
17239-70010 |
US $31.89 |
||
|
17294
|
17294
90445-12111
Hose(For Repair Actuator Set)
[05.1988 - 09.1990] 1NT..NL30 |
90445-12111 |
— | ||
|
17294A
|
17294A
96132-30600
Clip(For Actuator Hose)
[05.1988 - 12.1988] 3ETE..EL31; 1NT..NL30 |
96132-30600 |
— | ||
| replacement | |||||
|
17294A
|
17294A
96132-51100 Clip (For Hose)[05.1988 - 12.1988] 3ETE..EL31; 1NT..NL30 |
96132-51100 |
from US $1.92 |
||
|
17294A
|
17294A
96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)[12.1988 - 09.1990] 1NT..NL30 |
96132-41100 |
US $1.92 |
||
| replacement | |||||
|
17294A
|
17294A
96132-51100 Clip (For Hose)[12.1988 - 09.1990] 1NT..NL30 |
96132-51100 |
from US $1.92 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
US $3.68 |
||
|
9025403013
|
9025403013
90254-03013 New Genuine Part |
90254-03013 |
US $0.70 |
||
|
9052304002
|
9052304002
90523-04002 RING |
90523-04002 |
US $1.28 |
||
|
9052403013
|
9052403013
90524-03013
New Genuine Part
|
90524-03013 |
— | ||
