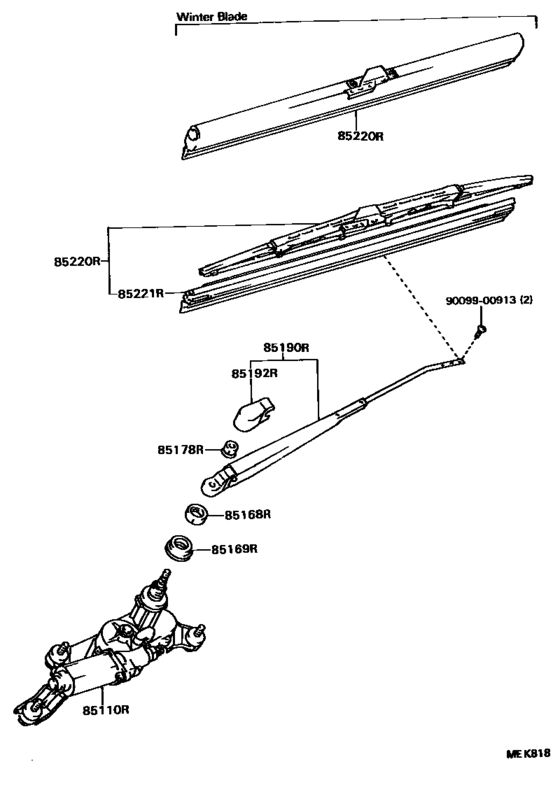

Rear Wiper ([05.1988 - ] (8805- )5DS) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85110-16300 Motor Assy, Rear Wiper[05.1988 - 09.1990] EL30,NL30..5DS..TX; EL3#,NL30..5DS..(GL,LIM,ZX) |
85110-16300 |
US $257.71 |
||
|
85168R
|
85168R
90099-05157 Nut, Windshield Wiper Link Pivot[05.1988 - 09.1990] EL30,NL30..5DS..TX; EL3#,NL30..5DS..(GL,LIM,ZX) |
90099-05157 |
from US $3.52 |
||
|
85169R
|
85169R
85179-16300
Washer, Rear Wiper Link Pivot, No.1
[05.1988 - 09.1990] EL30,NL30..5DS..TX; EL3#,NL30..5DS..(GL,LIM,ZX) |
85179-16300 |
— | ||
|
85178R
|
85178R
90179-06158 Nut, Rear Wiper Link Pivot, No.2[05.1988 - 09.1990] EL3#,NL30..AR,GL,GP,LIM,SRI,ZX; EL30,NL30..CD,TX |
90179-06158 |
from US $1.03 |
||
|
85190R
|
85190R
85190-16210 Arm Assy, Rear Wiper[05.1988 - 12.1989] EL30,NL30..5DS..TX; EL3#,NL30..5DS..(GL,LIM,ZX) |
85190-16210 |
US $43.10 |
||
|
85190R
|
85190R
85190-16211 Arm Assy, Rear Wiper[12.1989 - 09.1990] EL30,NL30..5DS..TX; EL3#,NL30..5DS..(GL,LIM,ZX) |
85190-16211 |
US $40.19 |
||
| replacement | |||||
|
85190R
|
85190R
85190-16210 Arm Assy, Rear Wiper[12.1989 - 09.1990] EL30,NL30..5DS..TX; EL3#,NL30..5DS..(GL,LIM,ZX) |
85190-16210 |
US $43.10 |
||
|
85192R
|
85192R
85192-14020
Cover, Rear Wiper Arm
[05.1988 - 09.1990] EL3#,NL30..AR,GL,GP,LIM,SRI,ZX; EL30,NL30..CD,TX |
85192-14020 |
— | ||
| replacement | |||||
|
85192R
|
85192R
85192-13060 Cover, Rear Wiper Arm[05.1988 - 09.1990] EL3#,NL30..AR,GL,GP,LIM,SRI,ZX; EL30,NL30..CD,TX |
85192-13060 |
from US $5.64 |
||
|
85220R
|
85220R
85220-12610 Blade Assy, Rear Wiper[05.1988 - 12.1989] EL30,NL30..5DS..TX; EL3#,NL30..5DS..(GL,LIM,ZX) |
85220-12610 |
US $33.20 |
||
| replacement | |||||
|
85220R
|
85220R
85220-12601 Blade Assy, Rear Wiper[05.1988 - 12.1989] EL30,NL30..5DS..TX; EL3#,NL30..5DS..(GL,LIM,ZX) |
85220-12601 |
US $33.34 |
||
|
85220R
|
85220R
85220-12620
Blade Assy, Windshield Wiper
[05.1988 - 03.1990] EL30,NL30..5DS..TX ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ; EL3#,NL30..5DS..(GL,LIM,ZX) ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ |
85220-12620 |
— | ||
| replacement | |||||
|
85220R
|
85220R
85291-12010
Blade Assy, Windshield Wiper
[05.1988 - 03.1990] EL30,NL30..5DS..TX ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ; EL3#,NL30..5DS..(GL,LIM,ZX) ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ |
85291-12010 |
— | ||
|
85220R
|
85220R
85220-12691 Blade Assy, Rear Wiper[12.1989 - 09.1990] EL3#,NL30..5DS..(GL,LIM,ZX); EL30,NL30..5DS..TX ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
85220-12691 |
US $33.20 |
||
| replacement | |||||
|
85220R
|
85220R
85220-12601 Blade Assy, Rear Wiper[12.1989 - 09.1990] EL3#,NL30..5DS..(GL,LIM,ZX); EL30,NL30..5DS..TX ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
85220-12601 |
US $33.34 |
||
|
85220R
|
85220R
85220-16441 Blade Assy, Rear Wiper[03.1990 - 09.1990] EL3#,NL30 |
85220-16441 |
US $24.98 |
||
|
85220R
|
85220R
85291-12010
Blade Assy, Windshield Wiper
[03.1990 - 09.1990] EL3#,NL30..5DS..(GL,LIM,ZX) ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ; EL30,NL30..5DS..TX ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ & ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
85291-12010 |
— | ||
|
85221R
|
85221R
85221-16090
Blade, Rear Wiper
[05.1988 - 09.1990] EL30,NL30..5DS..TX; EL3#,NL30..5DS..(GL,LIM,ZX) |
85221-16090 |
— | ||
| replacement | |||||
|
85221R
|
85221R
85214-12H90 Rubber, Blade Wiper[05.1988 - 09.1990] EL30,NL30..5DS..TX; EL3#,NL30..5DS..(GL,LIM,ZX) |
85214-12H90 |
US $10.88 |
||
|
9009900913
|
9009900913
90099-00913 SCREW |
90099-00913 |
from US $2.48 |
||
