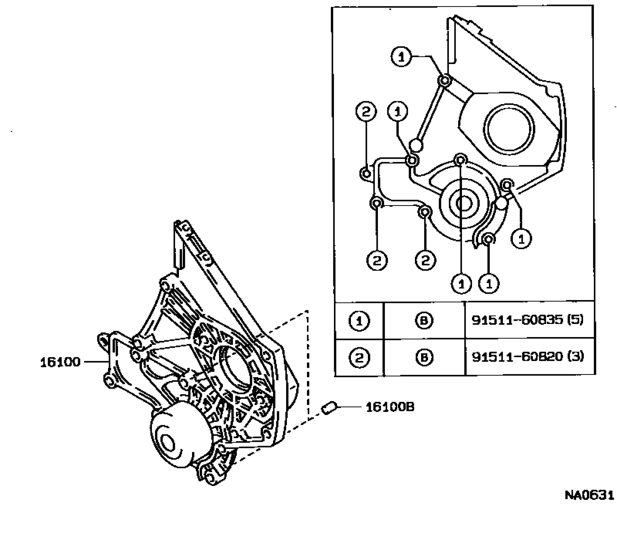

Water Pump ([05.1988 - ] (8805- )1NT) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- NL30
- grade
- ZX
- body
- SED
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-55011 Pump Assy, Engine Water[05.1988 - 09.1990] 1NT..NL30 |
16100-55011 |
US $170.35 |
||
| replacement | |||||
|
16100
|
16100
16100-59235 Pump Assy, Engine Water[05.1988 - 09.1990] 1NT..NL30 |
16100-59235 |
US $173.26 |
||
|
16100B
|
16100B
90253-11021 Pin, Ring[05.1988 - 09.1990] 1NT..NL30 |
90253-11021 |
from US $1.50 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9151160835
|
9151160835
91511-60835
Bolt(For Cylinder Head Set Sub)
|
91511-60835 |
— | ||
| replacement | |||||
|
9151160835
|
9151160835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
US $2.24 |
||
