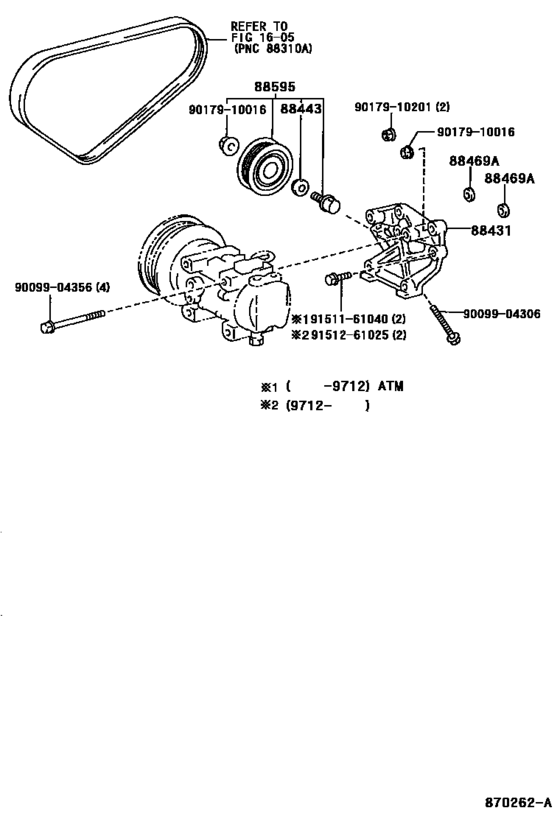

Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )NL50) Diagram Toyota COROLLA
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- WIN
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88431
|
88431
88431-10080
Bracket, Compressor Mounting, No.1
[12.1997 -] NL50 |
88431-10080 |
— | ||
|
88431
|
88431
88431-16070
Bracket, Compressor Mounting, No.1
[09.1994 - 12.1997] NL50 |
88431-16070 |
— | ||
|
88443
|
88443
88443-36010 Collar, Idle Pulley[12.1997 -] NL50 |
88443-36010 |
US $1.67 |
||
|
88469A
|
88469A
88469-16050
Collar, Adjusting
[09.1994 -] NL50..4FC |
88469-16050 |
— | ||
|
88595
|
88595
88440-12210 Pulley, Cooler Compressor Idle[09.1994 - 12.1995] NL50 |
88440-12210 |
US $81.54 |
||
|
88595
|
88595
88440-12230 Pulley, Cooler Compressor Idle[12.1995 -] NL50 |
88440-12230 |
US $81.54 |
||
|
9009904306
|
9009904306
90099-04306 Bolt, Idle Pulley |
90099-04306 |
US $1.92 |
||
|
9009904356
|
9009904356
90099-04356 BOLT |
90099-04356 |
US $2.77 |
||
| replacement | |||||
|
9009904356
|
9009904356
90099043561
Bolt
|
90099043561 |
— | ||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9017910201
|
9017910201
90179-10201 NUT |
90179-10201 |
from US $2.24 |
||
|
9151161040
|
9151161040
91511-61040 Bolt, Flange (For Idler) |
91511-61040 |
US $2.72 |
||
|
9151261025
|
9151261025
91512-61025
BOLT WASHER BASED H
|
91512-61025 |
— | ||
| replacement | |||||
|
9151261025
|
9151261025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $1.01 |
||
