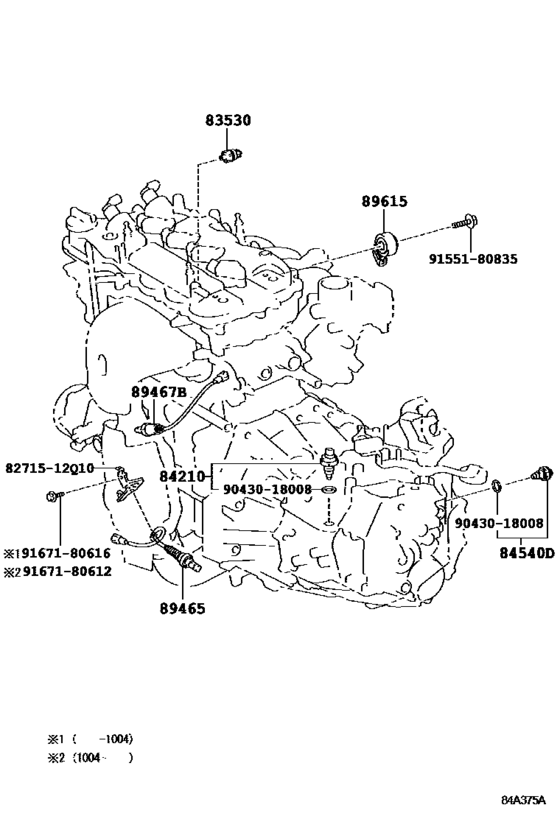

Switch & Relay & Computer ([12.2008 - ] ENGINE & TRANSMISSION (0812- )NRE150) Diagram Toyota COROLLA
- Year
- 2008 - 2013
- Sales region
- Europe
- Frame
- NRE150
- grade
- D
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- COROLLA SED (JPP)
- From
- 12.2008
- To
- 04.2013
- Gear Shift Type
- 6F
- Vehicle Model
- Corolla SED
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-05010
Switch Assy, Oil Pressure (For Engine)
[12.2008 - 04.2010] NRE150,ZRE151 VALEO |
83530-05010 |
— | ||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[10.2011 - 04.2013] NRE150,ZRE151 (L),DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[12.2008 - 04.2010] NRE150,ZRE151 DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.2008 - 04.2010] NRE150,ZRE151 DENSO |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[12.2008 - 04.2010] NRE150,ZRE151 DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.2008 - 04.2010] NRE150,ZRE151 YAZAKI |
83530-60020 |
from US $25.55 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[12.2008 - 04.2010] NDE150;ADE150,NRE150,ZRE151..MTM..(DCRL,HTWC,HTWVM) |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[12.2008 - 04.2010] NDE150;ADE150,NRE150,ZRE151..MTM..(DCRL,HTWC,HTWVM) |
84210-52050 |
from US $20.67 |
||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[05.2012 - 04.2013] NDE150,NRE150,ZRE151..MTM |
84210-52050 |
from US $20.67 |
||
|
84540D
|
84540D
84545-20020 Switch Assy, Neutral StartNEUTRAL START [12.2008 - 02.2010] NRE150 STOP & START SYSTEM PACKAGE |
84545-20020 |
US $41.35 |
||
|
89465
|
89465
89465-12A50
Sensor, Oxygen
[12.2008 - 04.2010] NRE150 |
89465-12A50 |
— | ||
|
89467B
|
89467B
89467-52070
Sensor, Air Fuel Ratio
[12.2008 - 04.2010] NRE150 |
89467-52070 |
— | ||
| replacement | |||||
|
89467B
|
89467B
89467-52090 Sensor, Air Fuel Ratio[12.2008 - 04.2010] NRE150 |
89467-52090 |
US $228.96 |
||
|
89467B
|
89467B
89467-52090 Sensor, Air Fuel Ratio[02.2011 - 04.2013] NRE150 |
89467-52090 |
US $228.96 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[12.2008 -] NRE150 |
89615-20090 |
from US $36.02 |
||
|
8271512Q10
|
8271512Q10
82715-12Q10
Bracket,wiring Harness Clamp
|
82715-12Q10 |
— | ||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.80 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
