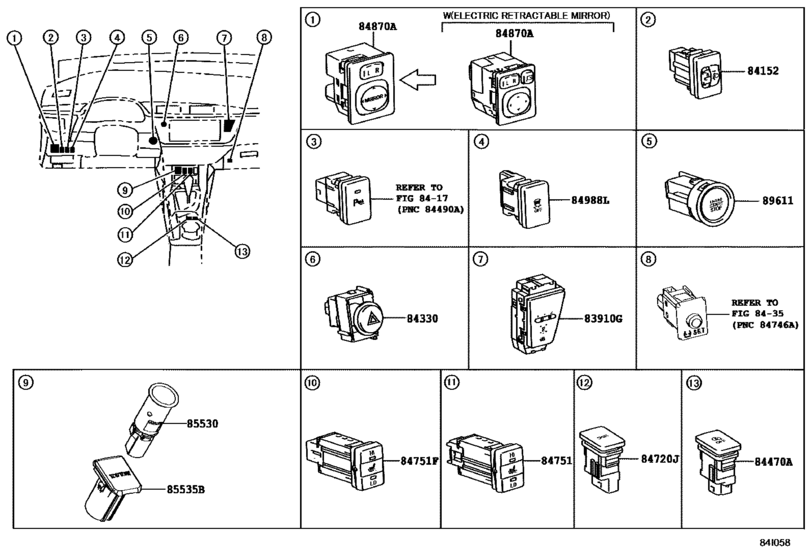

Switch & Relay & Computer ([04.2017 - ] INSTRUMENT PANEL (1704- )NRE181,ZRE182) Diagram Toyota COROLLA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- NRE181
- grade
- GLI
- body
- SED
- ENGINE
- 9NRFTS
- TRANSMISSION
- CVT
- DESTINATION
- CHI
- Model
- COROLLA
- From
- 10.2016
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-02180
Clock Assy
[06.2014 -] NRE181,ZRE18#,ZWE182 |
83910-02180 |
— | ||
|
83910G
|
83910G
83910-02300
Clock Assy
[04.2017 -] ZWE182; NRE181..GLI AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER; NRE181,ZRE182..GLI,GLXI,PREM AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER; ZRE182..PREM AUDIO-AVN(ACCESSORY) & 6SPEAKER |
83910-02300 |
— | ||
|
83910G
|
83910G
83910-02310
Clock Assy
[04.2017 -] NRE181,ZRE182..GLI,GLXI,PREM |
83910-02310 |
— | ||
|
84152
|
84152
84152-02101
Switch, Headlamp Leveling
[03.2015 -] NRE181,ZRE18# |
84152-02101 |
— | ||
|
84330
|
84330
84332-02281
Switch Assy, Hazard Warning Signal
[03.2015 -] NRE181,ZRE18#,ZWE182 |
84332-02281 |
— | ||
|
84330
|
84330
84332-02380
Switch Assy, Hazard Warning Signal
[04.2017 -] NRE181,ZRE182,ZWE182 |
84332-02380 |
— | ||
|
84470A
|
84470A
84470-02020
Switch Assy, Ecorun Cancel
[10.2016 - 03.2017] NRE181,ZRE182 |
84470-02020 |
— | ||
|
84720J
|
84720J
84720-02041
Switch Assy, Pattern Select
[03.2015 -] NRE181,ZRE18#..CVT |
84720-02041 |
— | ||
|
84870A
|
84870A
84870-02220
Switch Assy, Outer Mirror
[06.2014 -] ZWE182..GLI;NRE181,ZRE181 |
84870-02220 |
— | ||
|
84988L
|
84988L
84988-0R091
Switch, Vsc Off
[03.2015 - 03.2017] NRE181,ZRE182,ZWE182 |
84988-0R091 |
— | ||
|
85530
|
85530
85530-0N010
Socket Assy, Power Outlet, No.1
[04.2017 -] NRE181,ZRE182,ZWE182 |
85530-0N010 |
— | ||
|
85535B
|
85535B
85535-02110
Cover, Power Outlet Socket, No.1
[04.2017 -] NRE181,ZRE182 |
85535-02110 |
— |
