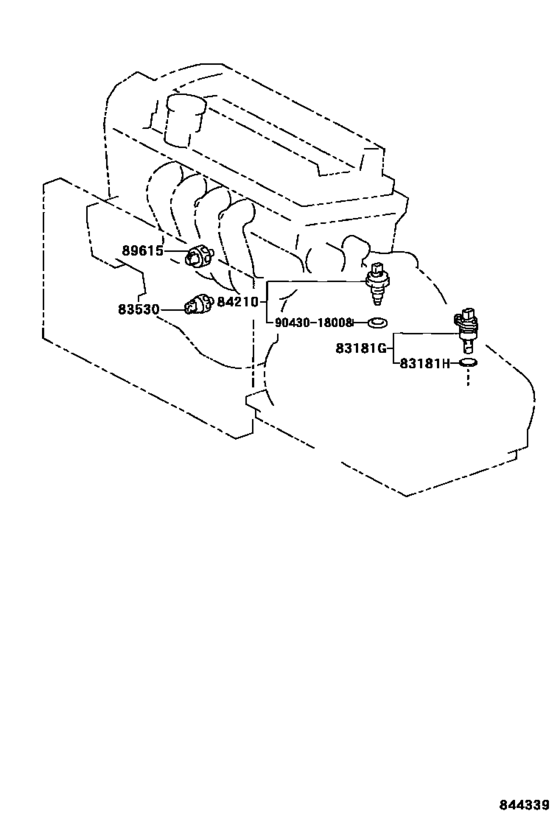

Switch & Relay & Computer ([07.2001 - ] ENGINE & TRANSMISSION (0107- )NZE120) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- NZE120
- grade
- J
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- DESTINATION
- VN
- Model
- COROLLA (ASIA/INDIA)
- From
- 07.2001
- To
- 03.2004
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-12020 Sensor, Speedometer[03.2001 - 08.2005] ZZE121..LHD..16J;NZE120,ZZE12#..MTM..(16,18E,18J,J) |
83181-12020 |
from US $169.48 |
||
|
83181H
|
83181H
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[03.2001 - 08.2005] ZZE121..LHD..16J;NZE120,ZZE12#..MTM..(16,18E,18J,J) |
96711-24030 |
from US $2.32 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[03.2001 - 08.2005] NZE120,ZZE12# DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.2001 - 08.2005] NZE120,ZZE12# DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[03.2001 - 08.2005] NZE120,ZZE12# DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [03.2001 - 08.2005] NZE120,ZZE12# YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[05.2001 - 08.2005] NZE120,ZZE12#..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[05.2001 - 08.2005] NZE120,ZZE12#..MTM |
84210-52050 |
from US $20.67 |
||
|
89615
|
89615
89615-52030 Sensor, Knock Control[07.2001 - 09.2003] NZE120 DENSO |
89615-52030 |
from US $159.71 |
||
|
89615
|
89615
89615-52040 Sensor, Knock Control[07.2001 - 09.2003] NZE120 TOYOTA |
89615-52040 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-52030 Sensor, Knock Control[07.2001 - 09.2003] NZE120 TOYOTA |
89615-52030 |
from US $159.71 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
