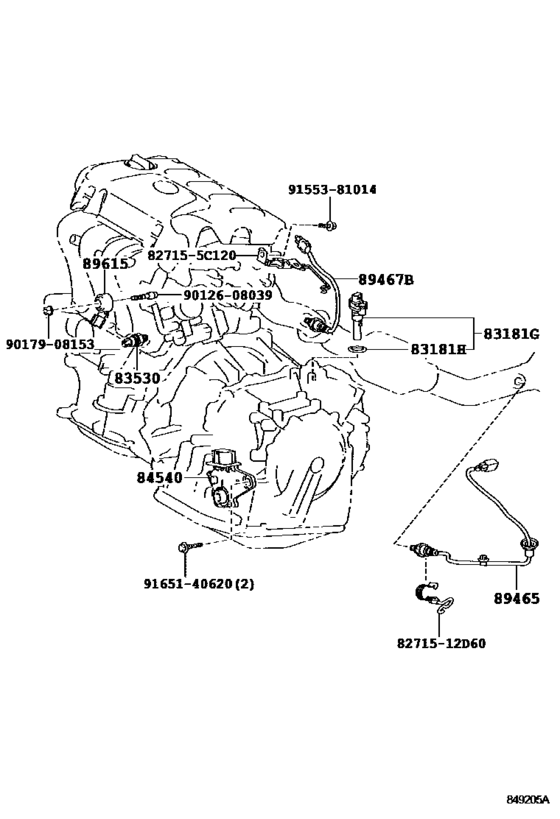

Switch & Relay & Computer ([08.2007 - ] ENGINE & TRANSMISSION (0708- )NZE141..4FC) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- NZE141
- grade
- LX
- body
- SED
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-12040 Sensor, Speedometer[08.2007 - 07.2010] NZE141,ZZE141..4FC |
83181-12040 |
from US $181.71 |
||
|
83181H
|
83181H
96711-24018 Ring, O[08.2007 - 07.2010] ZZE141..4FC;CE140,NZE141..SED |
96711-24018 |
from US $2.34 |
||
|
83530
|
83530
83530-12050 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] NZE141,ZRE141,ZZE142 |
83530-12050 |
US $29.27 |
||
| replacement | |||||
|
83530
|
83530
83530-12060 Switch Assy, Oil Pressure (For Engine)[10.2013 - 02.2014] NZE141,ZRE141,ZZE142 |
83530-12060 |
from US $25.82 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[08.2007 - 07.2010] NZE141..4FC;ZZE142..LHD..GEN |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2007 - 07.2010] NZE141..4FC;ZZE142..LHD..GEN |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[08.2007 - 07.2010] NZE141..4FC;ZZE142..LHD..GEN |
83530-0E010 |
from US $51.25 |
||
|
84540
|
84540
84540-46010 Switch Assy, Neutral Start[08.2007 - 07.2010] NZE141,ZZE14#..4FC |
84540-46010 |
from US $122.85 |
||
|
89465
|
89465
89465-12A10
Sensor, Oxygen
[08.2007 - 07.2010] NZE141..4FC |
89465-12A10 |
— | ||
|
89467B
|
89467B
89465-52380 Sensor, OxygenOXYGEN NO.2 [08.2007 - 07.2010] NZE141..4FC |
89465-52380 |
from US $128.76 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[08.2007 - 07.2010] NZE141..4FC;ZZE142..LHD..GEN |
89615-20090 |
from US $36.02 |
||
|
827155C120
|
827155C120
82715-5C120
Bracket,wiring Harness Clamp
|
82715-5C120 |
— | ||
|
8271512D60
|
8271512D60
82715-12D60 Bracket,wiring Harness Clamp |
82715-12D60 |
US $3.20 |
||
|
9012608039
|
9012608039
90126-08039 Bolt, Stud(For Oil Pan) |
90126-08039 |
US $3.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
