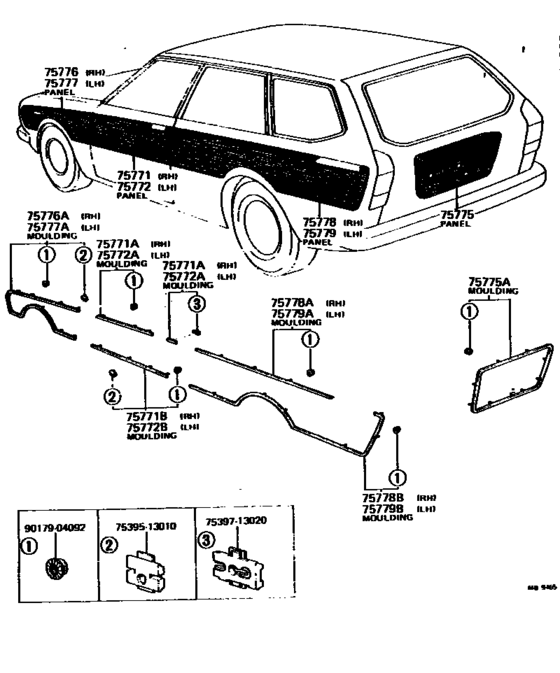

Wooden Grain Panel & Moulding ([08.1974 - 08.1976] (7408-7608)TE38..2D) Diagram Toyota COROLLA
- Year
- 1974 - 1976
- Sales region
- U.S.A.
- Frame
- TE38
- grade
- DLX
- body
- 2DW
- ENGINE
- 2TC
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1974
- To
- 08.1976
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Transmission Model
- T40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75771
|
75771
75985-13010
Panel, Front Door Outer Side Finish, Rh
[08.1974 - 08.1976] TE38..2D |
75985-13010 |
— | ||
|
75771A
|
75771A
75071-19015
Moulding, Front Door Outer Side Finish Panel, Rh No.1
[08.1974 - 08.1976] TE38..2D FRONT |
75071-19015 |
— | ||
|
75771A
|
75771A
75733-19015
Moulding, Front Door Outer Side Finish Panel, Rh No.1
[08.1974 - 08.1976] TE38..2D REAR |
75733-19015 |
— | ||
|
75771B
|
75771B
75073-19015
Moulding, Front Door Outer Side Finish Panel, Rh No.2
[08.1974 - 08.1976] TE38..2D |
75073-19015 |
— | ||
|
75772
|
75772
75986-13010
Panel, Front Door Outer Side Finish, Lh
[08.1974 - 08.1976] TE38..2D |
75986-13010 |
— | ||
|
75772A
|
75772A
75072-19015
Moulding, Front Door Outer Side Finish Panel, Lh No.1
[08.1974 - 08.1976] TE38..2D FRONT |
75072-19015 |
— | ||
|
75772A
|
75772A
75733-19015
Moulding, Front Door Outer Side Finish Panel, Rh No.1
[08.1974 - 08.1976] TE38..2D REAR |
75733-19015 |
— | ||
|
75772B
|
75772B
75074-19015
Moulding, Front Door Outer Side Finish Panel, Lh No.2
[08.1974 - 08.1976] TE38..2D |
75074-19015 |
— | ||
|
75775
|
75775
75995-13010
Panel, Back Door Outer Side Finish
[08.1974 - 08.1979] TE38 |
75995-13010 |
— | ||
|
75775A
|
75775A
75801-19055
Moulding, Back Door Outer Side Finish Panel, No.1
[08.1974 - 08.1979] TE38 |
75801-19055 |
— | ||
|
75776
|
75776
75981-13010
Panel, Front Fender Outer Side Finish, Rh
[08.1974 - 08.1979] TE38 |
75981-13010 |
— | ||
|
75776A
|
75776A
75601-19035
Moulding, Front Fender Outer Side Finish Panel, Rh No.1
[08.1974 - 08.1979] TE38 |
75601-19035 |
— | ||
|
75777
|
75777
75982-13010
Panel, Front Fender Outer Side Finish, Lh
[08.1974 - 08.1979] TE38 |
75982-13010 |
— | ||
|
75777A
|
75777A
75602-19035
Moulding, Front Fender Outer Side Finish Panel, Lh No.1
[08.1974 - 08.1979] TE38 |
75602-19035 |
— | ||
|
75778
|
75778
75991-13010
Panel, Quarter Panel Outside Finish, Rh
[08.1974 - 08.1976] TE38..2D |
75991-13010 |
— | ||
|
75778A
|
75778A
75605-19015
Moulding, Quarter Panel Outside Finish Panel, Rh No.1
[08.1974 - 08.1976] TE38..2D |
75605-19015 |
— | ||
|
75778B
|
75778B
75065-19015
Moulding, Quarter Panel Outside Finish Panel, Rh No.2
[08.1974 - 08.1976] TE38..2D |
75065-19015 |
— | ||
|
75779
|
75779
75992-13010
Panel, Quarter Panel Outer Side Finish, Lh
[08.1974 - 08.1976] TE38..2D |
75992-13010 |
— | ||
|
75779A
|
75779A
75606-19015
Moulding, Quarter Panel Outer Side Finish Panel, Lh No.1
[08.1974 - 08.1976] TE38..2D |
75606-19015 |
— | ||
|
75779B
|
75779B
75066-19015
Moulding, Quarter Panel Outer Side Finish Panel, Lh No.2
[08.1974 - 08.1976] TE38..2D |
75066-19015 |
— | ||
|
7539513010
|
7539513010
75395-13010
Clip, Back Door Moulding, No.1
|
75395-13010 |
— | ||
|
7539713020
|
7539713020
75397-13020
Clip, Back Door Moulding, No.3
|
75397-13020 |
— | ||
|
9017904092
|
9017904092
90179-04092
NUT
|
90179-04092 |
— | ||
| replacement | |||||
|
9017904092
|
9017904092
90179-04001 NUT |
90179-04001 |
US $2.88 |
||
