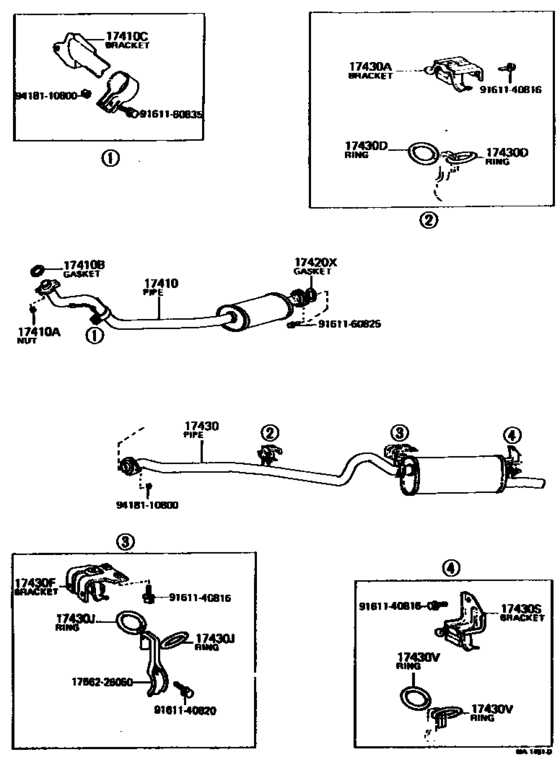

Exhaust Pipe ([08.1974 - 08.1977] (7408-7708)2TC..TE38 ; (7708-7908)2TC..TE38..CND) Diagram Toyota COROLLA
- Year
- 1974 - 1979
- Sales region
- U.S.A.
- Frame
- TE38
- grade
- DLX
- body
- 4DW
- ENGINE
- 2TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 11.1974
- To
- 08.1979
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Transmission Model
- T50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-26010
Pipe Assy, Exhaust, Front
[08.1974 - 08.1975] 2TC..TE3# CALIFORNIA SPEC. |
17401-26010 |
— | ||
|
17410
|
17410
17401-26011 Pipe Assy, Exhaust, Front[08.1975 - 08.1976] 2TC..TE3#,51 CALIFORNIA SPEC. |
17401-26011 |
US $231.50 |
||
| replacement | |||||
|
17410
|
17410
17401-26012 Pipe Assy, Exhaust, Front[08.1975 - 08.1976] 2TC..TE3#,51 CALIFORNIA SPEC. |
17401-26012 |
US $294.11 |
||
|
17410
|
17410
17401-26012 Pipe Assy, Exhaust, Front[08.1977 - 08.1978] 2TC..TE3#,51..USA CAL.& H.A. |
17401-26012 |
US $294.11 |
||
|
17410
|
17410
17401-26030 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1977 - 08.1979] 2TC..TE3#,51..USA |
17401-26030 |
US $375.65 |
||
|
17410
|
17410
17410-26080
Pipe Assy, Exhaust, Front
[08.1974 - 08.1975] 2TC..TE3# |
17410-26080 |
— | ||
|
17410
|
17410
17410-26081 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1975 - 08.1977] 2TC..TE3#,51 |
17410-26081 |
US $308.67 |
||
|
17410
|
17410
17410-26240
Pipe Assy, Exhaust, Front
[08.1978 - 08.1979] 2TC..TE3#,51..USA CAL.& H.A. |
17410-26240 |
— | ||
|
17410A
|
17410A
90170-10199 Nut, Exhaust Pipe Set Stud Bolt[08.1975 - 11.1975] 2TC..TE3# |
90170-10199 |
US $4 |
||
|
17410A
|
17410A
90179-10010 Nut, Exhaust Pipe Set Stud Bolt[01.1977 - 08.1979] 3KC,2TC..KE3#,50,TE3#,51 |
90179-10010 |
from US $1.38 |
||
|
17410A
|
17410A
90179-10118 Nut, Exhaust Pipe Set Stud BoltEXHAUST PIPE SET STUD BOLT [08.1974 - 08.1975] 3KC,2TC..KE3#,TE3# |
90179-10118 |
US $4.32 |
||
|
17410B
|
17410B
90917-06001
Gasket(For Manifold Extension)
[08.1977 - 08.1979] 2TC..TE3#,51..USA |
90917-06001 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06038 Gasket, Exhaust Pipe[08.1977 - 08.1979] 2TC..TE3#,51..USA |
90917-06038 |
from US $2.34 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[08.1974 - 08.1977] 2TC..TE3#,51 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[08.1974 - 08.1977] 2TC..TE3#,51 |
90917-06039 |
from US $2.36 |
||
|
17410C
|
17410C
17571-26060 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1974 - 08.1977] 2TC..TE3#,51 |
17571-26060 |
US $14.41 |
||
|
17410C
|
17410C
17571-26130 Bracket, Exhaust Pipe Front (For Front)[08.1977 - 08.1978] 2TC..TE3#,51..USA |
17571-26130 |
US $24.02 |
||
| replacements | |||||
|
17410C
|
17410C
91651-G1065 New Genuine Part[08.1977 - 08.1978] 2TC..TE3#,51..USA |
91651-G1065 |
US $3.35 |
||
|
17410C
|
17410C
17571-26131
Bracket, Exhaust Pipe Front (For Front)
[08.1977 - 08.1978] 2TC..TE3#,51..USA |
17571-26131 |
— | ||
|
17410C
|
17410C
90917-04034
Clamp No.1, Exhaust Pipe Front (For Front)
[08.1977 - 08.1978] 2TC..TE3#,51..USA |
90917-04034 |
— | ||
|
17410C
|
17410C
17571-26131
Bracket, Exhaust Pipe Front (For Front)
[08.1978 - 08.1979] 2TC..TE3#,51..USA |
17571-26131 |
— | ||
|
17410C
|
17410C
17571-26150 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1978 - 08.1979] 2TC..TE3#,51..CND; 2TC..TE3#,51..USA CALIFORNIA SPEC. |
17571-26150 |
US $19.07 |
||
|
17420X
|
17420X
90917-06004
Gasket(For Manifold Extension)
[08.1974 - 08.1979] 2TC..TE3#,51 |
90917-06004 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06039 Gasket, Exhaust Pipe[08.1974 - 08.1979] 2TC..TE3#,51 |
90917-06039 |
from US $2.36 |
||
|
17430
|
17430
17430-26170
Pipe Assy, Exhaust, Tail
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
17430-26170 |
— | ||
|
17430
|
17430
17430-26171 Pipe Assy, Exhaust, Tail[08.1975 - 08.1976] 2TC..TE38 CALIFORNIA SPEC. |
17430-26171 |
US $457.18 |
||
| replacement | |||||
|
17430
|
17430
17430-26460 Pipe Assy, Exhaust, Tail[08.1975 - 08.1976] 2TC..TE38 CALIFORNIA SPEC. |
17430-26460 |
US $385.84 |
||
|
17430
|
17430
17430-26180
Pipe Assy, Exhaust, Tail
[08.1974 - 08.1975] 2TC..TE38 |
17430-26180 |
— | ||
|
17430
|
17430
17430-26181 Pipe Assy, Exhaust, Tail[08.1975 - 04.1976] 2TC..TE38 |
17430-26181 |
US $365.46 |
||
| replacement | |||||
|
17430
|
17430
17430-26182 Pipe Assy, Exhaust, Tail[08.1975 - 04.1976] 2TC..TE38 |
17430-26182 |
US $365.46 |
||
|
17430
|
17430
17430-26182 Pipe Assy, Exhaust, Tail[04.1976 - 08.1977] 2TC..TE38 |
17430-26182 |
US $365.46 |
||
|
17430
|
17430
17430-26380 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1977 - 08.1978] 2TC..TE38..USA |
17430-26380 |
US $464.46 |
||
|
17430
|
17430
17430-26430 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1978 - 08.1979] 2TC..TE38..USA CALIFORNIA SPEC. |
17430-26430 |
US $468.83 |
||
|
17430
|
17430
17430-26460 Pipe Assy, Exhaust, Tail[10.1978 - 08.1979] 2TC..TE38 ARCTIC |
17430-26460 |
US $385.84 |
||
|
17430A
|
17430A
17506-24020 Bracket, Exhaust Tail Pipe(For Front)EXHAUST TAIL PIPE(FOR FRONT) [08.1974 - 01.1977] 2TC..TE38 |
17506-24020 |
US $18.05 |
||
|
17430D
|
17430D
90301-34172
Bolt Or Ring, Exhaust Tail Pipe (For Front)
[08.1974 - 08.1977] 2TC..TE3#,51..CP,HT,SED,WG |
90301-34172 |
— | ||
| replacement | |||||
|
17430D
|
17430D
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1974 - 08.1977] 2TC..TE3#,51..CP,HT,SED,WG |
90301-34207 |
US $9.92 |
||
|
17430D
|
17430D
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1974 - 08.1976] 2TC..TE3#,51..CP,HT,SED,WG CALIFORNIA SPEC. |
90301-34207 |
US $9.92 |
||
|
17430F
|
17430F
17507-24020 Bracket, Exhaust Tail Pipe(For Center)EXHAUST TAIL PIPE(FOR CENTER) [08.1974 - 08.1977] 2TC..TE38 |
17507-24020 |
US $16.02 |
||
|
17430F
|
17430F
17507-26030
Bracket, Exhaust Tail Pipe(For Center)
[08.1974 - 08.1976] 2TC..TE38 CALIFORNIA SPEC. UPR |
17507-26030 |
— | ||
|
17430F
|
17430F
17508-26020
Bracket, Exhaust Tail Pipe(For Center)
[08.1974 - 08.1976] 2TC..TE38 CALIFORNIA LWE |
17508-26020 |
— | ||
|
17430J
|
17430J
90301-34172
Bolt Or Ring, Exhaust Tail Pipe (For Front)
[01.1977 - 08.1977] 2TC..TE3#,51..CP,HT,SED,WG; 3KC..KE3# CANADA SPEC. |
90301-34172 |
— | ||
| replacement | |||||
|
17430J
|
17430J
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[01.1977 - 08.1977] 2TC..TE3#,51..CP,HT,SED,WG; 3KC..KE3# CANADA SPEC. |
90301-34207 |
US $9.92 |
||
|
17430J
|
17430J
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1974 - 08.1976] 2TC..TE3#,51..CP,HT,SED,WG CALIFORNIA SPEC. |
90301-34207 |
US $9.92 |
||
|
17430S
|
17430S
17508-24040 Bracket, Exhaust Tail Pipe (For Rear)EXHAUST TAIL PIPE (FOR REAR) [08.1975 - 08.1979] 2TC..TE38 |
17508-24040 |
US $12.38 |
||
|
17430S
|
17430S
17508-36011
Bracket, Exhaust Tail Pipe (For Rear)
[08.1974 - 08.1975] 2TC..TE38 |
17508-36011 |
— | ||
| replacement | |||||
|
17430S
|
17430S
17508-24040 Bracket, Exhaust Tail Pipe (For Rear)EXHAUST TAIL PIPE (FOR REAR) [08.1974 - 08.1975] 2TC..TE38 |
17508-24040 |
US $12.38 |
||
|
17430V
|
17430V
90301-34172
Bolt Or Ring, Exhaust Tail Pipe (For Front)
[08.1974 - 08.1977] 2TC..TE3#,51..CP,HT,SED,WG; 3KC..KE3#..DLX,STD |
90301-34172 |
— | ||
| replacement | |||||
|
17430V
|
17430V
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1974 - 08.1977] 2TC..TE3#,51..CP,HT,SED,WG; 3KC..KE3#..DLX,STD |
90301-34207 |
US $9.92 |
||
|
17430V
|
17430V
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[08.1974 - 08.1976] 2TC..TE3#,51..CP,HT,SED,WG CALIFORNIA SPEC. |
90301-34207 |
US $9.92 |
||
|
1756226050
|
1756226050
17562-26050
Support, Exhaust Pipe, No.2
|
17562-26050 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9418110800
|
9418110800
94181-10800
New Genuine Part
|
94181-10800 |
— | ||
