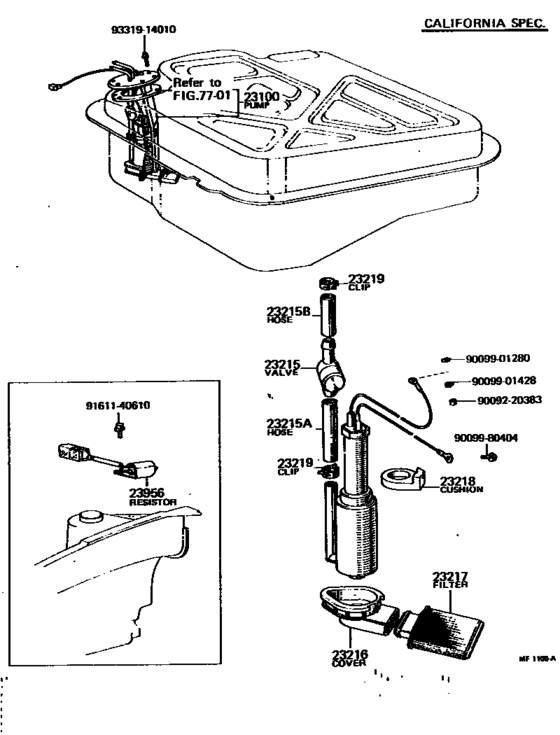

Fuel Pump & Pipe ([08.1974 - 08.1975] (7408-7508)2TC..TE38) Diagram Toyota COROLLA
- Year
- 1974 - 1979
- Sales region
- U.S.A.
- Frame
- TE38
- grade
- DLX
- body
- 4DW
- ENGINE
- 2TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 11.1974
- To
- 08.1979
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Transmission Model
- T50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-29145 Pump Assy, Fuel[08.1974 - 08.1976] 2TC..TE3#,51 |
23100-29145 |
US $129.58 |
||
|
23100
|
23100
23100-29146
Pump Assy, Fuel
[08.1976 - 08.1977] 2TC..TE3#,51 CANADA SPEC. |
23100-29146 |
— | ||
|
23100
|
23100
23100-29165
Pump Assy, Fuel
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
23100-29165 |
— | ||
| replacements | |||||
|
23100
|
23100
23217-26061
Filter, Fuel Pump
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
23217-26061 |
— | ||
|
23100
|
23100
23101-38010 Body Sub-Assy, Fuel PumpFUEL PUMP [08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
23101-38010 |
US $299.94 |
||
|
23100
|
23100
23206-29025
New Genuine Part
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
23206-29025 |
— | ||
|
23100
|
23100
23215-26060
Valve, Relief
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
23215-26060 |
— | ||
|
23100
|
23100
23216-38020
Cover, Fuel Pump
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
23216-38020 |
— | ||
|
23100
|
23100
23218-38010
Cushion, Rubber
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
23218-38010 |
— | ||
|
23100
|
23100
23219-26060
Clip, Hose
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
23219-26060 |
— | ||
|
23100
|
23100
90092-20383
New Genuine Part
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
90092-20383 |
— | ||
|
23100
|
23100
90099-01280
New Genuine Part
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
90099-01280 |
— | ||
|
23100
|
23100
90099-01428
New Genuine Part
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
90099-01428 |
— | ||
|
23100
|
23100
90099-19101
Hose, Fuel Pump, No.1
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
90099-19101 |
— | ||
|
23100
|
23100
90099-19102
Hose, Fuel Pump, No.2
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
90099-19102 |
— | ||
|
23100
|
23100
90099-80404
New Genuine Part
[08.1974 - 08.1975] 2TC..TE38 CALIFORNIA SPEC. |
90099-80404 |
— | ||
|
23100
|
23100
23100-29215 Pump Assy, FuelFUEL [08.1976 - 03.1978] 2TC..TE3#,51 |
23100-29215 |
US $157.25 |
||
|
23100
|
23100
23100-29225 Pump Assy, FuelFUEL [08.1976 - 08.1977] 2TC..TE3#,51 CAL.& H.A. |
23100-29225 |
US $163.07 |
||
|
23100
|
23100
23100-29235 Pump Assy, FuelFUEL [03.1978 - 08.1979] 2TC..TE3#,51..USA |
23100-29235 |
US $163.07 |
||
|
23215
|
23215
23215-26060
Valve, Relief
[08.1974 - 08.1975] 2TC..TE3# CALIFORNIA SPEC. |
23215-26060 |
— | ||
|
23215
|
23215
23215-38011
Valve, Relief
[08.1975 - 08.1976] 2TC..TE3#,51 CALIFORNIA SPEC. |
23215-38011 |
— | ||
| replacement | |||||
|
23215
|
23215
85675-21010
Valve, Relief
[08.1975 - 08.1976] 2TC..TE3#,51 CALIFORNIA SPEC. |
85675-21010 |
— | ||
|
23215A
|
23215A
90099-19102
Hose, Fuel Pump, No.2
[08.1974 - 08.1976] 2TC..TE38 CALIFORNIA SPEC. |
90099-19102 |
— | ||
|
23215B
|
23215B
90099-19101
Hose, Fuel Pump, No.1
[08.1974 - 08.1976] 2TC..TE38 CALIFORNIA SPEC. |
90099-19101 |
— | ||
|
23216
|
23216
23216-38020
Cover, Fuel Pump
[08.1974 - 08.1976] 2TC..TE3#,51 CALIFORNIA SPEC. |
23216-38020 |
— | ||
|
23217
|
23217
23217-26060
Filter, Fuel Pump
[08.1974 - 08.1975] 2TC..TE3# CALIFORNIA SPEC. |
23217-26060 |
— | ||
| replacement | |||||
|
23217
|
23217
23217-26061
Filter, Fuel Pump
[08.1974 - 08.1975] 2TC..TE3# CALIFORNIA SPEC. |
23217-26061 |
— | ||
|
23217
|
23217
23217-26061
Filter, Fuel Pump
[08.1975 - 08.1976] 2TC..TE3#,51 CALIFORNIA SPEC. |
23217-26061 |
— | ||
|
23218
|
23218
23218-38010
Cushion, Rubber
[08.1974 - 08.1976] 2TC..TE3#,51 CALIFORNIA SPEC. |
23218-38010 |
— | ||
|
23219
|
23219
23219-26060
Clip, Hose
[08.1974 - 08.1976] 2TC..TE3#,51 CALIFORNIA SPEC. LWR. |
23219-26060 |
— | ||
|
23219
|
23219
23219-38010
Clip, Hose
[08.1974 - 08.1976] 2TC..TE3#,51 CALIFORNIA SPEC. UPP. |
23219-38010 |
— | ||
|
23956
|
23956
23956-26012 Resistor, Fuel Pump[10.1974 - 03.1976] 2TC..TE3# CALIFORNIA SPEC. |
23956-26012 |
US $44.12 |
||
| replacement | |||||
|
23956
|
23956
23956-26013
Resistor, Fuel Pump
[10.1974 - 03.1976] 2TC..TE3# CALIFORNIA SPEC. |
23956-26013 |
— | ||
|
23956
|
23956
23956-26013
Resistor, Fuel Pump
[03.1976 - 08.1976] 2TC..TE3#,51 CALIFORNIA SPEC. |
23956-26013 |
— | ||
|
9009220383
|
9009220383
90092-20383
New Genuine Part
|
90092-20383 |
— | ||
|
9009901280
|
9009901280
90099-01280
New Genuine Part
|
90099-01280 |
— | ||
|
9009901428
|
9009901428
90099-01428
New Genuine Part
|
90099-01428 |
— | ||
|
9009980404
|
9009980404
90099-80404
New Genuine Part
|
90099-80404 |
— | ||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $0.83 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.64 |
||
