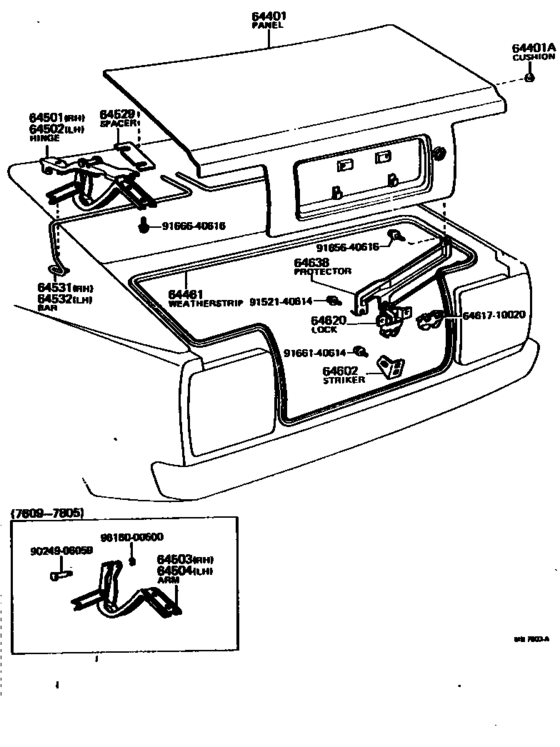

Luggage Compartment Door & Lock ([03.1976 - 08.1979] (7603-7908)CP) Diagram Toyota COROLLA
- Year
- 1977 - 1979
- Sales region
- U.S.A.
- Frame
- TE51
- grade
- DLX
- body
- CP
- ENGINE
- 2TC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1977
- To
- 08.1979
- Gear Shift Type
- 3FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Transmission Model
- A40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64401
|
64401
64401-12903 Panel Sub-Assy, Luggage Compartment Door[01.1977 - 08.1977] TE51..CP |
64401-12903 |
US $387.30 |
||
| replacement | |||||
|
64401
|
64401
64401-12905
Panel Sub-Assy, Luggage Compartment Door
[01.1977 - 08.1977] TE51..CP |
64401-12905 |
— | ||
|
64401
|
64401
64401-12905
Panel Sub-Assy, Luggage Compartment Door
[08.1977 - 08.1979] TE51..CP |
64401-12905 |
— | ||
|
64401A
|
64401A
90541-09007
Cushion(For Luggage Compartment Door Panel)
[03.1976 - 08.1979] TE51..CP OD=9.2 |
90541-09007 |
— | ||
|
64461
|
64461
64461-12131
Weatherstrip, Luggage Compartment Door
[03.1976 - 08.1979] TE51..CP |
64461-12131 |
— | ||
|
64501
|
64501
64510-12150
Hinge Sub-Assy, Luggage Compartment Door, Rh
[03.1976 - 05.1978] TE51..CP |
64510-12150 |
— | ||
|
64501
|
64501
64510-12151
Hinge Sub-Assy, Luggage Compartment Door, Rh
[05.1978 - 08.1979] TE51..CP |
64510-12151 |
— | ||
|
64502
|
64502
64520-12131
Hinge Sub-Assy, Luggage Compartment Door, Lh
[03.1976 - 05.1978] TE51..CP |
64520-12131 |
— | ||
|
64502
|
64502
64520-12132
Hinge Sub-Assy, Luggage Compartment Door, Lh
[05.1978 - 08.1979] TE51..CP |
64520-12132 |
— | ||
|
64503
|
64503
64503-12020
Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
[03.1976 - 05.1978] TE51..CP |
64503-12020 |
— | ||
|
64504
|
64504
64504-12010
Arm Sub-Assy, Luggage Compartment Door Hinge, Lh
[03.1976 - 05.1978] TE51..CP |
64504-12010 |
— | ||
|
64529
|
64529
64529-12030
Spacer, Luggage Compartment Door Hinge
[03.1976 - 08.1979] TE51..CP |
64529-12030 |
— | ||
|
64531
|
64531
64531-12101
Bar, Luggage Door Hinge Torsion, Rh
[03.1976 - 08.1979] TE51..CP |
64531-12101 |
— | ||
|
64532
|
64532
64532-12101
Bar, Luggage Door Hinge Torsion, Lh
[03.1976 - 08.1979] TE51..CP |
64532-12101 |
— | ||
|
64602
|
64602
64621-12050
Striker Sub-Assy, Luggage Compartment Door Lock
[03.1976 - 08.1979] TE51..CP |
64621-12050 |
— | ||
|
64620
|
64620
64620-12060
Lock Assy, Luggage Compartment Door
[03.1976 - 08.1979] TE51..CP |
64620-12060 |
— | ||
|
64638
|
64638
64638-12010
Protector, Luggage Compartment Door Link
[03.1976 - 08.1979] TE51..CP |
64638-12010 |
— | ||
|
6461710020
|
6461710020
64617-10020 Link, Luggage Compartment Door Lock |
64617-10020 |
US $3.20 |
||
|
9024906059
|
9024906059
90249-06059
New Genuine Part
|
90249-06059 |
— | ||
|
9152140614
|
9152140614
91521-40614
New Genuine Part
|
91521-40614 |
— | ||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.76 |
||
|
9166640616
|
9166640616
91666-40616
New Genuine Part
|
91666-40616 |
— | ||
| replacement | |||||
|
9166640616
|
9166640616
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9616000500
|
9616000500
96160-00500 Ring, E(For Over Center Lever) |
96160-00500 |
from US $0.84 |
||
