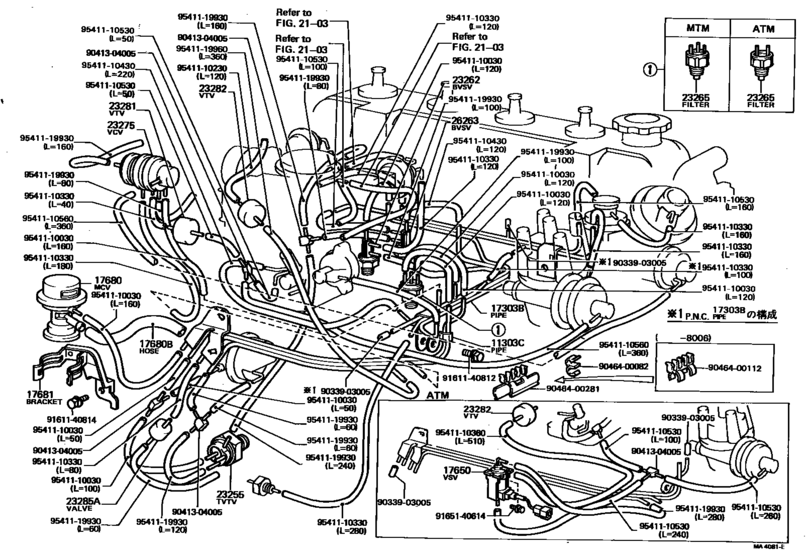

Vacuum Piping ([08.1979 - 08.1981] (7908-8108)13TU) Diagram Toyota COROLLA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- TE70
- grade
- GL
- body
- SED
- ENGINE
- 13TU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1981
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-18030 Pipe Sub-Assy, Air, No.1[08.1979 - 03.1980] 13TU..TE70 |
17303-18030 |
US $75.71 |
||
| replacement | |||||
|
17303B
|
17303B
17303-18031
Pipe Sub-Assy, Air, No.1
[08.1979 - 03.1980] 13TU..TE70 |
17303-18031 |
— | ||
|
17303B
|
17303B
17303-18031
Pipe Sub-Assy, Air, No.1
[03.1980 - 08.1981] 13TU..TE70 |
17303-18031 |
— | ||
|
17680
|
17680
17680-18020
Valve Assy, Mixture Control
[08.1979 - 08.1981] 13TU..TE70..MTM |
17680-18020 |
— | ||
|
17680B
|
17680B
90445-11052 Hose, Air, No.4(For Air By-Pass Valve)AIR, NO.4(FOR AIR BY-PASS VALVE) [08.1979 - 08.1981] 13TU..TE70..MTM |
90445-11052 |
US $5.10 |
||
|
17681
|
17681
17681-18030
Bracket, Mixture Control Valve
[08.1979 - 08.1981] 13TU..TE70..MTM |
17681-18030 |
— | ||
|
23255
|
23255
90925-01068
Valve, Thermostatic Vacuum Transmitting, No.1
[08.1979 - 08.1981] 12TJ,13TU..TE70,73 |
90925-01068 |
— | ||
|
23262
|
23262
25810-15010 Valve, Bimetal Vacuum Switching, No.1[08.1979 - 08.1981] 13TU..TE70 |
25810-15010 |
US $74.26 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1979 - 08.1981] 12TJ,13TU..TE70,73..MTM |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1979 - 08.1981] 12TJ,13TU..TE70,73..MTM |
90917-11027 |
from US $23.71 |
||
|
23275
|
23275
90925-03095 Valve, Vacuum Control, No.1VACUUM CONTROL, NO.1 [08.1979 - 12.1979] 13TU..TE70 |
90925-03095 |
US $107.74 |
||
|
23275
|
23275
90925-03122
Valve, Vacuum Control, No.1
[07.1980 - 08.1981] 13TU..TE70..MTM |
90925-03122 |
— | ||
|
23281
|
23281
90925-01072 Valve, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.1 [08.1979 - 08.1981] 13TU..TE70 |
90925-01072 |
US $39.02 |
||
|
23282
|
23282
90925-01014
Valve, Vacuum Transmitting, No.1
[08.1979 - 12.1979] 13TU..TE70 |
90925-01014 |
— | ||
|
23285A
|
23285A
90917-10059 Valve, Check, No.1CHECK, NO.1 [08.1979 - 08.1981] 13TU..TE70 |
90917-10059 |
US $15.87 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.76 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
US $3.04 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400112
|
9046400112
90464-00112 New Genuine Part |
90464-00112 |
US $4.22 |
||
|
9046400281
|
9046400281
90464-00281
New Genuine Part
|
90464-00281 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9541110030
|
9541110030
95411-10030
Hose (For Idle Up Device)
|
95411-10030 |
— | ||
| replacement | |||||
|
9541110030
|
9541110030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110230
|
9541110230
95411-10230 Hose, Vacuum, No.2 (For Front Drive Shift) |
95411-10230 |
US $6.70 |
||
| replacement | |||||
|
9541110230
|
9541110230
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110330
|
9541110330
95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift) |
95411-10330 |
US $6.70 |
||
| replacement | |||||
|
9541110330
|
9541110330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110360
|
9541110360
95411-10360
Hose (For Idle Up Device)
|
95411-10360 |
— | ||
| replacement | |||||
|
9541110360
|
9541110360
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110430
|
9541110430
95411-10430 Hose (For Idle Up Device) |
95411-10430 |
US $6.84 |
||
| replacement | |||||
|
9541110430
|
9541110430
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110530
|
9541110530
95411-10530 Hose, No.1(For Opener) |
95411-10530 |
US $6.41 |
||
| replacement | |||||
|
9541110530
|
9541110530
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110560
|
9541110560
95411-10560 Hose, Vacuum, No.9 (For Heater Or Air Conditioner) |
95411-10560 |
US $11.65 |
||
| replacement | |||||
|
9541110560
|
9541110560
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
