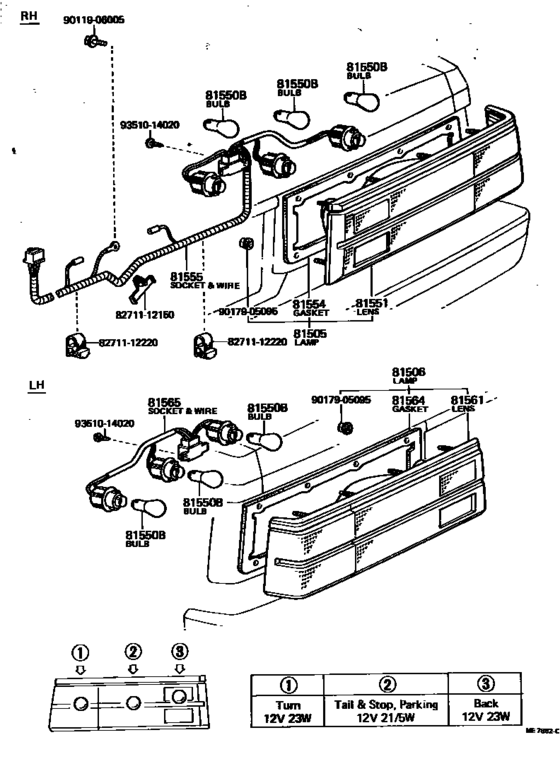

Rear Combination Lamp ([03.1979 - 08.1981] (7903-8108)LB) Diagram Toyota COROLLA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- TE70
- grade
- GL
- body
- LB
- ENGINE
- 13TU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1981
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-19345
Lamp Sub-Assy, Rear Combination, Rh
[03.1979 - 08.1981] AE70,KE70,TE70,71..LB..(DX,GL,GT) |
81505-19345 |
— | ||
|
81506
|
81506
81506-19215
Lamp Sub-Assy, Rear Combination, Lh
[03.1979 - 08.1981] AE70,KE70,TE70,71..LB..(DX,GL,GT) |
81506-19215 |
— | ||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7# １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7# １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[03.1979 - 07.1987] AE70,CE7#,KE7#,TE7# １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-12720
Lens, Rear Combination Lamp, Rh
[03.1979 - 08.1981] AE70,KE70,TE70,71..LB..(DX,GL,GT) |
81551-12720 |
— | ||
|
81554
|
81554
81554-12710
Gasket, Rear Combination Lamp Body, Rh
[03.1979 - 08.1981] AE70,KE70,TE70,71..LB |
81554-12710 |
— | ||
|
81555
|
81555
81555-12710
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[03.1979 - 09.1980] AE70,KE70,TE70,71..LB |
81555-12710 |
— | ||
|
81555
|
81555
81555-12711
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1980 - 08.1981] AE70,KE70,TE70,71..LB |
81555-12711 |
— | ||
|
81561
|
81561
81561-12720 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [03.1979 - 08.1981] AE70,KE70,TE70,71..LB..(DX,GL,GT) |
81561-12720 |
US $195.10 |
||
|
81564
|
81564
81554-12710
Gasket, Rear Combination Lamp Body, Rh
[03.1979 - 08.1981] AE70,KE70,TE70,71..LB |
81554-12710 |
— | ||
|
81565
|
81565
81565-12710
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[03.1979 - 08.1981] AE70,KE70,TE70,71..LB |
81565-12710 |
— | ||
|
8271112150
|
8271112150
82711-12150 Wire, Fuse To Fuse(for Combustion Heater) |
82711-12150 |
US $4.02 |
||
|
8271112220
|
8271112220
82711-12220 Wire, Fuse To Fuse(for Combustion Heater) |
82711-12220 |
US $4.02 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9351014020
|
9351014020
93510-14020 New Genuine Part |
93510-14020 |
US $2.18 |
||
