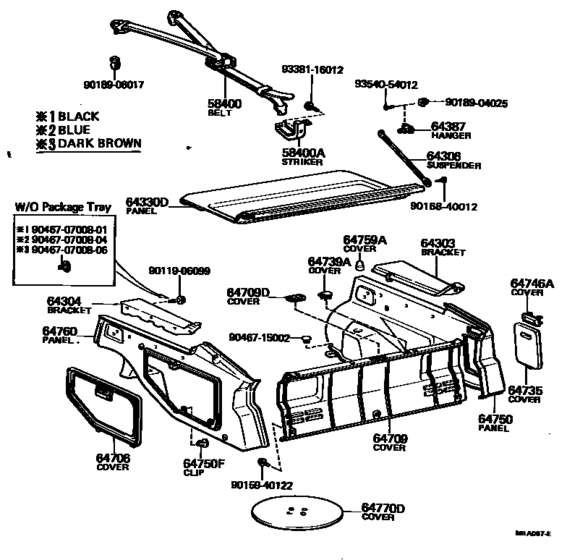

Deck Board & Deck Trim Cover ([03.1979 - 04.1983] (7903-8304)CP) Diagram Toyota COROLLA
- Year
- 1979 - 1983
- Sales region
- Japan
- Frame
- TE71
- grade
- LVN
- body
- CP
- ENGINE
- 2TGEU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 03.1979
- To
- 04.1983
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58400
|
58400
58400-12021
Belt Assy, Luggage Hold, No.1
[08.1981 - 04.1983] AE70,TE71..(CP,LB)..(GT,LVN,LVS,SE,SR,SX) |
58400-12021 |
— | ||
|
58400A
|
58400A
58461-12010 Striker, Luggage Hold BeltLUGGAGE HOLD BELT [08.1981 - 04.1983] AE70,TE71..(CP,LB)..(GT,LVN,LVS,SE,SR,SX) |
58461-12010 |
US $9.90 |
||
|
64303
|
64303
64301-12010-01
Bracket Sub-Assy, Package Tray, Rh
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLACK,BLACK,TRIM2# |
64301-12010-01 |
— | ||
|
64303
|
64303
64301-12010-04
Bracket Sub-Assy, Package Tray, Rh
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLUE,BLUE,TRIM8# |
64301-12010-04 |
— | ||
|
64303
|
64303
64301-12010-06
Bracket Sub-Assy, Package Tray, Rh
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP DARK BROWN,BROWN,TRIM4# |
64301-12010-06 |
— | ||
|
64304
|
64304
64302-12010-01 Bracket Sub-Assy, Package Tray, LhPACKAGE TRAY, LH [03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLACK,BLACK,TRIM2# |
64302-12010-01 |
US $107.74 |
||
|
64304
|
64304
64302-12010-04
Bracket Sub-Assy, Package Tray, Lh
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLUE,BLUE,TRIM8# |
64302-12010-04 |
— | ||
|
64304
|
64304
64302-12010-06 Bracket Sub-Assy, Package Tray, LhPACKAGE TRAY, LH [03.1979 - 04.1983] AE70,KE70,TE70,71..CP DARK BROWN,BROWN,TRIM4# |
64302-12010-06 |
US $107.74 |
||
|
64306
|
64306
64367-12010 Suspender Sub-Assy, Package Tray Trim[03.1979 - 04.1983] AE70,KE70,TE70,71..CP |
64367-12010 |
US $4.22 |
||
|
64330D
|
64330D
64330-12400-01
Panel Assy, Package Tray Trim
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLACK,BLACK,TRIM2# |
64330-12400-01 |
— | ||
| replacement | |||||
|
64330D
|
64330D
64330-12400-B0
Panel Assy, Package Tray Trim
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLACK,BLACK,TRIM2# |
64330-12400-B0 |
— | ||
|
64330D
|
64330D
64330-12400-04
Panel Assy, Package Tray Trim
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLUE,BLUE,TRIM8# |
64330-12400-04 |
— | ||
| replacement | |||||
|
64330D
|
64330D
64330-12400-B0
Panel Assy, Package Tray Trim
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLUE,BLUE,TRIM8# |
64330-12400-B0 |
— | ||
|
64330D
|
64330D
64330-12400-06 Panel Assy, Package Tray TrimPACKAGE TRAY TRIM [03.1979 - 04.1983] AE70,KE70,TE70,71..CP DARK BROWN,BROWN,TRIM4# |
64330-12400-06 |
US $149.97 |
||
| replacement | |||||
|
64330D
|
64330D
64330-12400-B0
Panel Assy, Package Tray Trim
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP DARK BROWN,BROWN,TRIM4# |
64330-12400-B0 |
— | ||
|
64387
|
64387
64381-12010 Hanger, Package Tray Trim[03.1979 - 04.1983] AE70,KE70,TE70,71..CP |
64381-12010 |
US $3.64 |
||
|
64706
|
64706
64707-12020-01
Cover Sub-Assy, Quarter Trim, Jack
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB BLACK,BLACK,TRIM2# |
64707-12020-01 |
— | ||
| replacement | |||||
|
64706
|
64706
64707-12020-C0
Cover Sub-Assy, Quarter Trim, Jack
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB BLACK,BLACK,TRIM2# |
64707-12020-C0 |
— | ||
|
64706
|
64706
64707-12020-04
Cover Sub-Assy, Quarter Trim, Jack
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB BLUE,BLUE,TRIM8# |
64707-12020-04 |
— | ||
|
64706
|
64706
64707-12020-06 Cover Sub-Assy, Quarter Trim, JackQUARTER TRIM, JACK [03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB DARK BROWN,BROWN,TRIM4# |
64707-12020-06 |
US $25.63 |
||
| replacement | |||||
|
64706
|
64706
64707-12020-E0
Cover Sub-Assy, Quarter Trim, Jack
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB DARK BROWN,BROWN,TRIM4# |
64707-12020-E0 |
— | ||
|
64709
|
64709
64706-12010-01 Cover Sub-Assy, Lower Back PanelLOWER BACK PANEL [03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLACK,BLACK,TRIM2# |
64706-12010-01 |
US $215.49 |
||
|
64709
|
64709
64706-12010-04 Cover Sub-Assy, Lower Back PanelLOWER BACK PANEL [03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLUE,BLUE,TRIM8# |
64706-12010-04 |
US $215.49 |
||
|
64709
|
64709
64706-12010-06
Cover Sub-Assy, Lower Back Panel
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP DARK BROWN,BROWN,TRIM4# |
64706-12010-06 |
— | ||
|
64709D
|
64709D
64749-12020-01 Cover, Back Door StrikerBACK DOOR STRIKER [03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB BLACK,BLACK,TRIM2# |
64749-12020-01 |
US $12.38 |
||
|
64709D
|
64709D
64749-12020-04 Cover, Back Door StrikerBACK DOOR STRIKER [03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB BLUE,BLUE,TRIM8# |
64749-12020-04 |
US $12.38 |
||
|
64709D
|
64709D
64749-12020-06 Cover, Back Door StrikerBACK DOOR STRIKER [03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB DARK BROWN,BROWN,TRIM4# |
64749-12020-06 |
US $12.38 |
||
|
64735
|
64735
64735-12010-01
Cover, Deck Trim Side Service Hole
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLACK,BLACK,TRIM2# |
64735-12010-01 |
— | ||
|
64735
|
64735
64735-12010-04
Cover, Deck Trim Side Service Hole
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLUE,BLUE,TRIM8# |
64735-12010-04 |
— | ||
|
64735
|
64735
64735-12010-06
Cover, Deck Trim Side Service Hole
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP DARK BROWN,BROWN,TRIM4# |
64735-12010-06 |
— | ||
|
64750
|
64750
64731-12900-01
Panel Assy, Deck Side Trim, Rh
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLACK,BLACK,TRIM2# |
64731-12900-01 |
— | ||
|
64750
|
64750
64731-12900-04
Panel Assy, Deck Side Trim, Rh
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLUE,BLUE,TRIM8# |
64731-12900-04 |
— | ||
|
64750
|
64750
64731-12900-06
Panel Assy, Deck Side Trim, Rh
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP DARK BROWN,BROWN,TRIM4# |
64731-12900-06 |
— | ||
|
64750F
|
64750F
90467-10005-01 Clip(For Front Fender Apron Seal)[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB BLACK,BLACK,TRIM2# |
90467-10005-01 |
US $3.76 |
||
|
64750F
|
64750F
90467-10005-04 Clip (For Roof Side Trim Garnish)[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB BLUE,BLUE,TRIM8# |
90467-10005-04 |
US $3.06 |
||
| replacement | |||||
|
64750F
|
64750F
90467-10005-14 Clip (For Roof Side Trim Garnish)[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB BLUE,BLUE,TRIM8# |
90467-10005-14 |
US $2.62 |
||
|
64750F
|
64750F
90467-10005-16 Clip (For Roof Side Trim Garnish)[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB DARK BROWN,BROWN,TRIM4# |
90467-10005-16 |
US $3.06 |
||
|
64759A
|
64759A
64759-14010-11
Cover, Shock Absorber Head
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB BLACK,BLACK,TRIM2# |
64759-14010-11 |
— | ||
|
64759A
|
64759A
64759-14010-14
Cover, Shock Absorber Head
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB BLUE,BLUE,TRIM8# |
64759-14010-14 |
— | ||
| replacement | |||||
|
64759A
|
64759A
64759-14010-11
Cover, Shock Absorber Head
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB BLUE,BLUE,TRIM8# |
64759-14010-11 |
— | ||
|
64759A
|
64759A
64759-14010-46
Cover, Shock Absorber Head
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB DARK BROWN,BROWN,TRIM4# |
64759-14010-46 |
— | ||
| replacement | |||||
|
64759A
|
64759A
64759-14010-11
Cover, Shock Absorber Head
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB DARK BROWN,BROWN,TRIM4# |
64759-14010-11 |
— | ||
|
64760
|
64760
64732-12900-01 Panel Assy, Deck Side Trim, LhDECK SIDE TRIM, LH [03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLACK,BLACK,TRIM2# |
64732-12900-01 |
US $186.37 |
||
|
64760
|
64760
64732-12900-04
Panel Assy, Deck Side Trim, Lh
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP BLUE,BLUE,TRIM8# |
64732-12900-04 |
— | ||
|
64760
|
64760
64732-12900-06
Panel Assy, Deck Side Trim, Lh
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP DARK BROWN,BROWN,TRIM4# |
64732-12900-06 |
— | ||
|
64770D
|
64770D
64770-20030
Cover Assy, Spare Wheel
[03.1979 - 04.1983] AE70,KE70,TE70,71..CP,LB |
64770-20030 |
— | ||
|
9011906099
|
9011906099
90119-06099
New Genuine Part
|
90119-06099 |
— | ||
| replacement | |||||
|
9011906099
|
9011906099
90119-06306 Bolt, Back Window Stay |
90119-06306 |
US $2.15 |
||
|
9015940122
|
9015940122
90159-40122 New Genuine Part |
90159-40122 |
from US $2.33 |
||
|
9016840012
|
9016840012
90168-40012 SCREW |
90168-40012 |
US $2.15 |
||
|
9018904025
|
9018904025
90189-04025 CLIP |
90189-04025 |
US $1.75 |
||
|
9018906017
|
9018906017
90189-06017 New Genuine Part |
90189-06017 |
US $2.33 |
||
|
9046715002
|
9046715002
90467-15002 Clip(For Deck Side Trim Panel) |
90467-15002 |
US $3.79 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.51 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.61 |
||
|
904670700801
|
904670700801
90467-07008-01 New Genuine Part |
90467-07008-01 |
US $2.91 |
||
|
904670700804
|
904670700804
90467-07008-04 New Genuine Part |
90467-07008-04 |
US $2.91 |
||
|
904670700806
|
904670700806
90467-07008-06 New Genuine Part |
90467-07008-06 |
US $2.91 |
||
