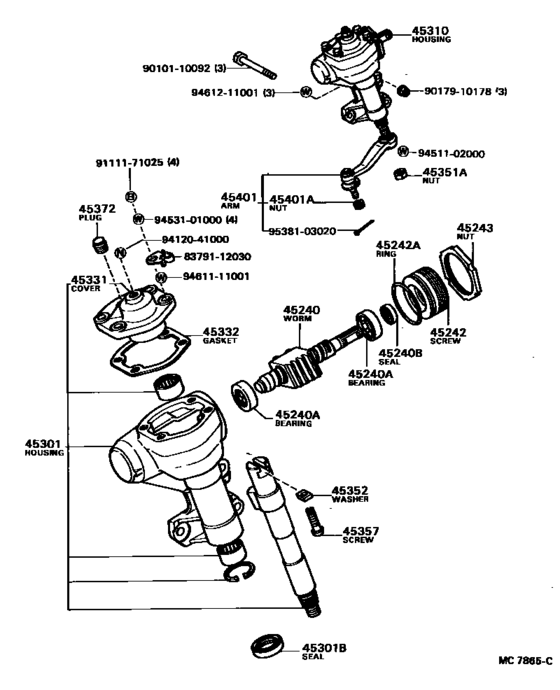

Front Steering Gear & Link ([08.1981 - 04.1983] (8108-8304)TE71) Diagram Toyota COROLLA
- Year
- 1979 - 1983
- Sales region
- Japan
- Frame
- TE71
- grade
- LVN
- body
- CP
- ENGINE
- 2TGEU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 03.1979
- To
- 04.1983
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45240
|
45240
45240-12110 Worm Assy, SteeringSTEERING [08.1981 - 04.1983] TE71 VARIABLE TYPE |
45240-12110 |
US $232.96 |
||
|
45240
|
45240
45240-12140 Worm Assy, SteeringSTEERING [08.1979 - 08.1981] AE70,TE70,71..GT,LVN,SR CONSTANT TYPE |
45240-12140 |
US $259.17 |
||
| replacement | |||||
|
45240
|
45240
45240-22011 Worm Assy, Steering[08.1979 - 08.1981] AE70,TE70,71..GT,LVN,SR CONSTANT TYPE |
45240-22011 |
US $298.48 |
||
|
45240
|
45240
45240-22010 Worm Assy, SteeringSTEERING [03.1979 - 08.1979] AE70,TE71..GT,LVN,SR CONSTANT TYPE |
45240-22010 |
US $259.17 |
||
| replacement | |||||
|
45240
|
45240
45240-22011 Worm Assy, Steering[03.1979 - 08.1979] AE70,TE71..GT,LVN,SR CONSTANT TYPE |
45240-22011 |
US $298.48 |
||
|
45240A
|
45240A
90369-40037 Bearing(For Steering Worm)[08.1981 - 04.1983] TE71 |
90369-40037 |
US $20.82 |
||
|
45240A
|
45240A
90369-40059 Bearing(For Steering Worm)[03.1979 - 08.1981] TE70..SR;AE70,KE71,TE71,73 |
90369-40059 |
US $9.32 |
||
| replacement | |||||
|
45240A
|
45240A
90369-40018 Bearing(For Steering Worm)[03.1979 - 08.1981] TE70..SR;AE70,KE71,TE71,73 |
90369-40018 |
US $9.32 |
||
|
45240B
|
45240B
90311-17092
Seal, Oil(For Steering Worm)
[03.1979 - 08.1981] AE70,KE71,TE7# |
90311-17092 |
— | ||
|
45242
|
45242
45242-12041 Screw, Worm Bearing AdjustingWORM BEARING ADJUSTING [08.1981 - 04.1983] TE71 |
45242-12041 |
US $25.48 |
||
|
45242
|
45242
45242-22020
Screw, Worm Bearing Adjusting
[03.1979 - 08.1981] AE70,KE71,TE7# |
45242-22020 |
— | ||
|
45242A
|
45242A
90301-53181 Ring, O(For Bearing Guide Nut)[08.1981 - 04.1983] TE71 |
90301-53181 |
US $3.99 |
||
|
45243
|
45243
45243-22020
Nut, Worm Bearing Adjusting Screw Lock
[03.1979 - 08.1981] AE70,KE71,TE7# |
45243-22020 |
— | ||
|
45301
|
45301
45301-12150
Housing Sub-Assy, Steering Gear
[03.1979 - 08.1981] AE70,TE70,71..GT,LVN,SR |
45301-12150 |
— | ||
|
45301
|
45301
45301-12230 Housing Sub-Assy, Steering GearSTEERING GEAR [08.1981 - 04.1983] TE71 |
45301-12230 |
US $428.06 |
||
|
45301B
|
45301B
90310-28027 Seal, Oil(For Sector Shaft)[03.1979 - 08.1981] AE70,KE71,TE7# |
90310-28027 |
from US $3.40 |
||
|
45301B
|
45301B
90310-34003
Seal, Oil(For Sector Shaft)
[08.1981 - 04.1983] TE71 |
90310-34003 |
— | ||
|
45310
|
45310
45310-12131
Housing Assy, Steering Gear
[03.1979 - 08.1981] AE70,TE70,71..GT,LVN,SR CONSTANT TYPE |
45310-12131 |
— | ||
|
45310
|
45310
45310-12230 Housing Assy, Steering GearSTEERING GEAR [08.1981 - 04.1983] TE71 VARIABLE TYPE |
45310-12230 |
US $784.78 |
||
|
45331
|
45331
45304-12032 Cover, Sector Shaft EndSECTOR SHAFT END [08.1981 - 04.1983] TE71 ID=34.032-34.046 |
45304-12032 |
US $123.76 |
||
|
45331
|
45331
45304-12040 Cover, Sector Shaft EndSECTOR SHAFT END [08.1981 - 04.1983] TE71 ID=34.019-34.032 |
45304-12040 |
US $132.50 |
||
|
45331
|
45331
45304-12050 Cover, Sector Shaft EndSECTOR SHAFT END [08.1981 - 04.1983] TE71 ID=34.005-34.019 |
45304-12050 |
US $132.50 |
||
|
45331
|
45331
45304-20040 Cover, Sector Shaft EndSECTOR SHAFT END [03.1979 - 08.1981] TE70;AE70,TE71..GT,LVN,SR |
45304-20040 |
US $20.68 |
||
|
45332
|
45332
45332-12041 Gasket, Sector Shaft End CoverSECTOR SHAFT END COVER [08.1981 - 04.1983] TE71 |
45332-12041 |
US $8.15 |
||
|
45332
|
45332
45332-22020
Gasket, Sector Shaft End Cover
[03.1979 - 08.1981] AE70,KE71,TE7# |
45332-22020 |
— | ||
|
45351A
|
45351A
90170-20147 Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)[03.1979 - 08.1981] AE70,KE71,TE7# |
90170-20147 |
US $5.56 |
||
|
45352
|
45352
45352-12010
Washer, Sector Shaft Thrust
[08.1981 - 07.1987] CE7#,TE71 T=2.00 |
45352-12010 |
— | ||
|
45352
|
45352
45352-12020
Washer, Sector Shaft Thrust
[08.1981 - 07.1987] CE7#,TE71 T=2.04 |
45352-12020 |
— | ||
|
45352
|
45352
45352-12030 Washer, Sector Shaft ThrustSECTOR SHAFT THRUST [08.1981 - 07.1987] CE7#,TE71 T=2.08 |
45352-12030 |
US $3.35 |
||
|
45352
|
45352
45352-12040
Washer, Sector Shaft Thrust
[08.1981 - 07.1987] CE7#,TE71 T=2.12 |
45352-12040 |
— | ||
|
45352
|
45352
45352-12050
Washer, Sector Shaft Thrust
[08.1981 - 07.1987] CE7#,TE71 T=2.16 |
45352-12050 |
— | ||
|
45352
|
45352
45352-12060
Washer, Sector Shaft Thrust
[08.1981 - 07.1987] CE7#,TE71 T=2.20 |
45352-12060 |
— | ||
|
45352
|
45352
45352-14010
Washer, Sector Shaft Thrust
[03.1979 - 08.1981] AE70,KE71,TE7# 厚さ＝２．００,T=2.00 |
45352-14010 |
— | ||
| replacement | |||||
|
45352
|
45352
45352-12010
Washer, Sector Shaft Thrust
[03.1979 - 08.1981] AE70,KE71,TE7# 厚さ＝２．００,T=2.00 |
45352-12010 |
— | ||
|
45352
|
45352
45352-14020
Washer, Sector Shaft Thrust
[03.1979 - 08.1981] AE70,KE71,TE7# 厚さ＝２．０４,T=2.04 |
45352-14020 |
— | ||
| replacement | |||||
|
45352
|
45352
45352-12020
Washer, Sector Shaft Thrust
[03.1979 - 08.1981] AE70,KE71,TE7# 厚さ＝２．０４,T=2.04 |
45352-12020 |
— | ||
|
45352
|
45352
45352-14030 Washer, Sector Shaft Thrust[03.1979 - 08.1981] AE70,KE71,TE7# 厚さ＝２．０８,T=2.08 |
45352-14030 |
US $3.35 |
||
| replacement | |||||
|
45352
|
45352
45352-12030 Washer, Sector Shaft ThrustSECTOR SHAFT THRUST [03.1979 - 08.1981] AE70,KE71,TE7# 厚さ＝２．０８,T=2.08 |
45352-12030 |
US $3.35 |
||
|
45352
|
45352
45352-14040 Washer, Sector Shaft Thrust[03.1979 - 08.1981] AE70,KE71,TE7# 厚さ＝２．１２,T=2.12 |
45352-14040 |
US $3.35 |
||
| replacement | |||||
|
45352
|
45352
45352-12040
Washer, Sector Shaft Thrust
[03.1979 - 08.1981] AE70,KE71,TE7# 厚さ＝２．１２,T=2.12 |
45352-12040 |
— | ||
|
45352
|
45352
45352-14050 Washer, Sector Shaft Thrust[03.1979 - 08.1981] AE70,KE71,TE7# 厚さ＝２．１６,T=2.16 |
45352-14050 |
US $3.35 |
||
| replacement | |||||
|
45352
|
45352
45352-12050
Washer, Sector Shaft Thrust
[03.1979 - 08.1981] AE70,KE71,TE7# 厚さ＝２．１６,T=2.16 |
45352-12050 |
— | ||
|
45352
|
45352
45352-14060 Washer, Sector Shaft Thrust[03.1979 - 08.1981] AE70,KE71,TE7# 厚さ＝２．２０,T=2.20 |
45352-14060 |
US $3.35 |
||
| replacement | |||||
|
45352
|
45352
45352-12060
Washer, Sector Shaft Thrust
[03.1979 - 08.1981] AE70,KE71,TE7# 厚さ＝２．２０,T=2.20 |
45352-12060 |
— | ||
|
45357
|
45357
45357-12010
Screw, Sector Shaft Adjusting
[03.1979 - 08.1981] TE70;AE70,TE71..GT,LVN,SR |
45357-12010 |
— | ||
|
45372
|
45372
90930-03027
Plug, Steering Gear Housing Oil
[03.1979 - 08.1981] AE70,KE71,TE7# |
90930-03027 |
— | ||
|
45401
|
45401
45401-19175 Arm Sub-Assy, PitmanPITMAN [03.1979 - 08.1981] TE70..SR;AE70,KE71,TE71,73 |
45401-19175 |
US $87.36 |
||
|
45401
|
45401
45401-19215 Arm Sub-Assy, PitmanPITMAN [08.1981 - 04.1983] TE71 |
45401-19215 |
US $87.36 |
||
|
45401A
|
45401A
90171-12028 Nut, Castle(For Pitman Arm)[03.1979 - 08.1981] AE70,KE71,TE7# |
90171-12028 |
from US $1.37 |
||
|
8379112030
|
8379112030
83791-12030
New Genuine Part
|
83791-12030 |
— | ||
|
9010110092
|
9010110092
90101-10092 New Genuine Part |
90101-10092 |
US $3.49 |
||
|
9017910178
|
9017910178
90179-10178 New Genuine Part |
90179-10178 |
US $1.75 |
||
|
9111171025
|
9111171025
91111-71025
Bolt(For Strut Bar Setting)
|
91111-71025 |
— | ||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451102000
|
9451102000
94511-02000
New Genuine Part
|
94511-02000 |
— | ||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.43 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
||
