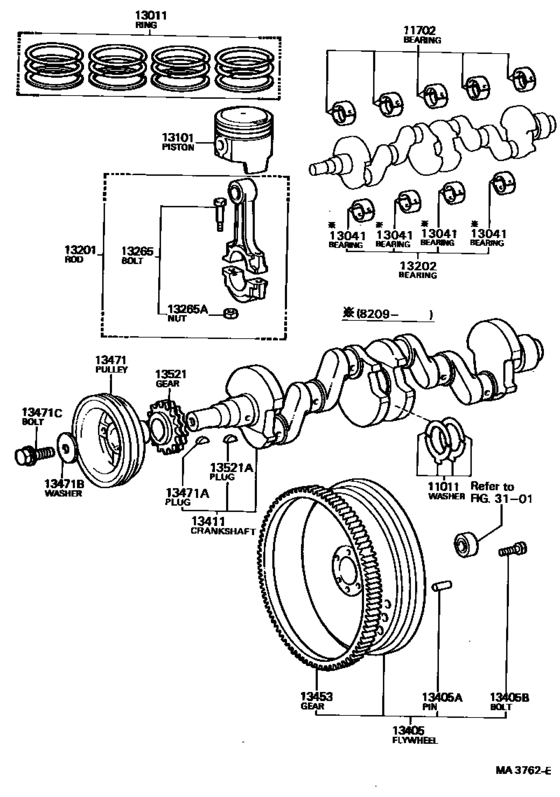

Crankshaft & Piston ([03.1979 - 04.1983] (7903-8304)2TGEU) Diagram Toyota COROLLA
- Year
- 1979 - 1983
- Sales region
- Japan
- Frame
- TE71
- grade
- GT
- body
- HT
- ENGINE
- 2TGEU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 03.1979
- To
- 04.1983
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[03.1979 - 08.1983] 12TJ,13TU,2TGEU..TE7# ＳＴＤ,STD |
11011-25010 |
from US $20.67 |
||
|
11011
|
11011
11012-25010 Washer Set, Crankshaft Thrust[03.1979 - 08.1983] 12TJ,13TU,2TGEU..TE7# O/S 0.125 |
11012-25010 |
US $40.62 |
||
|
11011
|
11011
11013-25010 Washer Set, Crankshaft Thrust[03.1979 - 08.1983] 12TJ,13TU,2TGEU..TE7# O/S 0.250 |
11013-25010 |
US $40.62 |
||
|
11702
|
11702
11702-88261
Bearing Set, Crankshaft
[03.1979 - 04.1983] 2TGEU..TE71 STD |
11702-88261 |
— | ||
|
11702
|
11702
11703-88261 Bearing Set, Crankshaft[03.1979 - 04.1983] 2TGEU..TE71 U/S 0.05 |
11703-88261 |
US $331.97 |
||
|
11702
|
11702
11704-88261 Bearing Set, Crankshaft[03.1979 - 04.1983] 2TGEU..TE71 U/S 0.25 |
11704-88261 |
US $331.97 |
||
|
11702
|
11702
11705-88261 Bearing Set, Crankshaft[03.1979 - 04.1983] 2TGEU..TE71 U/S 0.50 |
11705-88261 |
US $331.97 |
||
|
13011
|
13011
13011-88262 Ring Set, Piston[03.1979 - 04.1983] 2TGEU..TE71 STD |
13011-88262 |
US $208.21 |
||
|
13011
|
13011
13013-88262 Ring Set, Piston[03.1979 - 04.1983] 2TGEU..TE71 O/S 0.50 |
13013-88262 |
US $208.21 |
||
|
13011
|
13011
13014-88262
Ring Set, Piston
[03.1979 - 04.1983] 2TGEU..TE71 O/S 0.75 |
13014-88262 |
— | ||
|
13011
|
13011
13015-88262 Ring Set, Piston[03.1979 - 04.1983] 2TGEU..TE71 O/S 1.00 |
13015-88262 |
US $208.21 |
||
|
13041
|
13041
13041-88281-03 Bearing, Connecting Rod[09.1982 - 04.1983] 2TGEU..TE71 MARK"3",MARK 3 |
13041-88281-03 |
US $24.17 |
||
|
13041
|
13041
13041-88281-04 Bearing, Connecting Rod[09.1982 - 04.1983] 2TGEU..TE71 MARK"4",MARK 4 |
13041-88281-04 |
US $24.17 |
||
|
13041
|
13041
13041-88281-05 Bearing, Connecting Rod[09.1982 - 04.1983] 2TGEU..TE71 MARK"5",MARK 5 |
13041-88281-05 |
US $24.17 |
||
|
13041
|
13041
13041-88281-06 Bearing, Connecting Rod[09.1982 - 04.1983] 2TGEU..TE71 MARK"6",MARK 6 |
13041-88281-06 |
US $24.17 |
||
|
13041
|
13041
13041-88281-07 Bearing, Connecting Rod[09.1982 - 04.1983] 2TGEU..TE71 MARK"7",MARK 7 |
13041-88281-07 |
US $24.17 |
||
|
13101
|
13101
13101-88261
Piston Sub-Assy, W/pin
[03.1979 - 08.1981] 2TGEU..TE71 STD |
13101-88261 |
— | ||
|
13101
|
13101
13101-88262 Piston Sub-Assy, W/pin[08.1981 - 04.1983] 2TGEU..TE71 STD |
13101-88262 |
US $158.70 |
||
|
13101
|
13101
13103-88261 Piston Sub-Assy, W/pin[03.1979 - 08.1981] 2TGEU..TE71 O/S 0.50 |
13103-88261 |
US $141.23 |
||
|
13101
|
13101
13103-88262 Piston Sub-Assy, W/pin[08.1981 - 04.1983] 2TGEU..TE71 O/S 0.50 |
13103-88262 |
US $158.70 |
||
|
13101
|
13101
13104-88261
Piston Sub-Assy, W/pin
[03.1979 - 08.1981] 2TGEU..TE71 O/S 0.75 |
13104-88261 |
— | ||
|
13101
|
13101
13104-88262
Piston Sub-Assy, W/pin
[08.1981 - 04.1983] 2TGEU..TE71 O/S 0.75 |
13104-88262 |
— | ||
|
13101
|
13101
13105-88261 Piston Sub-Assy, W/pin[03.1979 - 08.1981] 2TGEU..TE71 O/S 1.00 |
13105-88261 |
US $141.23 |
||
|
13101
|
13101
13105-88262 Piston Sub-Assy, W/pin[08.1981 - 04.1983] 2TGEU..TE71 O/S 1.00 |
13105-88262 |
US $158.70 |
||
|
13201
|
13201
13201-25010 Rod Sub-Assy, Connecting[03.1979 - 08.1982] 12TJ,13TU,2TGEU..TE7# |
13201-25010 |
US $116.48 |
||
|
13201
|
13201
13201-71011
Rod Sub-Assy, Connecting
[09.1982 - 04.1983] 2TGEU..TE71 |
13201-71011 |
— | ||
|
13202
|
13202
13202-88261 Bearing Set, Connecting Rod[03.1979 - 09.1982] 2TGEU..TE71 STD |
13202-88261 |
US $122.30 |
||
|
13202
|
13202
13203-88261
Bearing Set, Connecting Rod
[03.1979 - 09.1982] 2TGEU..TE71 U/S 0.05 |
13203-88261 |
— | ||
|
13202
|
13202
13203-88280 Bearing Set, Connecting Rod[09.1982 - 04.1983] 2TGEU..TE71 U/S 0.05 |
13203-88280 |
US $164.53 |
||
|
13202
|
13202
13204-88261 Bearing Set, Connecting Rod[03.1979 - 09.1982] 2TGEU..TE71 U/S 0.25 |
13204-88261 |
US $148.51 |
||
|
13202
|
13202
13204-88280 Bearing Set, Connecting Rod[09.1982 - 04.1983] 2TGEU..TE71 U/S 0.25 |
13204-88280 |
US $164.53 |
||
|
13202
|
13202
13205-88261 Bearing Set, Connecting Rod[03.1979 - 09.1982] 2TGEU..TE71 U/S 0.50 |
13205-88261 |
US $148.51 |
||
|
13202
|
13202
13205-88280 Bearing Set, Connecting Rod[09.1982 - 04.1983] 2TGEU..TE71 U/S 0.50 |
13205-88280 |
US $164.53 |
||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[03.1979 - 08.1983] 12TJ,13TU,2TGEU..TE7# |
13265-29025 |
from US $8.81 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[03.1983 - 08.1983] 12TJ,2TGEU..TE7# |
90170-09001 |
US $2.72 |
||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[03.1979 - 05.1980] 4K#..KE7#; 12TJ,13TU,2TGEU..TE7# |
90170-09195 |
US $3.20 |
||
|
13405
|
13405
13405-29067 Flywheel Sub-Assy[03.1979 - 08.1983] 12TJ,13TU,2TGEU..TE7#..MTM N=115 |
13405-29067 |
US $327.60 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[03.1979 - 07.1987] 1C..CE7#..5F 長さ＝２３，外径＝８,L=23,OD=8; 12TJ,13TU,2TGEU..TE7#..MTM 長さ＝２３，外径＝８,L=23,OD=8 |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[03.1979 - 08.1983] 3AU..AE70..MTM; 12TJ,13TU,2TGEU..TE7#..MTM |
90105-10042 |
from US $1.31 |
||
|
13411
|
13411
13411-26900 Crankshaft[03.1979 - 04.1979] 2TGEU..TE71 |
13411-26900 |
US $1,183.73 |
||
| replacement | |||||
|
13411
|
13411
13411-27901 Crankshaft[03.1979 - 04.1979] 2TGEU..TE71 |
13411-27901 |
US $1,186.64 |
||
|
13411
|
13411
13411-27904 Crankshaft[04.1979 - 04.1983] 2TGEU..TE71 |
13411-27904 |
US $1,307.49 |
||
| replacement | |||||
|
13411
|
13411
13411-27901 Crankshaft[04.1979 - 04.1983] 2TGEU..TE71 |
13411-27901 |
US $1,186.64 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[03.1979 - 08.1983] 12TJ,13TU,2TGEU..TE7#..MTM N=115 |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13471-25021
Pulley, Crankshaft
[03.1979 - 04.1983] 2TGEU..TE71 |
13471-25021 |
— | ||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[03.1979 - 09.1986] 4K#,5KJ..KE7#; 12TJ,13TU,2TGEU..TE7# |
90280-05010 |
from US $1.89 |
||
|
13471B
|
13471B
90209-13003 Washer, Plate(For Crankshaft Pulley Set)[03.1979 - 07.1987] 4K#,5KJ..KE7#; 12TJ,13TU,2TGEU..TE7# |
90209-13003 |
from US $2.84 |
||
|
13471C
|
13471C
90105-12001 Bolt(For Crankshaft Pulley Set)[03.1979 - 12.1979] 2TGEU..TE71 W/COOLER |
90105-12001 |
US $4.80 |
||
| replacement | |||||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[03.1979 - 12.1979] 2TGEU..TE71 W/COOLER |
90105-12051 |
from US $2.73 |
||
|
13471C
|
13471C
90105-12050
Bolt(For Crankshaft Pulley Set)
[03.1979 - 09.1979] 4K#..KE7#; 12TJ,13TU,2TGEU..TE7# |
90105-12050 |
— | ||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[12.1979 - 08.1983] 12TJ,13TU,2TGEU..TE7# |
90105-12051 |
from US $2.73 |
||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[03.1979 - 08.1983] 12TJ,13TU,2TGEU..TE7# N=18 |
13521-33010 |
US $45.95 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[03.1979 - 09.1986] 3AU..AE70; 4K#,5KJ..KE7#; 12TJ,13TU,2TGEU..TE7# |
90280-05010 |
from US $1.89 |
||
