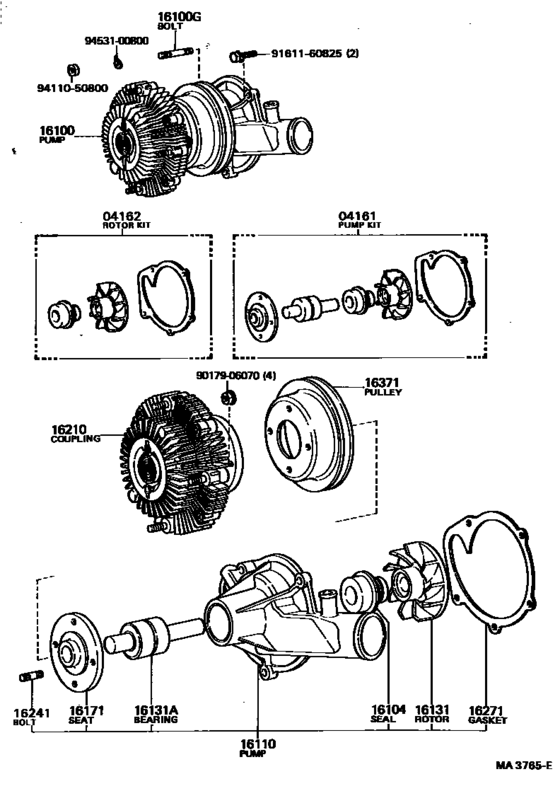

Water Pump ([03.1979 - 04.1983] (7903-8304)2TGEU) Diagram Toyota COROLLA
- Year
- 1979 - 1983
- Sales region
- Japan
- Frame
- TE71
- grade
- GT
- body
- HT
- ENGINE
- 2TGEU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 03.1979
- To
- 04.1983
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04161
|
04161
04161-28010
Pump Kit, Water
[08.1979 - 08.1981] 12TJ,13TU,2TGEU..TE7# |
04161-28010 |
— | ||
| replacement | |||||
|
04161
|
04161
04161-28012
Pump Kit, Water
[08.1979 - 08.1981] 12TJ,13TU,2TGEU..TE7# |
04161-28012 |
— | ||
|
04161
|
04161
04161-28011 Pump Kit, Water[08.1981 - 01.1982] 12TJ,2TGEU..TE7# |
04161-28011 |
US $82.99 |
||
| replacement | |||||
|
04161
|
04161
04161-28012
Pump Kit, Water
[08.1981 - 01.1982] 12TJ,2TGEU..TE7# |
04161-28012 |
— | ||
|
04161
|
04161
04161-28012
Pump Kit, Water
[01.1982 - 08.1983] 12TJ,2TGEU..TE7# |
04161-28012 |
— | ||
|
04162
|
04162
04162-28010 Rotor Kit, Water PumpWATER PUMP [08.1979 - 08.1981] 12TJ,13TU,2TGEU..TE7# |
04162-28010 |
US $21.99 |
||
| replacement | |||||
|
04162
|
04162
04162-28021
Rotor Kit, Water Pump
[08.1979 - 08.1981] 12TJ,13TU,2TGEU..TE7# |
04162-28021 |
— | ||
|
04162
|
04162
04162-28020
Rotor Kit, Water Pump
[08.1981 - 01.1982] 12TJ,2TGEU..TE7# |
04162-28020 |
— | ||
| replacement | |||||
|
04162
|
04162
04162-28021
Rotor Kit, Water Pump
[08.1981 - 01.1982] 12TJ,2TGEU..TE7# |
04162-28021 |
— | ||
|
04162
|
04162
04162-28021
Rotor Kit, Water Pump
[01.1982 - 08.1983] 12TJ,2TGEU..TE7# |
04162-28021 |
— | ||
|
16100
|
16100
16100-88260
Pump Assy, Engine Water
[03.1979 - 04.1983] 2TGEU..TE71 |
16100-88260 |
— | ||
|
16100G
|
16100G
90072-11622
Bolt, Stud(For Water Pump Set)
[03.1979 - 04.1983] 2TGEU..TE71 L=59,S=9&11 |
90072-11622 |
— | ||
|
16104
|
16104
16104-41110
Seal Set, Water Pump
[03.1979 - 11.1979] 3AU..AE70; 12TJ,13TU,2TGEU..TE7# |
16104-41110 |
— | ||
| replacement | |||||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[03.1979 - 11.1979] 3AU..AE70; 12TJ,13TU,2TGEU..TE7# |
16104-15020 |
US $22.13 |
||
|
16104
|
16104
16104-41111
Seal Set, Water Pump
[11.1979 - 02.1980] 4K#..KE7#; 2TGEU..TE71 |
16104-41111 |
— | ||
| replacement | |||||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[11.1979 - 02.1980] 4K#..KE7#; 2TGEU..TE71 |
16104-15020 |
US $22.13 |
||
|
16110
|
16110
16110-88260
Pump Assy, Water, W/o Coupling
[03.1979 - 04.1983] 2TGEU..TE71 |
16110-88260 |
— | ||
|
16131
|
16131
16131-26010
Rotor, Water Pump
[03.1979 - 08.1983] 12TJ,13TU,2TGEU..TE7# |
16131-26010 |
— | ||
|
16131A
|
16131A
16140-38011
Bearing, Water Pump
[03.1979 - 08.1983] 12TJ,13TU,2TGEU..TE7# WPB16101BBR |
16140-38011 |
— | ||
| replacement | |||||
|
16131A
|
16131A
90029-36834
Bearing, Water Pump
[03.1979 - 08.1983] 12TJ,13TU,2TGEU..TE7# WPB16101BBR |
90029-36834 |
— | ||
|
16171
|
16171
16171-26021 Seat, Water Pump Pulley[03.1979 - 05.1982] 3AU..AE70; 12TJ,13TU,2TGEU..TE7# |
16171-26021 |
US $21.40 |
||
|
16210
|
16210
16210-28020
Coupling Assy, Fluid
[03.1979 - 08.1981] 3AU..AE70; 12TJ,13TU,2TGEU..TE7# |
16210-28020 |
— | ||
|
16241
|
16241
16241-28020 Bolt, Stud(For Water Pump Coupling)[11.1979 - 04.1983] 2TGEU..TE71 |
16241-28020 |
US $4.19 |
||
|
16241
|
16241
90116-06008 Bolt, Stud(For Water Pump Coupling)[03.1979 - 11.1979] 12TJ,13TU,2TGEU..TE7# |
90116-06008 |
US $2.48 |
||
| replacement | |||||
|
16241
|
16241
16241-28020 Bolt, Stud(For Water Pump Coupling)[03.1979 - 11.1979] 12TJ,13TU,2TGEU..TE7# |
16241-28020 |
US $4.19 |
||
|
16271
|
16271
16129-25010 Gasket, Water PumpWATER PUMP [03.1979 - 11.1979] 2TGEU..TE71 |
16129-25010 |
US $11.21 |
||
| replacement | |||||
|
16271
|
16271
16129-25013
Gasket, Water Pump
[03.1979 - 11.1979] 2TGEU..TE71 |
16129-25013 |
— | ||
|
16271
|
16271
16129-25011
Gasket, Water Pump
[11.1979 - 01.1982] 12TJ,13TU,2TGEU..TE7# |
16129-25011 |
— | ||
| replacement | |||||
|
16271
|
16271
16129-25013
Gasket, Water Pump
[11.1979 - 01.1982] 12TJ,13TU,2TGEU..TE7# |
16129-25013 |
— | ||
|
16271
|
16271
16129-25012 Gasket, Water Pump[01.1982 - 08.1983] 12TJ,2TGEU..TE7# |
16129-25012 |
US $11.36 |
||
| replacement | |||||
|
16271
|
16271
16129-25013
Gasket, Water Pump
[01.1982 - 08.1983] 12TJ,2TGEU..TE7# |
16129-25013 |
— | ||
|
16371
|
16371
16173-26021
Pulley, Fan
[03.1979 - 05.1982] 2TGEU..TE71 |
16173-26021 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
US $2.56 |
||
