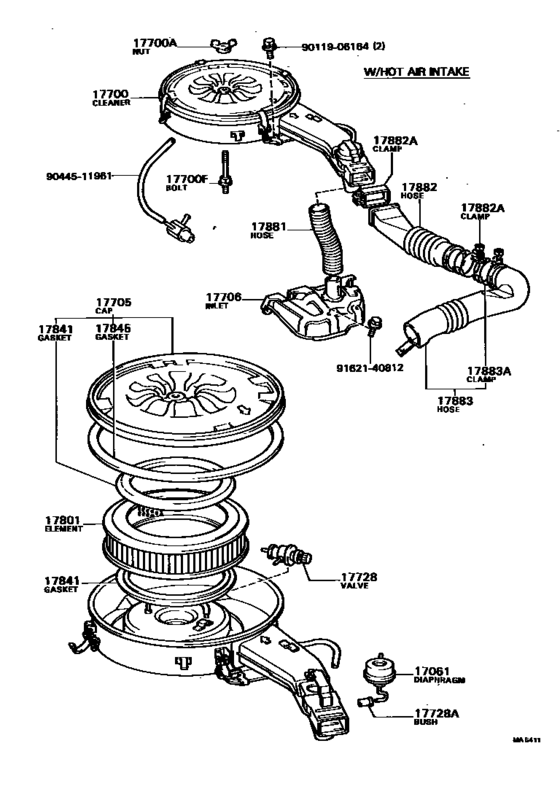

Air Cleaner ([08.1981 - 05.1983] (8108-8305)2T..EUG) Diagram Toyota COROLLA
- Year
- 1979 - 1983
- Sales region
- Europe
- Frame
- TE71
- grade
- DX
- body
- CP
- ENGINE
- 2T
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 05.1983
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-26010 Diaphragm Sub-Assy[08.1981 - 05.1983] 3TC..TE72..DX,SE;2T,2TB..TE71..EUG |
17061-26010 |
US $68.43 |
||
|
17700
|
17700
17700-26211
Cleaner Assy, Air
[08.1979 - 08.1981] 2T..TE71..EUG W/HOT AIR INTAKE |
17700-26211 |
— | ||
|
17700
|
17700
17700-26300
Cleaner Assy, Air
[08.1981 - 05.1983] 2T..TE71..EUG |
17700-26300 |
— | ||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[08.1979 - 02.1985] 2T,3T#..TE7# |
90175-06003 |
from US $1.27 |
||
|
17700F
|
17700F
90116-06222 Bolt, Stud(For Air Cleaner Setting)[08.1979 - 02.1985] 2T,3T#..TE7# |
90116-06222 |
US $3.32 |
||
|
17705
|
17705
17705-25012
Cap Sub-Assy, Air Cleaner
[08.1979 - 08.1980] 2T,3T#..TE7# |
17705-25012 |
— | ||
|
17705
|
17705
17705-25013
Cap Sub-Assy, Air Cleaner
[08.1980 - 08.1981] 2T,3T#..TE7# |
17705-25013 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-26080
Cap Sub-Assy, Air Cleaner
[08.1980 - 08.1981] 2T,3T#..TE7# |
17705-26080 |
— | ||
|
17705
|
17705
17705-26080
Cap Sub-Assy, Air Cleaner
[08.1981 - 04.1982] 2T..TE71..EUR,GEN,SAA |
17705-26080 |
— | ||
|
17706
|
17706
17752-25010
Inlet Sub-Assy, Air Cleaner, No.2
[08.1979 - 08.1981] 2TB..TE71..GEN W/HOT AIR INTAKE; 2T,2TB..TE71..EUG W/HOT AIR INTAKE |
17752-25010 |
— | ||
|
17706
|
17706
17902-27032 Inlet Sub-Assy, Air Cleaner, No.2[08.1981 - 05.1983] 2T,2TB..TE71..EUG W/HOT AIR INTAKE |
17902-27032 |
US $84.45 |
||
|
17728
|
17728
17728-26040
Valve, Thermostatic
[08.1981 - 05.1983] 2T..TE71..EUG |
17728-26040 |
— | ||
|
17728A
|
17728A
90386-03001
Bush(For Air Cleaner)
[08.1981 - 05.1983] 3TC..TE72..DX,SE;2T,2TB..TE71..EUG |
90386-03001 |
— | ||
|
17801
|
17801
17801-25010 Element Sub-Assy, Air Cleaner Filter[08.1979 - 02.1985] 2T,3T#..TE7# |
17801-25010 |
from US $20.82 |
||
|
17841
|
17841
17841-31020
Gasket, Filter Element
[08.1979 - 02.1985] 2T,3T#..TE7# |
17841-31020 |
— | ||
|
17845
|
17845
17845-25010
Gasket, Air Cleaner Cap
[08.1979 - 10.1982] 2T,3T#..TE7# |
17845-25010 |
— | ||
| replacement | |||||
|
17845
|
17845
17845-42010
Gasket, Air Cleaner Cap
[08.1979 - 10.1982] 2T,3T#..TE7# |
17845-42010 |
— | ||
|
17845
|
17845
17845-42010
Gasket, Air Cleaner Cap
[10.1982 - 02.1985] 2T..TE71..SAA;3T#..TE72..4FC,5F;2T..TE71..LB..(3FC,5F);2T..TE71..CP,DV,SED,WG *G,L=990 |
17845-42010 |
— | ||
|
17881
|
17881
17881-26010
Hose, Air Cleaner, No.1
[08.1979 - 10.1980] 2T..TE71..EUG W/HOT AIR INTAKE |
17881-26010 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-34040
Hose, Air Cleaner, No.1
[08.1979 - 10.1980] 2T..TE71..EUG W/HOT AIR INTAKE |
17881-34040 |
— | ||
|
17881
|
17881
17881-26020
Hose, Air Cleaner, No.1
[10.1980 - 08.1981] 2T..TE71..LHD..3FC..GEN W/HOT AIR INTAKE; 2T..TE71..RHD..MTM..GEN W/HOT AIR INTAKE; 2T..TE71..EUG W/HOT AIR INTAKE |
17881-26020 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-26021
Hose, Air Cleaner, No.1
[10.1980 - 08.1981] 2T..TE71..LHD..3FC..GEN W/HOT AIR INTAKE; 2T..TE71..RHD..MTM..GEN W/HOT AIR INTAKE; 2T..TE71..EUG W/HOT AIR INTAKE |
17881-26021 |
— | ||
|
17882
|
17882
17881-28020
Hose, Air Cleaner, No.2
[08.1981 - 05.1983] 2T,2TB..TE71..EUG |
17881-28020 |
— | ||
|
17882A
|
17882A
90460-01003
Clamp(For Air Cleaner Hose, No.2)
[08.1981 - 05.1983] 2T,2TB..TE71..EUG CLEANER SIDE |
90460-01003 |
— | ||
|
17882A
|
17882A
96111-10560 Clamp Or Clip, Hose(For Radiator Outlet No.1)[08.1981 - 07.1987] 4K..KE70..EUG BODY SIDE; 2T,2TB..TE71..EUG BODY SIDE |
96111-10560 |
US $3.68 |
||
|
17883
|
17883
17882-12010 Hose, Air Cleaner, No.3AIR CLEANER, NO.3 [08.1981 - 07.1987] 4K..KE70..EUG; 2T,2TB..TE71..EUG |
17882-12010 |
US $32.91 |
||
|
17883A
|
17883A
90460-60001 Clamp(For Air Cleaner Hose, No.3)[08.1981 - 07.1987] 4K..KE70..EUG; 2T,2TB..TE71..EUG |
90460-60001 |
US $3.06 |
||
|
9011906164
|
9011906164
90119-06164
New Genuine Part
|
90119-06164 |
— | ||
| replacement | |||||
|
9011906164
|
9011906164
91631-40620 New Genuine Part |
91631-40620 |
US $2.56 |
||
|
9044511961
|
9044511961
90445-11961 Hose, No.1(For Air Injection System) |
90445-11961 |
US $12.38 |
||
| replacement | |||||
|
9044511961
|
9044511961
90445-11019 Hose, Vacuum |
90445-11019 |
US $7.86 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.60 |
||
