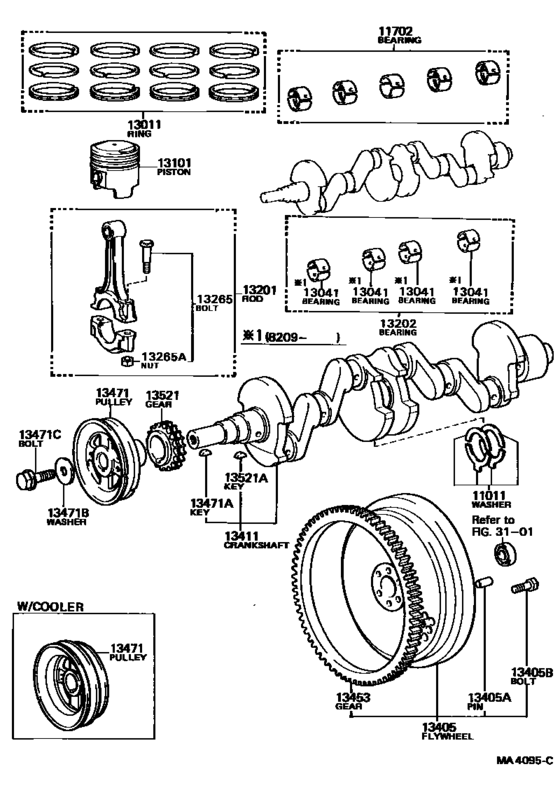

Crankshaft & Piston ([08.1979 - 05.1983] (7908-8305)2TG) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- Europe
- Frame
- TE71
- grade
- GT
- body
- CP
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[08.1979 - 02.1985] 2T#,3T#..TE7# STD,STD |
11011-25010 |
from US $20.67 |
||
|
11011
|
11011
11012-25010 Washer Set, Crankshaft Thrust[08.1979 - 02.1985] 2T#,3T#..TE7# O/S 0.125 |
11012-25010 |
US $40.62 |
||
|
11011
|
11011
11013-25010 Washer Set, Crankshaft Thrust[08.1979 - 02.1985] 2T#,3T#..TE7# O/S 0.250 |
11013-25010 |
US $40.62 |
||
|
11702
|
11702
11702-88261
Bearing Set, Crankshaft
[08.1979 - 05.1983] 2TG..TE71 STD |
11702-88261 |
— | ||
|
11702
|
11702
11703-88261 Bearing Set, Crankshaft[08.1979 - 05.1983] 2TG..TE71 U/S 0.05 |
11703-88261 |
US $331.97 |
||
|
11702
|
11702
11704-88261 Bearing Set, Crankshaft[08.1979 - 05.1983] 2TG..TE71 U/S 0.25 |
11704-88261 |
US $331.97 |
||
|
11702
|
11702
11705-88261 Bearing Set, Crankshaft[08.1979 - 05.1983] 2TG..TE71 U/S 0.50 |
11705-88261 |
US $331.97 |
||
|
13011
|
13011
13011-88222 Ring Set, PistonPISTON [08.1979 - 05.1983] 2TG..TE71 STD |
13011-88222 |
US $195.10 |
||
|
13011
|
13011
13013-88222 Ring Set, PistonPISTON [08.1979 - 05.1983] 2TG..TE71 O/S 0.50 |
13013-88222 |
US $195.10 |
||
|
13011
|
13011
13014-88222 Ring Set, PistonPISTON [08.1979 - 05.1983] 2TG..TE71 O/S 0.75 |
13014-88222 |
US $195.10 |
||
|
13011
|
13011
13015-88222 Ring Set, PistonPISTON [08.1979 - 05.1983] 2TG..TE71 O/S 1.00 |
13015-88222 |
US $195.10 |
||
|
13101
|
13101
13101-88223 Piston Sub-Assy, W/pinW/PIN [08.1979 - 05.1983] 2TG..TE71 STD |
13101-88223 |
US $147.06 |
||
|
13101
|
13101
13103-27011
Piston Sub-Assy, W/pin
[08.1979 - 01.1983] 2TG..TE71 O/S 0.50 |
13103-27011 |
— | ||
| replacement | |||||
|
13101
|
13101
13103-88223
Piston Sub-Assy, W/pin
[08.1979 - 01.1983] 2TG..TE71 O/S 0.50 |
13103-88223 |
— | ||
|
13101
|
13101
13104-27011 Piston Sub-Assy, W/pinW/PIN [08.1979 - 01.1983] 2TG..TE71 O/S 0.75 |
13104-27011 |
US $144.14 |
||
| replacement | |||||
|
13101
|
13101
13104-88223 Piston Sub-Assy, W/pinW/PIN [08.1979 - 01.1983] 2TG..TE71 O/S 0.75 |
13104-88223 |
US $147.06 |
||
|
13101
|
13101
13105-27011 Piston Sub-Assy, W/pinW/PIN [08.1979 - 01.1983] 2TG..TE71 O/S 1.00 |
13105-27011 |
US $144.14 |
||
| replacement | |||||
|
13101
|
13101
13105-88223 Piston Sub-Assy, W/pinW/PIN [08.1979 - 01.1983] 2TG..TE71 O/S 1.00 |
13105-88223 |
US $147.06 |
||
|
13201
|
13201
13201-25010 Rod Sub-Assy, Connecting[08.1979 - 08.1982] 2T#,3T#..TE7# |
13201-25010 |
US $116.48 |
||
|
13202
|
13202
13202-88261 Bearing Set, Connecting Rod[08.1979 - 09.1982] 2TG..TE71 STD |
13202-88261 |
US $122.30 |
||
|
13202
|
13202
13203-88261
Bearing Set, Connecting Rod
[08.1979 - 09.1982] 2TG..TE71 U/S 0.05 |
13203-88261 |
— | ||
|
13202
|
13202
13204-88261 Bearing Set, Connecting Rod[08.1979 - 09.1982] 2TG..TE71 U/S 0.25 |
13204-88261 |
US $148.51 |
||
|
13202
|
13202
13205-88261 Bearing Set, Connecting Rod[08.1979 - 09.1982] 2TG..TE71 U/S 0.50 |
13205-88261 |
US $148.51 |
||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[08.1979 - 02.1985] 2T#,3T#..TE7# |
13265-29025 |
US $12.16 |
||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[08.1979 - 05.1980] 4K#..KE70; 2T#,3TC..TE7# |
90170-09195 |
US $3.20 |
||
|
13405
|
13405
13405-29067 Flywheel Sub-Assy[08.1979 - 07.1981] 2T#,3TC..TE7#..MTM..(EUR,GEN) N=115 |
13405-29067 |
US $327.60 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[08.1979 - 07.1987] 1C..CE70 L=23,OD=8,L=23,OD=8; 2T#,3T#..TE7#..MTM L=23,OD=8,L=23,OD=8 |
90250-08054 |
from US $1.92 |
||
|
13405B
|
13405B
90105-10030 Bolt, Flywheel Setting[08.1979 - 05.1983] 2TG..TE71 |
90105-10030 |
US $6.08 |
||
|
13411
|
13411
13411-27904 Crankshaft[08.1979 - 05.1983] 2TG..TE71 |
13411-27904 |
US $1,307.49 |
||
| replacement | |||||
|
13411
|
13411
13411-27901 Crankshaft[08.1979 - 05.1983] 2TG..TE71 |
13411-27901 |
US $1,186.64 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[08.1979 - 02.1985] 2T#,3T#..TE7#..MTM N=115 |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13471-25010
Pulley, Crankshaft
[08.1979 - 08.1981] 2TG..TE71 |
13471-25010 |
— | ||
|
13471
|
13471
13471-25021
Pulley, Crankshaft
[08.1979 - 05.1983] 2TG..TE71..GEN W/COOLER |
13471-25021 |
— | ||
|
13471
|
13471
13471-88260 Pulley, Crankshaft[08.1981 - 05.1983] 2TG..TE71 |
13471-88260 |
US $67.85 |
||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[08.1979 - 09.1986] 4K#..KE70; 2T#,3T#..TE7# |
90280-05010 |
from US $1.83 |
||
|
13471B
|
13471B
90209-13003 Washer, Plate(For Crankshaft Pulley Set)[08.1979 - 07.1987] 4K#..KE70; 2T#,3T#..TE7# |
90209-13003 |
from US $2.84 |
||
|
13471C
|
13471C
90105-12001 Bolt(For Crankshaft Pulley Set)[08.1979 - 12.1979] 2TG..TE71..GEN W/COOLER |
90105-12001 |
US $4.80 |
||
| replacement | |||||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[08.1979 - 12.1979] 2TG..TE71..GEN W/COOLER |
90105-12051 |
from US $2.81 |
||
|
13471C
|
13471C
90105-12050
Bolt(For Crankshaft Pulley Set)
[08.1979 - 09.1979] 4K#..KE70; 2T#,3TC..TE7# |
90105-12050 |
— | ||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[12.1979 - 02.1985] 2T#,3T#..TE7# *12-1.25PX24-18 |
90105-12051 |
from US $2.81 |
||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[08.1979 - 02.1985] 2T#,3T#..TE7# N=18 |
13521-33010 |
US $45.95 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[08.1979 - 07.1987] 4A#..AE71; 4K#..KE70; 2T#,3T#..TE7# |
90280-05010 |
from US $1.83 |
||
