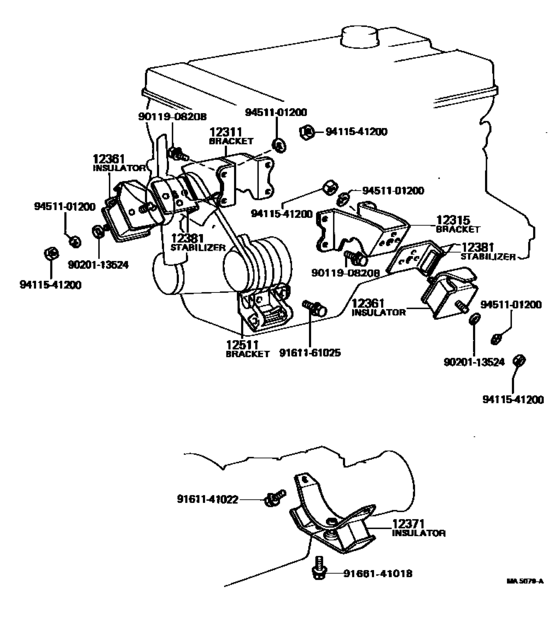

Mounting ([08.1979 - 05.1983] (7908-8305)2TG) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- Europe
- Frame
- TE71
- grade
- GT
- body
- CP
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-25050
Bracket, Engine Mounting, Front No.1 Rh
[08.1979 - 01.1980] 2TG..TE71 |
12311-25050 |
— | ||
| replacement | |||||
|
12311
|
12311
12311-25051
Bracket, Engine Mounting, Front No.1 Rh
[08.1979 - 01.1980] 2TG..TE71 |
12311-25051 |
— | ||
|
12311
|
12311
12311-25051
Bracket, Engine Mounting, Front No.1 Rh
[01.1980 - 05.1983] 2TG..TE71 |
12311-25051 |
— | ||
|
12315
|
12315
12312-25040
Bracket, Engine Mounting, Front No.1 Lh
[08.1979 - 01.1980] 2TB,2TG..TE71 |
12312-25040 |
— | ||
|
12315
|
12315
12312-25041
Bracket, Engine Mounting, Front No.1 Lh
[01.1980 - 05.1983] 2TG..TE71 |
12312-25041 |
— | ||
|
12361
|
12361
12361-25014 Insulator, Engine Mounting, Front[08.1979 - 05.1983] 2TG..TE71 |
12361-25014 |
US $56.24 |
||
|
12371
|
12371
12371-33010 Insulator, Engine Mounting, Rear No.1[08.1979 - 02.1985] 2T#,3T#..TE7#..MTM |
12371-33010 |
US $54.87 |
||
|
12381
|
12381
12381-25010
Stabilizer, Engine Mounting
[08.1979 - 05.1983] 2TG..TE71 |
12381-25010 |
— | ||
|
12511
|
12511
12511-25010
Bracket, Alternator, No.1
[08.1979 - 02.1985] 2T#,3T#..TE7# |
12511-25010 |
— | ||
|
9011908208
|
9011908208
90119-08208 Bolt (For Roller Bearing Retainer) |
90119-08208 |
US $0.87 |
||
|
9020113524
|
9020113524
90201-13524 New Genuine Part |
90201-13524 |
US $3.06 |
||
|
9161141022
|
9161141022
91611-41022 Bolt (for Transmission Control Cable Bracket) |
91611-41022 |
US $2.91 |
||
| replacement | |||||
|
9161141022
|
9161141022
91612-61022 Bolt (For Transmission Control Cable Bracket) |
91612-61022 |
US $2.08 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9166141018
|
9166141018
91661-41018
New Genuine Part
|
91661-41018 |
— | ||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.60 |
||
