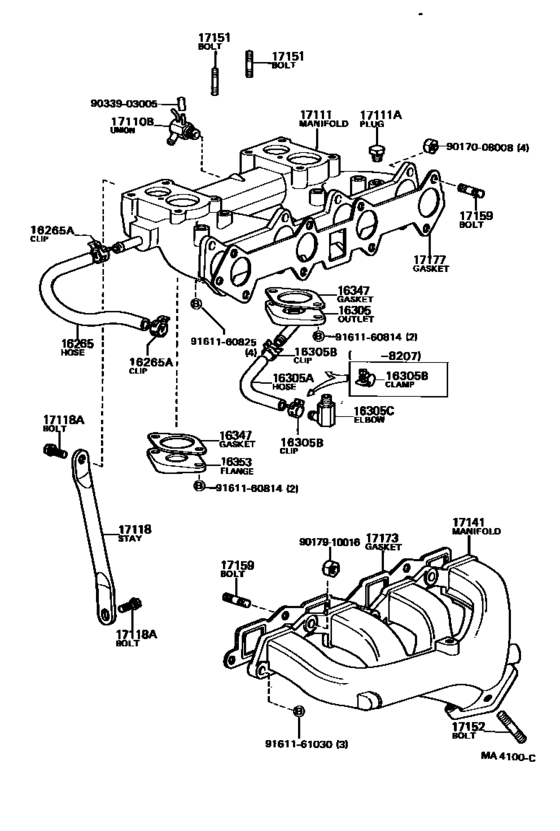

Manifold ([08.1979 - 05.1983] (7908-8305)2TB) Diagram Toyota COROLLA
- Year
- 1979 - 1981
- Sales region
- Europe
- Frame
- TE71
- grade
- SE
- body
- LB
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1981
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16265
|
16265
90445-21748
Hose, Intake Manifold Water
[08.1979 - 05.1983] 2TB..TE71 |
90445-21748 |
— | ||
|
16265A
|
16265A
90467-20004
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1979 - 10.1980] 2T,2TB,3T#..TE7# |
90467-20004 |
— | ||
| replacement | |||||
|
16265A
|
16265A
96134-41900 Clip Or Clamp(For Ventilation Hose)[08.1979 - 10.1980] 2T,2TB,3T#..TE7# |
96134-41900 |
from US $1.44 |
||
|
16265A
|
16265A
90467-20005
Clip(For Ventilation Hose No.2)
[10.1980 - 02.1985] 2T,2TB,3T#..TE7# |
90467-20005 |
— | ||
| replacement | |||||
|
16265A
|
16265A
96134-41900 Clip Or Clamp(For Ventilation Hose)[10.1980 - 02.1985] 2T,2TB,3T#..TE7# |
96134-41900 |
from US $1.44 |
||
|
16305
|
16305
16305-25020 Outlet Sub-Assy, Water By-PassWATER BY-PASS [08.1979 - 05.1983] 2TB..TE71 |
16305-25020 |
US $12.96 |
||
|
16305A
|
16305A
16261-25010 Hose, Water By-PassWATER BY-PASS OUTLET [08.1979 - 05.1983] 2TB..TE71 |
16261-25010 |
US $7.86 |
||
|
16305B
|
16305B
96111-10220
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1979 - 07.1982] 2TB..TE71 |
96111-10220 |
— | ||
| replacement | |||||
|
16305B
|
16305B
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1979 - 07.1982] 2TB..TE71 |
96112-10220 |
US $0.61 |
||
|
16305C
|
16305C
90407-14051
Elbow(For Sub Radiator)
[08.1979 - 05.1983] 2TB..TE71 |
90407-14051 |
— | ||
| replacement | |||||
|
16305C
|
16305C
90407-53007 Union(For Water By-Pass Hose)[08.1979 - 05.1983] 2TB..TE71 |
90407-53007 |
US $8.32 |
||
|
16347
|
16347
16347-41010
Gasket, Water By-Pass
[08.1979 - 01.1982] 2TB..TE71 |
16347-41010 |
— | ||
| replacement | |||||
|
16347
|
16347
16347-41012
Gasket, Water By-Pass
[08.1979 - 01.1982] 2TB..TE71 |
16347-41012 |
— | ||
|
16353
|
16353
16353-25020 Flange, Water By-PassWATER BY-PASS [08.1979 - 05.1983] 2TB..TE71 |
16353-25020 |
US $11.36 |
||
|
17110B
|
17110B
90404-53033 Union(For Ventilation Hose To Manifold)[08.1979 - 08.1981] 2TB..TE71..EUR,GEN |
90404-53033 |
US $3.93 |
||
|
17110B
|
17110B
90404-53043 Union(For Ventilation Hose To Manifold)[08.1981 - 05.1983] 2TB..TE71..EUR,GEN |
90404-53043 |
US $9.76 |
||
|
17111
|
17111
17111-25901
Manifold, Intake
[08.1979 - 05.1983] 2TB..TE71 |
17111-25901 |
— | ||
|
17111A
|
17111A
90345-51025 Plug, W/head Taper Screw, No.2[08.1979 - 07.1987] 4K#..KE70; 2TB..TE71 |
90345-51025 |
US $3.36 |
||
|
17118
|
17118
17118-26010
Stay, Manifold
[08.1979 - 05.1983] 2TB..TE71 |
17118-26010 |
— | ||
|
17118A
|
17118A
91619-61220 Bolt, Stud[08.1979 - 05.1983] 2TB..TE71 MANIFOLD TO STAY |
91619-61220 |
US $4 |
||
|
17118A
|
17118A
91659-61228 Bolt, Stud(For Manifold Stay)STUD(FOR MANIFOLD STAY) [08.1979 - 05.1983] 2TB..TE71 MOUNTING TO STAY |
91659-61228 |
US $2.33 |
||
|
17141
|
17141
17141-26012 Manifold, ExhaustEXHAUST [08.1979 - 08.1981] 2T#,3T..TE7# |
17141-26012 |
US $281.01 |
||
|
17141
|
17141
17141-27011 Manifold, Exhaust[08.1981 - 06.1984] 2T,2TB..TE71..EUR,GEN,SAA |
17141-27011 |
US $345.07 |
||
|
17151
|
17151
90116-08008 Bolt, Stud(For Egr Valve)[08.1979 - 05.1983] 2TB..TE71 FR |
90116-08008 |
US $2.34 |
||
|
17151
|
17151
90116-08009 Bolt(For Intake Manifold To Exhaust Manifold)STUD(FOR MANIFOLD TO CARBURETOR) [08.1979 - 05.1983] 2TB..TE71 RR |
90116-08009 |
US $3.44 |
||
|
17152
|
17152
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1979 - 08.1980] 4K#..KE70 L=41,S=14&21; 2T,2TB,3T#..TE7# L=41,S=14&21 |
90116-10017 |
from US $2.92 |
||
|
17152
|
17152
90116-10056
Bolt, Stud(For Turbocharger)
[08.1980 - 05.1983] 2T,2TB,3T#..TE7# L=44,S=14&21 |
90116-10056 |
— | ||
| replacement | |||||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[08.1980 - 05.1983] 2T,2TB,3T#..TE7# L=44,S=14&21 |
90116-10087 |
from US $2.40 |
||
|
17159
|
17159
90116-08035 Bolt, Stud(For Manifold To Cylinder Head)[08.1979 - 02.1985] 2T,2TB,3T#..TE7# INTAKE MANIFOLD |
90116-08035 |
US $2.48 |
||
|
17159
|
17159
92122-61025 Bolt, Stud(For Manifold To Cylinder Head)[08.1979 - 02.1985] 2T#,3T#..TE7# EXHAUST MANIFOLD |
92122-61025 |
US $3.68 |
||
|
17173
|
17173
17173-25012
Gasket, Exhaust Manifold To Head
[08.1979 - 02.1985] 2T#,3T#..TE7# |
17173-25012 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-25013 Gasket, Exhaust Manifold To Head[08.1979 - 02.1985] 2T#,3T#..TE7# |
17173-25013 |
US $8.56 |
||
|
17177
|
17177
17177-25030
Gasket, Intake Manifold To Head, No.1
[08.1979 - 02.1985] 2T,2TB,3T#..TE7# |
17177-25030 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-25031 Gasket, Intake Manifold To Head, No.1[08.1979 - 02.1985] 2T,2TB,3T#..TE7# |
17177-25031 |
US $7.13 |
||
|
9017008008
|
9017008008
90170-08008 New Genuine Part |
90170-08008 |
US $1.60 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.76 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
