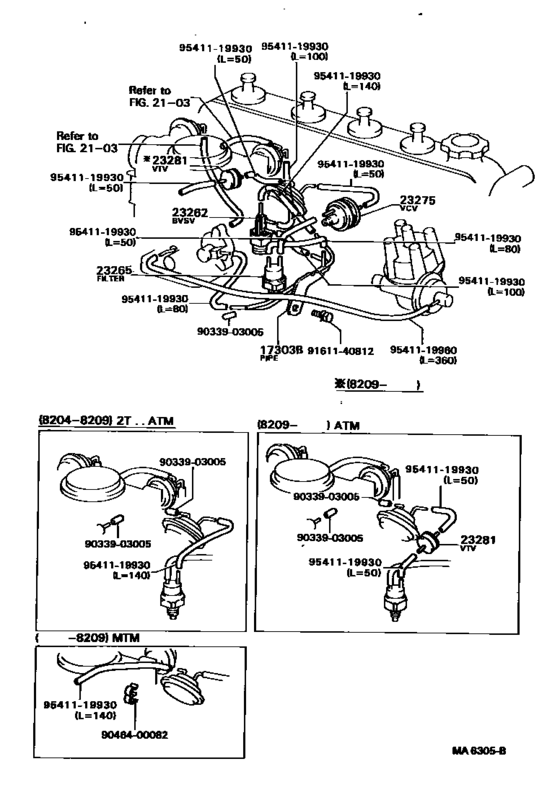

Vacuum Piping ([04.1982 - 02.1985] (8204-8502)2T,3T..SA) Diagram Toyota COROLLA
- Year
- 1982 - 1984
- Sales region
- Europe
- Frame
- TE71
- grade
- DX
- body
- WG
- ENGINE
- 2T
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1982
- To
- 12.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-26120
Pipe Sub-Assy, Air, No.1
[04.1982 - 02.1985] 2T,3T..TE7# |
17303-26120 |
— | ||
|
23262
|
23262
25810-15010 Valve, Bimetal Vacuum Switching, No.1[04.1982 - 02.1985] 2T,3T..TE7# |
25810-15010 |
US $74.26 |
||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[08.1981 - 04.1982] 2T,3T..TE7#..SA |
90917-11022 |
from US $15.50 |
||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[04.1982 - 02.1985] 2T,3T..TE7# |
90917-11023 |
from US $23.41 |
||
|
23275
|
23275
90925-03074
Valve, Vacuum Control, No.1
[04.1982 - 02.1985] 3T..TE72;2T..TE71..MTM |
90925-03074 |
— | ||
|
23281
|
23281
90925-01075 Valve, Vacuum Transmitting, No.1[09.1982 - 02.1985] 2T..TE71..SA;3T#..TE72..(4FC,5F)..(EUR,SA) |
90925-01075 |
US $35.67 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.76 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
