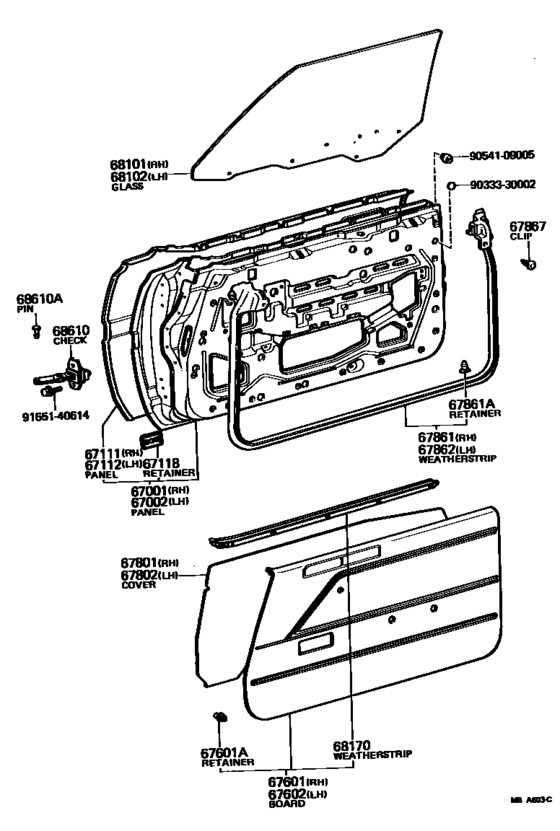

Front Door Panel & Glass ([08.1979 - 08.1981] (7908-8108)CP,HT,LB) Diagram Toyota COROLLA
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- TE72
- grade
- DX
- body
- CP
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-12510
Panel Sub-Assy, Front Door, Rh
[08.1979 - 08.1981] TE72..CP,HT,LB W/MIRROR |
67001-12510 |
— | ||
|
67001
|
67001
67001-12520
Panel Sub-Assy, Front Door, Rh
[08.1979 - 08.1981] TE72..CP,HT,LB W/O MIRROR |
67001-12520 |
— | ||
|
67002
|
67002
67002-12510
Panel Sub-Assy, Front Door, Lh
[08.1979 - 08.1981] TE72..CP,HT,LB |
67002-12510 |
— | ||
|
67111
|
67111
67111-12340 Panel, Front Door, Outer RhFRONT DOOR, OUTER RH [08.1979 - 07.1983] AE71,TE72..CP,HT,LB |
67111-12340 |
US $358.18 |
||
|
67112
|
67112
67112-12300
Panel, Front Door, Outer Lh
[08.1979 - 08.1980] TE72..CP,LB |
67112-12300 |
— | ||
| replacement | |||||
|
67112
|
67112
67112-12301 Panel, Front Door, Outer LhFRONT DOOR, OUTER LH [08.1979 - 08.1980] TE72..CP,LB |
67112-12301 |
US $358.18 |
||
|
67112
|
67112
67112-12903 Panel, Front Door, Outer LhFRONT DOOR, OUTER LH [08.1980 - 08.1981] TE72..CP,HT,LB |
67112-12903 |
US $358.18 |
||
| replacement | |||||
|
67112
|
67112
67112-12301 Panel, Front Door, Outer LhFRONT DOOR, OUTER LH [08.1980 - 08.1981] TE72..CP,HT,LB |
67112-12301 |
US $358.18 |
||
|
67118
|
67118
67118-12040
Retainer, Outer Mirror
[08.1979 - 08.1981] TE72 |
67118-12040 |
— | ||
|
67601
|
67601
67610-12890-01
Board Sub-Assy, Front Door Trim, Rh
[08.1979 - 08.1981] TE72..(CP,HT,LB)..DX BLACK,BLACK |
67610-12890-01 |
— | ||
|
67601
|
67601
67610-12890-04
Board Sub-Assy, Front Door Trim, Rh
[08.1979 - 08.1981] TE72..(CP,HT,LB)..DX BLUE,BLUE |
67610-12890-04 |
— | ||
|
67601
|
67601
67610-12890-06
Board Sub-Assy, Front Door Trim, Rh
[08.1979 - 08.1981] TE72..(CP,HT,LB)..DX DARK BROWN,BROWN |
67610-12890-06 |
— | ||
|
67601
|
67601
67610-12890-08
Board Sub-Assy, Front Door Trim, Rh
[08.1979 - 08.1981] TE72..(CP,HT,LB)..DX..USA IVORY,IVORY |
67610-12890-08 |
— | ||
|
67601A
|
67601A
67771-12010 Retainer, Door Trim[08.1979 - 07.1983] AE71,TE72 |
67771-12010 |
from US $1.74 |
||
|
67602
|
67602
67620-12620-01
Board Sub-Assy, Front Door Trim, Lh
[08.1979 - 08.1981] TE72..(CP,HT,LB)..DX BLACK,BLACK |
67620-12620-01 |
— | ||
|
67602
|
67602
67620-12620-04
Board Sub-Assy, Front Door Trim, Lh
[08.1979 - 08.1981] TE72..(CP,HT,LB)..DX BLUE,BLUE |
67620-12620-04 |
— | ||
|
67602
|
67602
67620-12620-06
Board Sub-Assy, Front Door Trim, Lh
[08.1979 - 08.1981] TE72..(CP,HT,LB)..DX DARK BROWN,BROWN |
67620-12620-06 |
— | ||
|
67602
|
67602
67620-12620-08
Board Sub-Assy, Front Door Trim, Lh
[08.1979 - 08.1981] TE72..(CP,HT,LB)..DX..USA IVORY,IVORY |
67620-12620-08 |
— | ||
|
67602
|
67602
67620-12621-01
Board Sub-Assy, Front Door Trim, Lh
[08.1981 - 08.1982] TE72..(CP,HT,LB)..DX BLACK,BLACK |
67620-12621-01 |
— | ||
|
67602
|
67602
67620-12621-04
Board Sub-Assy, Front Door Trim, Lh
[08.1981 - 08.1982] TE72..(CP,HT,LB)..DX BLUE,BLUE |
67620-12621-04 |
— | ||
|
67602
|
67602
67620-12621-06
Board Sub-Assy, Front Door Trim, Lh
[08.1981 - 08.1982] TE72..(CP,HT,LB)..DX DARK BROWN,BROWN |
67620-12621-06 |
— | ||
|
67602
|
67602
67620-12621-08
Board Sub-Assy, Front Door Trim, Lh
[08.1981 - 08.1982] TE72..(CP,HT,LB)..DX IVORY,IVORY |
67620-12621-08 |
— | ||
|
67801
|
67801
67831-12170
Cover Sub-Assy, Front Door Hole, No.1 Rh
[08.1979 - 08.1981] TE72..CP,HT,LB |
67831-12170 |
— | ||
|
67802
|
67802
67831-12170
Cover Sub-Assy, Front Door Hole, No.1 Rh
[08.1979 - 08.1981] TE72..CP,HT,LB |
67831-12170 |
— | ||
|
67861
|
67861
67861-12370
Weatherstrip, Front Door, Rh
[08.1979 - 07.1983] AE71,TE72..CP,HT,LB |
67861-12370 |
— | ||
|
67861A
|
67861A
67868-30040 Retainer, Roof Side Rail, Rh[08.1979 - 07.1983] AE71,TE72 |
67868-30040 |
US $1.76 |
||
|
67862
|
67862
67862-12370
Weatherstrip, Front Door, Lh
[08.1979 - 07.1983] AE71,TE72..CP,HT,LB |
67862-12370 |
— | ||
|
67867
|
67867
67869-30020 Clip, Headlamp Door Filler[08.1979 - 07.1983] AE71,TE72..CP,HT,LB |
67869-30020 |
US $3.52 |
||
|
68101
|
68101
68111-12341 Glass Sub-Assy, Front Door, RhFRONT DOOR, RH [08.1979 - 01.1981] TE72..CP *TT,T=5.0 |
68111-12341 |
US $294.11 |
||
|
68102
|
68102
68112-12341 Glass Sub-Assy, Front Door, LhFRONT DOOR, LH [08.1979 - 01.1981] TE72..CP *TT,T=5.0 |
68112-12341 |
US $294.11 |
||
|
68170
|
68170
68170-12160
Weatherstrip Assy, Front Door Glass, Inner
[08.1979 - 08.1981] TE72..CP,HT,LB RH |
68170-12160 |
— | ||
|
68170
|
68170
68220-12100
Weatherstrip Assy, Front Door Glass, Inner
[08.1979 - 08.1981] TE72..CP,HT,LB LH |
68220-12100 |
— | ||
|
68610
|
68610
68610-12020
Check Assy, Front Door
[08.1979 - 07.1983] AE71,TE72..CP,HT,LB |
68610-12020 |
— | ||
|
68610A
|
68610A
68617-22010
Pin(For Front Door Check)
[08.1979 - 07.1983] AE71,TE72 |
68617-22010 |
— | ||
| replacement | |||||
|
68610A
|
68610A
68617-90A01 Pin(For Front Door Check)[08.1979 - 07.1983] AE71,TE72 |
68617-90A01 |
US $4.80 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9054109005
|
9054109005
90541-09005
Cushion(For Luggage Compartment Door Panel)
|
90541-09005 |
— | ||
| replacement | |||||
|
9054109005
|
9054109005
90541-09058
Cushion(For Luggage Compartment Door Panel)
|
90541-09058 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
