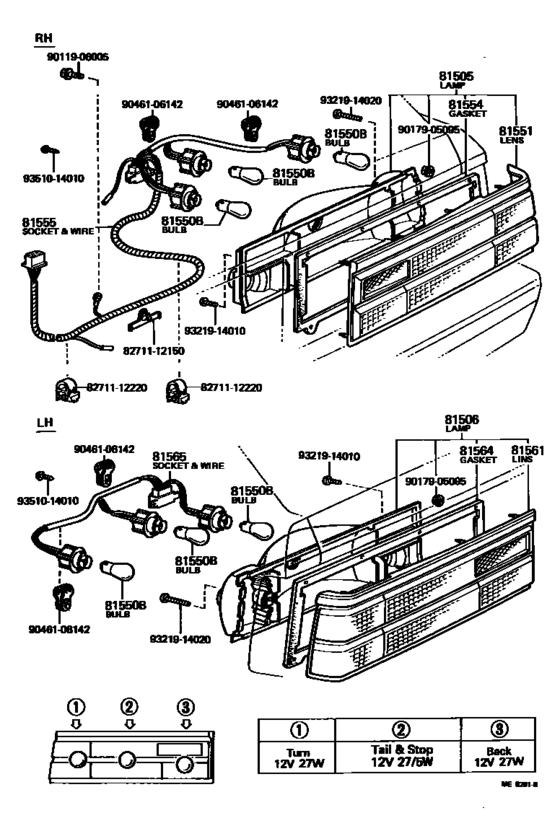

Rear Combination Lamp ([08.1979 - 08.1981] (7908-8108)CP) Diagram Toyota COROLLA
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- TE72
- grade
- DX
- body
- CP
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-19435
Lamp Sub-Assy, Rear Combination, Rh
[08.1979 - 08.1981] TE72..CP..DX |
81505-19435 |
— | ||
|
81506
|
81506
81506-19305 Lamp Sub-Assy, Rear Combination, LhREAR COMBINATION, LH [08.1979 - 08.1981] TE72..CP..DX |
81506-19305 |
US $267.90 |
||
|
81550B
|
81550B
99132-11270 Bulb, Fog Lamp[08.1979 - 07.1983] AE71,TE72 12V 27W,12V 27W |
99132-11270 |
US $3.36 |
||
|
81550B
|
81550B
99132-21270 Bulb (For Front Turn Signal Lamp)[08.1979 - 07.1983] AE71,TE72 12V 27/8W,12V 27/8W |
99132-21270 |
US $4.32 |
||
|
81551
|
81551
81551-12640
Lens, Rear Combination Lamp, Rh
[08.1979 - 08.1981] TE72..CP..DX |
81551-12640 |
— | ||
|
81554
|
81554
81554-12640
Gasket, Rear Combination Lamp Body, Rh
[08.1979 - 08.1981] TE72..CP |
81554-12640 |
— | ||
|
81555
|
81555
81555-12660
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1979 - 08.1980] TE72..CP |
81555-12660 |
— | ||
|
81555
|
81555
81555-12661
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1980 - 08.1981] TE72..CP |
81555-12661 |
— | ||
|
81561
|
81561
81561-12640 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1979 - 08.1981] TE72..CP..DX |
81561-12640 |
US $189.28 |
||
|
81564
|
81564
81564-12640
Gasket, Rear Combination Lamp Body, Lh
[08.1979 - 08.1981] TE72..CP |
81564-12640 |
— | ||
|
81565
|
81565
81565-12660 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1979 - 08.1981] TE72..CP |
81565-12660 |
US $44.26 |
||
|
8271112150
|
8271112150
82711-12150 Wire, Fuse To Fuse(for Combustion Heater) |
82711-12150 |
US $4.02 |
||
|
8271112220
|
8271112220
82711-12220 Wire, Fuse To Fuse(for Combustion Heater) |
82711-12220 |
US $4.02 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9046106142
|
9046106142
90461-06142
New Genuine Part
|
90461-06142 |
— | ||
|
9321914010
|
9321914010
93219-14010 Screw |
93219-14010 |
US $1.12 |
||
|
9321914020
|
9321914020
93219-14020
New Genuine Part
|
93219-14020 |
— | ||
|
9351014010
|
9351014010
93510-14010 New Genuine Part |
93510-14010 |
US $1.31 |
||
