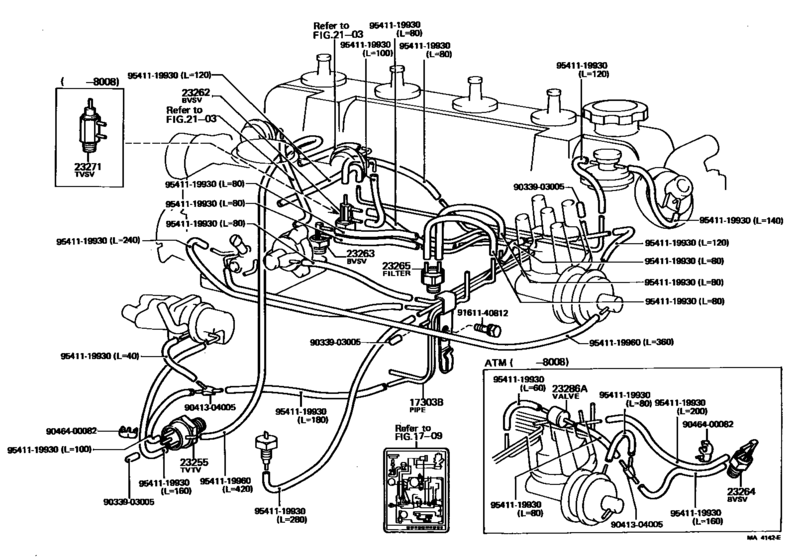

Vacuum Piping ([08.1979 - 08.1982] (7908-8208)3TC..CND) Diagram Toyota COROLLA
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- TE72
- grade
- DX
- body
- CP
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- DESTINATION
- CND
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-28010
Pipe Sub-Assy, Air, No.1
[08.1979 - 08.1980] 3TC..TE72 |
17303-28010 |
— | ||
|
17303B
|
17303B
17303-28011
Pipe Sub-Assy, Air, No.1
[08.1980 - 08.1982] 3TC..TE72..CND |
17303-28011 |
— | ||
|
23255
|
23255
90925-01068
Valve, Thermostatic Vacuum Transmitting, No.1
[08.1979 - 08.1980] 3TC..TE72 |
90925-01068 |
— | ||
|
23262
|
23262
25810-15010 Valve, Bimetal Vacuum Switching, No.1[08.1980 - 08.1982] 3TC..TE72 |
25810-15010 |
US $74.26 |
||
|
23263
|
23263
90925-05041
Valve, Bimetal Vacuum Switching, No.1
[08.1979 - 08.1982] 3TC..TE72..CND |
90925-05041 |
— | ||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[08.1979 - 08.1980] 3TC..TE72..CND;3TC..TE72..3FC..USA |
90917-11023 |
from US $23.41 |
||
|
23271
|
23271
90925-02048
Valve, Thermostatic Vacuum Switching, No.1
[08.1979 - 08.1980] 3TC..TE72 |
90925-02048 |
— | ||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.76 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
US $3.04 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
