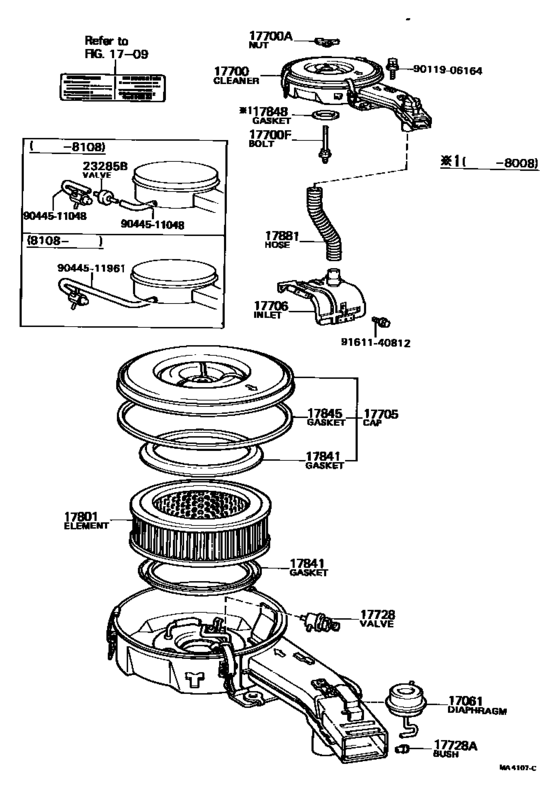

Air Cleaner ([08.1979 - 05.1983] (7908-8305)3TC) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- Europe
- Frame
- TE72
- grade
- DX
- body
- LB
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-26010 Diaphragm Sub-Assy[08.1979 - 08.1981] 3TC..TE72 |
17061-26010 |
US $68.43 |
||
|
17700
|
17700
17700-28030
Cleaner Assy, Air
[08.1979 - 08.1980] 3TC..TE72 |
17700-28030 |
— | ||
|
17700
|
17700
17700-28031
Cleaner Assy, Air
[08.1980 - 05.1983] 3TC..TE72 |
17700-28031 |
— | ||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[08.1979 - 02.1985] 2T,3T#..TE7# |
90175-06003 |
from US $1.27 |
||
|
17700F
|
17700F
90116-06222 Bolt, Stud(For Air Cleaner Setting)[08.1979 - 02.1985] 2T,3T#..TE7# |
90116-06222 |
US $3.32 |
||
|
17705
|
17705
17705-25012
Cap Sub-Assy, Air Cleaner
[08.1979 - 08.1980] 2T,3T#..TE7# |
17705-25012 |
— | ||
|
17705
|
17705
17705-25013
Cap Sub-Assy, Air Cleaner
[08.1980 - 08.1981] 2T,3T#..TE7# |
17705-25013 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-26080
Cap Sub-Assy, Air Cleaner
[08.1980 - 08.1981] 2T,3T#..TE7# |
17705-26080 |
— | ||
|
17706
|
17706
17752-26021 Inlet Sub-Assy, Air Cleaner, No.2AIR CLEANER, NO.2 [08.1979 - 08.1980] 3TC..TE72 W/HOT AIR INTAKE |
17752-26021 |
US $50.38 |
||
| replacement | |||||
|
17706
|
17706
17901-28010 Inlet Sub-Assy, Air Cleaner, No.2AIR CLEANER, NO.2 [08.1979 - 08.1980] 3TC..TE72 W/HOT AIR INTAKE |
17901-28010 |
US $55.47 |
||
|
17706
|
17706
17901-28010 Inlet Sub-Assy, Air Cleaner, No.2AIR CLEANER, NO.2 [08.1980 - 05.1983] 3TC..TE72 W/HOT AIR INTAKE |
17901-28010 |
US $55.47 |
||
|
17728
|
17728
17728-28010
Valve, Thermostatic
[08.1979 - 08.1980] 3TC..TE72 |
17728-28010 |
— | ||
|
17728
|
17728
17728-28030
Valve, Thermostatic
[08.1980 - 05.1983] 3TC..TE72 |
17728-28030 |
— | ||
|
17728A
|
17728A
90386-03001
Bush(For Air Cleaner)
[08.1979 - 08.1981] 3TC..TE72 |
90386-03001 |
— | ||
|
17801
|
17801
17801-25010 Element Sub-Assy, Air Cleaner Filter[08.1979 - 02.1985] 2T,3T#..TE7# |
17801-25010 |
from US $20.82 |
||
|
17841
|
17841
17841-31020
Gasket, Filter Element
[08.1979 - 02.1985] 2T,3T#..TE7# |
17841-31020 |
— | ||
|
17845
|
17845
17845-25010
Gasket, Air Cleaner Cap
[08.1979 - 10.1982] 2T,3T#..TE7# |
17845-25010 |
— | ||
| replacement | |||||
|
17845
|
17845
17845-42010
Gasket, Air Cleaner Cap
[08.1979 - 10.1982] 2T,3T#..TE7# |
17845-42010 |
— | ||
|
17848
|
17848
90430-63187
Gasket, Air Cleaner To Carburetor
[08.1979 - 08.1980] 4K#..KE70; 2T,2TB,3T#..TE7# |
90430-63187 |
— | ||
|
17881
|
17881
17881-26020
Hose, Air Cleaner, No.1
[08.1979 - 08.1981] 2TB,3TC..TE7#..ARL,EUR,GEN |
17881-26020 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-26021
Hose, Air Cleaner, No.1
[08.1979 - 08.1981] 2TB,3TC..TE7#..ARL,EUR,GEN |
17881-26021 |
— | ||
|
23285B
|
23285B
90917-10053 Valve, Check, No.1[08.1979 - 08.1981] 3TC..TE72 |
90917-10053 |
US $27.37 |
||
|
9011906164
|
9011906164
90119-06164
New Genuine Part
|
90119-06164 |
— | ||
| replacement | |||||
|
9011906164
|
9011906164
91631-40620 New Genuine Part |
91631-40620 |
US $2.56 |
||
|
9044511048
|
9044511048
90445-11048 New Genuine Part |
90445-11048 |
US $3.64 |
||
|
9044511961
|
9044511961
90445-11961 Hose, No.1(For Air Injection System) |
90445-11961 |
US $12.38 |
||
| replacement | |||||
|
9044511961
|
9044511961
90445-11019 Hose, Vacuum |
90445-11019 |
US $7.86 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
