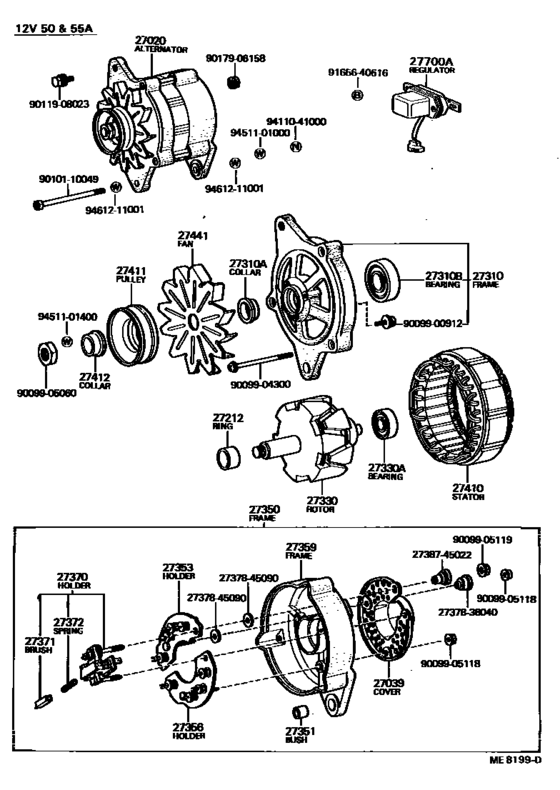

Alternator ([08.1979 - 04.1980] (7908-7910)2TG ; (7908-8004)3TC) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- Europe
- Frame
- TE72
- grade
- DX
- body
- LB
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-34020 Alternator Assy[08.1979 - 04.1980] 3TC..TE72..SDN 12V 55A |
27020-34020 |
US $1,054.14 |
||
| replacement | |||||
|
27020
|
27020
27020-34021 Alternator Assy[08.1979 - 04.1980] 3TC..TE72..SDN 12V 55A |
27020-34021 |
US $1,057.06 |
||
|
27020
|
27020
27020-34021 Alternator Assy[04.1980 - 05.1983] 3TC..TE72..EUR 12V 55A,12V 55A |
27020-34021 |
US $1,057.06 |
||
|
27039
|
27039
27039-15030
Cover, Alternator Rear End
[08.1979 - 10.1979] 4K,2T#,3TC..KE70,TE7# 12V 40A |
27039-15030 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-18011
Cover, Alternator Rear End
[08.1979 - 10.1979] 4K,2T#,3TC..KE70,TE7# 12V 40A |
27039-18011 |
— | ||
|
27039
|
27039
27039-36070
Cover, Alternator Rear End
[08.1979 - 10.1979] 2TG,3TC..TE7#..EUR 12V 50A,55A |
27039-36070 |
— | ||
|
27039
|
27039
27039-45110
Cover, Alternator Rear End
[04.1980 - 08.1981] 2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
27039-45110 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-34022
Cover, Alternator Rear End
[04.1980 - 08.1981] 2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
27039-34022 |
— | ||
|
27212
|
27212
27212-39050
Ring, Space(For Alternator Rotor)
[08.1979 - 10.1979] 4K,2T#,3TC..KE70,TE7# 12V 40A |
27212-39050 |
— | ||
|
27212
|
27212
27412-45070
Ring, Space(For Alternator Rotor)
[08.1979 - 08.1981] 2TB..TE71..LHD..GEN 12V 50A; 4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
27412-45070 |
— | ||
|
27310
|
27310
27310-18010
Frame Assy, Drive End, Alternator
[08.1979 - 10.1979] 2T#,3TC..TE7# 12V 40A |
27310-18010 |
— | ||
|
27310
|
27310
27310-34050
Frame Assy, Drive End, Alternator
[08.1979 - 08.1981] 2TB..TE71..LHD..GEN 12V 50A; 2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
27310-34050 |
— | ||
|
27310A
|
27310A
27412-31040
Collar Or Nut(For Alternator Drive End Frame)
[08.1979 - 08.1981] 4K#,2T#,3T#..KE70,TE7# |
27412-31040 |
— | ||
|
27310B
|
27310B
90099-10115
Bearing(For Alternator Drive End Frame)
[08.1979 - 07.1980] 2TB..TE71..LHD..GEN 12V 50A; 2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
90099-10115 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10125 Bearing(For Alternator Drive End Frame)[08.1979 - 07.1980] 2TB..TE71..LHD..GEN 12V 50A; 2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
90099-10125 |
US $9.61 |
||
|
27310B
|
27310B
90099-10125 Bearing(For Alternator Drive End Frame)[07.1980 - 08.1981] 2TB..TE71..LHD..GEN 12V 50A; 2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
90099-10125 |
US $9.61 |
||
|
27310B
|
27310B
90099-10126
Bearing(For Alternator Drive End Frame)
[08.1979 - 10.1979] 4K,2T#,3TC..KE70,TE7# 12V 40A |
90099-10126 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10125 Bearing(For Alternator Drive End Frame)[08.1979 - 10.1979] 4K,2T#,3TC..KE70,TE7# 12V 40A |
90099-10125 |
US $9.61 |
||
|
27330
|
27330
27330-26050
Rotor Assy, Alternator
[08.1979 - 10.1979] 2T#,3TC..TE7# 12V 40A |
27330-26050 |
— | ||
|
27330
|
27330
27330-45070
Rotor Assy, Alternator
[08.1979 - 08.1981] 2TB..TE71..LHD..GEN 12V 50A; 4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
27330-45070 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-16030
Rotor Assy, Alternator
[08.1979 - 08.1981] 2TB..TE71..LHD..GEN 12V 50A; 4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
27330-16030 |
— | ||
|
27330A
|
27330A
90099-10111
Bearing(For Alternator Rotor)
[08.1979 - 10.1979] 2T#,3TC..TE7# 12V 40A; 4K..KE70 12V 40A; 2TG,3TC..TE7#..EUR 12V 50A,55A |
90099-10111 |
— | ||
| replacement | |||||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[08.1979 - 10.1979] 2T#,3TC..TE7# 12V 40A; 4K..KE70 12V 40A; 2TG,3TC..TE7#..EUR 12V 50A,55A |
90099-10116 |
— | ||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[04.1980 - 08.1981] 2T,2TB,3TC..TE7#..EUR,GEN 12V 50A,55A |
90099-10116 |
— | ||
|
27350
|
27350
27350-45070
Frame Assy, Rectifier End
[08.1979 - 04.1980] 3TC..TE72..SDN 12V 55A |
27350-45070 |
— | ||
|
27351
|
27351
27351-38051
Bush(For Alternator Rectifier End Frame)
[08.1979 - 08.1981] 4K#,2T#,3T#..KE70,TE7# |
27351-38051 |
— | ||
|
27353
|
27353
27353-34020
Holder, W/rectifier Positive, Alternator
[08.1979 - 04.1980] 3TC..TE72..SDN 12V 55A |
27353-34020 |
— | ||
|
27353
|
27353
27353-34021
Holder, W/rectifier Positive, Alternator
[04.1980 - 05.1983] 3TC..TE72..EUR 12V 55A |
27353-34021 |
— | ||
|
27356
|
27356
27356-34021
Holder, W/rectifier Negative, Alternator
[04.1980 - 05.1983] 3TC..TE72..EUR 12V 55A |
27356-34021 |
— | ||
|
27356
|
27356
27356-45070
Holder, W/rectifier Negative, Alternator
[08.1979 - 04.1980] 3TC..TE72..SDN 12V 55A |
27356-45070 |
— | ||
|
27359
|
27359
27359-13050
Frame, Alternator Rectifier End
[08.1979 - 10.1979] 2T#,3TC..TE7# 12V 40A |
27359-13050 |
— | ||
|
27359
|
27359
27359-24100
Frame, Alternator Rectifier End
[04.1980 - 08.1981] 2T#,3TC..TE7#..LHD..EUR 12V 50A,55A |
27359-24100 |
— | ||
|
27359
|
27359
27359-45081
Frame, Alternator Rectifier End
[08.1979 - 10.1979] 2TG,3TC..TE7#..EUR 12V 50A,55A |
27359-45081 |
— | ||
|
27370
|
27370
27370-45061
Holder Assy, Alternator Brush
[08.1979 - 10.1979] 2TG,3TC..TE7#..EUR 12V 50A,55A |
27370-45061 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-44070
Holder Assy, Alternator Brush
[08.1979 - 10.1979] 2TG,3TC..TE7#..EUR 12V 50A,55A |
27370-44070 |
— | ||
|
27371
|
27371
27371-31011 Brush, Alternator[08.1979 - 10.1979] 4K,2T#,3TC..KE70,TE7# 12V 40A,45A; 2TG,3TC..TE7#..EUR 12V 50A,55A |
27371-31011 |
US $2.80 |
||
|
27371
|
27371
27371-44070
Brush, Alternator
[04.1980 - 07.1980] 4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
27371-44070 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-31011 Brush, Alternator[04.1980 - 07.1980] 4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
27371-31011 |
US $2.80 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[08.1979 - 10.1979] 4K,2T#,3TC..KE70,TE7# 12V 40A; 2TG,3TC..TE7#..EUR 12V 50A,55A |
27372-31011 |
— | ||
|
27372
|
27372
90099-17114 Spring, Alternator Brush[04.1980 - 07.1980] 4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
90099-17114 |
US $1.75 |
||
| replacement | |||||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[04.1980 - 07.1980] 4K#,2T#,3TC..KE70,TE7#..LHD..EUR 12V 50A,55A |
27372-31011 |
— | ||
|
27410
|
27410
27410-15030
Stator Assy, Alternator
[08.1979 - 10.1979] 4K,2T#,3TC..KE70,TE7# 12V 40A |
27410-15030 |
— | ||
| replacement | |||||
|
27410
|
27410
27410-38120
Stator Assy, Alternator
[08.1979 - 10.1979] 4K,2T#,3TC..KE70,TE7# 12V 40A |
27410-38120 |
— | ||
|
27410
|
27410
27410-34020
Stator Assy, Alternator
[08.1979 - 04.1980] 3TC..TE72..SDN 12V 55A |
27410-34020 |
— | ||
| replacement | |||||
|
27410
|
27410
27410-45070
Stator Assy, Alternator
[08.1979 - 04.1980] 3TC..TE72..SDN 12V 55A |
27410-45070 |
— | ||
|
27410
|
27410
27410-43040
Stator Assy, Alternator
[08.1982 - 05.1983] 3TC..TE72..SDZ 12V 55A |
27410-43040 |
— | ||
|
27410
|
27410
27410-45120
Stator Assy, Alternator
[04.1980 - 08.1982] 3TC..TE72..SDN 12V 55A |
27410-45120 |
— | ||
| replacement | |||||
|
27410
|
27410
27410-43040
Stator Assy, Alternator
[04.1980 - 08.1982] 3TC..TE72..SDN 12V 55A |
27410-43040 |
— | ||
|
27411
|
27411
27411-31042 Pulley, Alternator[08.1979 - 02.1985] 2T,2TB,3T#..TE7# 12V 40A,45A,50A,55A |
27411-31042 |
US $20.97 |
||
|
27412
|
27412
27412-44030
Ring, Space(For Alternator Rotor)
[08.1979 - 08.1981] 4K#,2T#,3T#..KE70,TE7# 12V 40A,50A,55A |
27412-44030 |
— | ||
| replacement | |||||
|
27412
|
27412
27412-44031
Collar, Spacer(For Alternator Pulley)
[08.1979 - 08.1981] 4K#,2T#,3T#..KE70,TE7# 12V 40A,50A,55A |
27412-44031 |
— | ||
|
27441
|
27441
27441-34030
Fan, Alternator
[08.1979 - 08.1981] 4K#,2T#,3T#..KE70,TE7# 12V 40A,50A,55A |
27441-34030 |
— | ||
|
27700A
|
27700A
27700-15010 Regulator Assy, GeneratorGENERATOR [08.1979 - 09.1980] 4K#,2T#,3T#..KE70,TE7# 12V 40A,45A,50A,55A |
27700-15010 |
US $144.14 |
||
| replacement | |||||
|
27700A
|
27700A
27700-15040 Regulator Assy, Generator[08.1979 - 09.1980] 4K#,2T#,3T#..KE70,TE7# 12V 40A,45A,50A,55A |
27700-15040 |
from US $94.71 |
||
|
27700A
|
27700A
27700-15011
Regulator Assy, Generator
[09.1980 - 05.1983] 1C,4K#,2T#,3T#..CE70,KE70,TE7# 12V 40A,45A,50A,55A |
27700-15011 |
— | ||
| replacement | |||||
|
27700A
|
27700A
27700-15040 Regulator Assy, Generator[09.1980 - 05.1983] 1C,4K#,2T#,3T#..CE70,KE70,TE7# 12V 40A,45A,50A,55A |
27700-15040 |
from US $94.71 |
||
|
2737838040
|
2737838040
27378-38040
Insulator, Alternator, No.1
|
27378-38040 |
— | ||
|
2737845090
|
2737845090
27378-45090
Insulator, Alternator, No.1
|
27378-45090 |
— | ||
|
2738745022
|
2738745022
27387-45022
Insulator, Terminal
|
27387-45022 |
— | ||
|
9009900912
|
9009900912
90099-00912
New Genuine Part
|
90099-00912 |
— | ||
|
9009904300
|
9009904300
90099-04300
New Genuine Part
|
90099-04300 |
— | ||
|
9009905060
|
9009905060
90099-05060
Collar Or Nut(For Alternator Drive End Frame)
|
90099-05060 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9010110049
|
9010110049
90101-10049
Bolt, Hexagon(For Air Pump Bracket Setting)
|
90101-10049 |
— | ||
| replacement | |||||
|
9010110049
|
9010110049
90105-10221 Bolt, Hexagon(For Air Pump Bracket Setting) |
90105-10221 |
from US $3.33 |
||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
