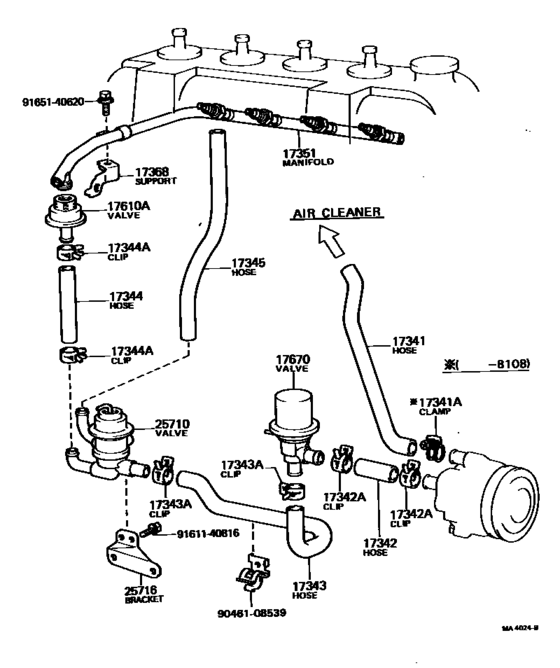

Manifold Air Injection System ([08.1979 - 05.1983] (7908-8305)3TC) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- Europe
- Frame
- TE72
- grade
- DX
- body
- LB
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341
|
17341
17341-26050 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [08.1979 - 05.1983] 3TC..TE72 |
17341-26050 |
US $32.91 |
||
|
17341A
|
17341A
96111-10300 Clamp Or Clip, No.1(For Air Injection System Hose, No.1)[08.1979 - 08.1981] 3TC..TE72 |
96111-10300 |
US $1.79 |
||
|
17342
|
17342
90445-31008
Hose, No.2(For Air Injection System)
[08.1979 - 05.1983] 3TC..TE72 |
90445-31008 |
— | ||
|
17342A
|
17342A
90467-26001
Clip Or Clamp(For Ventilation Hose)
[08.1979 - 05.1983] 3TC..TE72 |
90467-26001 |
— | ||
| replacement | |||||
|
17342A
|
17342A
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.1979 - 05.1983] 3TC..TE72 |
96134-52600 |
from US $3.24 |
||
|
17343
|
17343
17342-26031 Hose, No.3(For Air Injection System)NO.3(FOR AIR INJECTION SYSTEM) [08.1979 - 05.1983] 3TC..TE72 |
17342-26031 |
US $35.38 |
||
|
17343A
|
17343A
90467-26001
Clip Or Clamp(For Ventilation Hose)
[08.1979 - 05.1983] 3TC..TE72 |
90467-26001 |
— | ||
| replacement | |||||
|
17343A
|
17343A
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.1979 - 05.1983] 3TC..TE72 |
96134-52600 |
from US $3.24 |
||
|
17344
|
17344
90445-27005 Hose, No.4(For Air Injection System)NO.4(FOR AIR INJECTION SYSTEM) [08.1979 - 05.1983] 3TC..TE72 |
90445-27005 |
US $9.03 |
||
|
17344A
|
17344A
90467-23001
Clip Or Clamp(For Ventilation Hose)
[08.1979 - 05.1983] 3TC..TE72 |
90467-23001 |
— | ||
| replacement | |||||
|
17344A
|
17344A
96134-52100 Clip(For Ventilation Hose)[08.1979 - 05.1983] 3TC..TE72 |
96134-52100 |
US $3.52 |
||
|
17345
|
17345
90445-27013
Hose, No.5(For Air Injection System)
[08.1979 - 05.1983] 3TC..TE72 |
90445-27013 |
— | ||
|
17351
|
17351
17351-28060
Manifold, Air Injection
[08.1979 - 05.1983] 3TC..TE72 |
17351-28060 |
— | ||
|
17368
|
17368
17368-18040
Support, Air Tube
[09.1980 - 05.1983] 3TC..TE72 |
17368-18040 |
— | ||
|
17368
|
17368
17368-26020 Support, Air TubeAIR TUBE [08.1979 - 09.1980] 3TC..TE72 |
17368-26020 |
US $5.82 |
||
| replacement | |||||
|
17368
|
17368
17368-18040
Support, Air Tube
[08.1979 - 09.1980] 3TC..TE72 |
17368-18040 |
— | ||
|
17610A
|
17610A
90917-10045 Valve, Check(For Air Injection System)CHECK(FOR AIR INJECTION SYSTEM) [08.1979 - 05.1983] 3TC..TE72 |
90917-10045 |
US $28.83 |
||
|
17670
|
17670
17670-26030
Valve Assy, Air By-Pass
[08.1979 - 05.1983] 3TC..TE72 |
17670-26030 |
— | ||
|
25710
|
25710
25710-26020
Valve Assy, Air Switching
[08.1979 - 05.1983] 3TC..TE72 |
25710-26020 |
— | ||
|
25716
|
25716
25716-25010
Bracket, Air Switching Valve
[08.1979 - 05.1983] 3TC..TE72 |
25716-25010 |
— | ||
|
9046108539
|
9046108539
90461-08539
New Genuine Part
|
90461-08539 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
