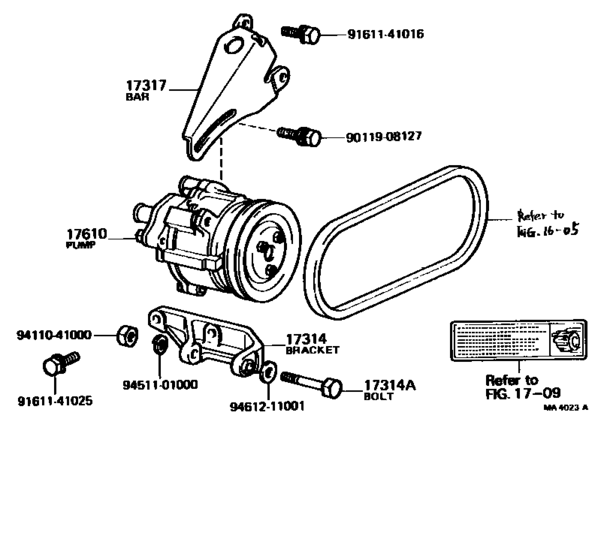

Air Pump ([08.1979 - 05.1983] (7908-8305)3TC) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- General
- Frame
- TE72
- grade
- DX
- body
- LB
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 2D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17314
|
17314
17314-26022 Bracket, Air PumpAIR PUMP [08.1979 - 05.1983] 3TC..TE72 |
17314-26022 |
US $77.17 |
||
|
17314A
|
17314A
90101-10402
Bolt, Hexagon(For Air Pump Bracket Setting)
[08.1979 - 05.1983] 3TC..TE72 |
90101-10402 |
— | ||
|
17317
|
17317
17317-26021 Bar, Air Pump Adjusting, No.1AIR PUMP ADJUSTING, NO.1 [08.1979 - 05.1983] 3TC..TE72 |
17317-26021 |
US $15.14 |
||
|
17610
|
17610
17610-26030 Pump Assy, AirAIR [08.1979 - 05.1983] 3TC..TE72 |
17610-26030 |
US $642.10 |
||
|
9011908127
|
9011908127
90119-08127 BOLT |
90119-08127 |
US $1.14 |
||
|
9161141016
|
9161141016
91611-41016 Bolt(for Dust Cover To Steering Knuckle Arm Setting) |
91611-41016 |
US $2.91 |
||
| replacement | |||||
|
9161141016
|
9161141016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.24 |
||
|
9161141025
|
9161141025
91611-41025
Bolt(for Transaxle & Engine Setting)
|
91611-41025 |
— | ||
| replacement | |||||
|
9161141025
|
9161141025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
