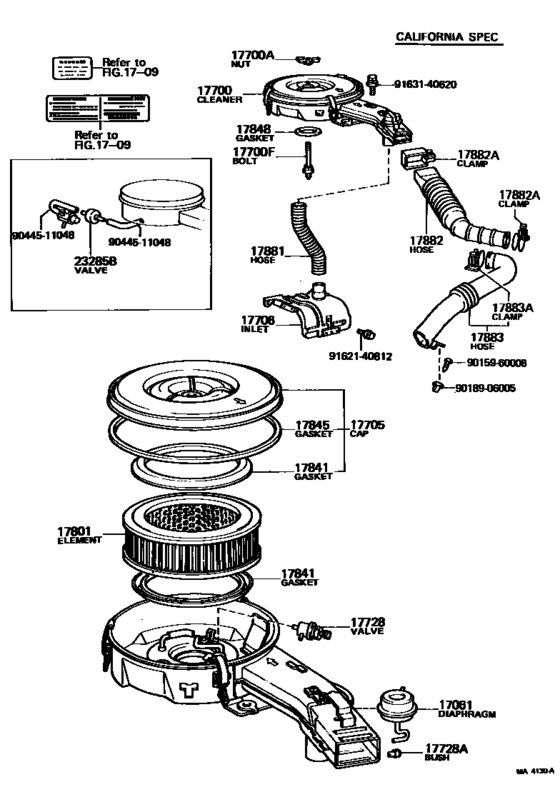

Air Cleaner ([08.1979 - 08.1980] (7908-8008)3TC..USA) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- U.S.A.
- Frame
- TE72
- grade
- DX
- body
- WG
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-26010 Diaphragm Sub-Assy[08.1979 - 07.1983] 4AC..AE71; 3TC..TE72 |
17061-26010 |
US $68.43 |
||
|
17700
|
17700
17700-28020
Cleaner Assy, Air
[08.1979 - 08.1980] 3TC..TE72 |
17700-28020 |
— | ||
|
17700
|
17700
17700-28030
Cleaner Assy, Air
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17700-28030 |
— | ||
|
17700
|
17700
17700-28050
Cleaner Assy, Air
[08.1980 - 08.1982] 3TC..TE72..MTM..USA |
17700-28050 |
— | ||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[08.1979 - 07.1983] 4AC..AE71; 3TC..TE72 |
90175-06003 |
from US $1.23 |
||
|
17700F
|
17700F
90116-06222 Bolt, Stud(For Air Cleaner Setting)[08.1979 - 08.1982] 3TC..TE72 |
90116-06222 |
US $3.32 |
||
|
17705
|
17705
17705-25012
Cap Sub-Assy, Air Cleaner
[08.1979 - 08.1980] 3TC..TE72 |
17705-25012 |
— | ||
|
17705
|
17705
17705-28020
Cap Sub-Assy, Air Cleaner
[08.1980 - 08.1982] 3TC..TE72..MTM..USA |
17705-28020 |
— | ||
|
17706
|
17706
17752-26021 Inlet Sub-Assy, Air Cleaner, No.2AIR CLEANER, NO.2 [08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17752-26021 |
US $50.38 |
||
| replacement | |||||
|
17706
|
17706
17901-28010 Inlet Sub-Assy, Air Cleaner, No.2AIR CLEANER, NO.2 [08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17901-28010 |
US $55.47 |
||
|
17706
|
17706
17901-28010 Inlet Sub-Assy, Air Cleaner, No.2AIR CLEANER, NO.2 [08.1980 - 08.1982] 3TC..TE72..USA CALIFORNIA SPEC |
17901-28010 |
US $55.47 |
||
|
17706
|
17706
17902-27031 Inlet Sub-Assy, Air Cleaner, No.2[08.1979 - 08.1980] 3TC..TE72 |
17902-27031 |
US $82.99 |
||
| replacement | |||||
|
17706
|
17706
17902-27032 Inlet Sub-Assy, Air Cleaner, No.2[08.1979 - 08.1980] 3TC..TE72 |
17902-27032 |
US $84.45 |
||
|
17706
|
17706
17902-27032 Inlet Sub-Assy, Air Cleaner, No.2[08.1980 - 08.1982] 3TC..TE72 |
17902-27032 |
US $84.45 |
||
|
17728
|
17728
17728-28010
Valve, Thermostatic
[08.1979 - 08.1980] 3TC..TE72 |
17728-28010 |
— | ||
|
17728
|
17728
17728-28020 Valve, ThermostaticTHERMOSTATIC [08.1980 - 08.1982] 3TC..TE72..USA |
17728-28020 |
US $80.08 |
||
|
17728A
|
17728A
90386-03001
Bush(For Air Cleaner)
[08.1979 - 08.1982] 3TC..TE72 |
90386-03001 |
— | ||
|
17801
|
17801
17801-25010 Element Sub-Assy, Air Cleaner Filter[08.1979 - 08.1980] 3TC..TE72 |
17801-25010 |
from US $20.82 |
||
|
17801
|
17801
17801-34060 Element Sub-Assy, Air Cleaner Filter[08.1980 - 08.1982] 3TC..TE72..USA |
17801-34060 |
US $24.02 |
||
|
17841
|
17841
17841-25010
Gasket, Filter Element
[08.1979 - 08.1980] 3TC..TE72 |
17841-25010 |
— | ||
| replacement | |||||
|
17841
|
17841
17841-31020
Gasket, Filter Element
[08.1979 - 08.1980] 3TC..TE72 |
17841-31020 |
— | ||
|
17841
|
17841
17841-33011
Gasket, Filter Element
[08.1980 - 08.1982] 3TC..TE72..USA |
17841-33011 |
— | ||
|
17845
|
17845
17845-25010
Gasket, Air Cleaner Cap
[08.1979 - 08.1982] 3TC..TE72 |
17845-25010 |
— | ||
| replacement | |||||
|
17845
|
17845
17845-42010
Gasket, Air Cleaner Cap
[08.1979 - 08.1982] 3TC..TE72 |
17845-42010 |
— | ||
|
17848
|
17848
90430-63187
Gasket, Air Cleaner To Carburetor
[08.1979 - 08.1980] 3TC..TE72 |
90430-63187 |
— | ||
|
17881
|
17881
17881-26020
Hose, Air Cleaner, No.1
[08.1979 - 08.1982] 3TC..TE72 |
17881-26020 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-26021
Hose, Air Cleaner, No.1
[08.1979 - 08.1982] 3TC..TE72 |
17881-26021 |
— | ||
|
17882
|
17882
17881-28020
Hose, Air Cleaner, No.2
[08.1979 - 08.1982] 3TC..TE72..USA |
17881-28020 |
— | ||
|
17882A
|
17882A
90460-01003
Clamp(For Air Cleaner Hose, No.2)
[08.1979 - 08.1982] 3TC..TE72..USA AIR CLEANER SIDE |
90460-01003 |
— | ||
|
17882A
|
17882A
96111-10560 Clamp Or Clip, Hose(For Radiator Outlet No.1)[08.1979 - 08.1982] 3TC..TE72..USA BODY SIDE |
96111-10560 |
US $3.68 |
||
|
17883
|
17883
17882-12010 Hose, Air Cleaner, No.3AIR CLEANER, NO.3 [08.1981 - 08.1982] 3TC..TE72..USA |
17882-12010 |
US $32.91 |
||
|
17883
|
17883
17882-13030 Hose, Air Cleaner, No.3[08.1979 - 08.1981] 3TC..TE72..USA |
17882-13030 |
US $31.89 |
||
| replacement | |||||
|
17883
|
17883
17882-13031 Hose, Air Cleaner, No.3[08.1979 - 08.1981] 3TC..TE72..USA |
17882-13031 |
US $31.89 |
||
|
17883A
|
17883A
90460-60001 Clamp(For Air Cleaner Hose, No.3)[08.1979 - 08.1982] 3TC..TE72..USA HOSE TO APRON |
90460-60001 |
US $3.06 |
||
|
23285B
|
23285B
90917-10053 Valve, Check, No.1[08.1979 - 08.1980] 3TC..TE72 |
90917-10053 |
US $27.37 |
||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.12 |
||
|
9018906005
|
9018906005
90189-06005 CLIP |
90189-06005 |
US $2.08 |
||
|
9044511048
|
9044511048
90445-11048 New Genuine Part |
90445-11048 |
US $3.64 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.60 |
||
|
9163140620
|
9163140620
91631-40620 New Genuine Part |
91631-40620 |
US $2.56 |
||
