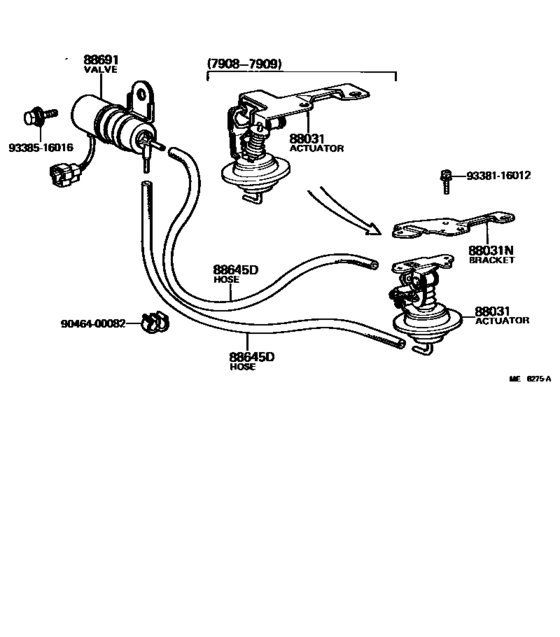

Heating & Air Conditioning - Vacuum Piping ([08.1979 - 08.1980] (7908-8008)) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- U.S.A.
- Frame
- TE72
- grade
- DX
- body
- WG
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-12060
Actuator Set, Idle-Up
[08.1979 - 09.1979] TE72..USA |
88031-12060 |
— | ||
|
88031
|
88031
88031-12100
Actuator Set, Idle-Up
[09.1979 - 08.1980] TE72..USA |
88031-12100 |
— | ||
|
88031N
|
88031N
21893-28080 Bracket, Idle-Up Actuator[09.1979 - 08.1980] TE72..USA |
21893-28080 |
US $31.60 |
||
| replacement | |||||
|
88031N
|
88031N
21893-28081 Bracket, Idle-Up ActuatorIDLE-UP ACTUATOR [09.1979 - 08.1980] TE72..USA |
21893-28081 |
US $25.92 |
||
|
88031N
|
88031N
21893-28081 Bracket, Idle-Up ActuatorIDLE-UP ACTUATOR [08.1980 - 08.1982] TE72..(3FC,4FC,5F)..USA |
21893-28081 |
US $25.92 |
||
|
88645D
|
88645D
95411-10030
Hose (For Idle Up Device)
[08.1979 - 11.1979] TE72..USA L=300,MARK=#0 |
95411-10030 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92002
Air Hose (300 mm)
[08.1979 - 11.1979] TE72..USA L=300,MARK=#0 |
90999-92002 |
— | ||
|
88645D
|
88645D
95411-10060 Hose, Vacuum[11.1979 - 08.1980] TE72..USA *H,L=330,MARK=#0 |
95411-10060 |
US $12.23 |
||
| replacement | |||||
|
88645D
|
88645D
90999-92003
Hose, Breather (For Transfer Case)
[11.1979 - 08.1980] TE72..USA *H,L=330,MARK=#0 |
90999-92003 |
— | ||
|
88645D
|
88645D
95411-19930
Hose(For Carburetor To Manifold)
[08.1980 - 08.1981] TE72..(3FC,5F)..USA *H,L=200,MARK=#* |
95411-19930 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92002
Air Hose (300 mm)
[08.1980 - 08.1981] TE72..(3FC,5F)..USA *H,L=200,MARK=#* |
90999-92002 |
— | ||
|
88645D
|
88645D
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
[08.1979 - 08.1980] TE72..USA *H,L=360,MARK=#* |
95411-19960 |
— | ||
| replacement | |||||
|
88645D
|
88645D
90999-92003
Hose, Breather (For Transfer Case)
[08.1979 - 08.1980] TE72..USA *H,L=360,MARK=#* |
90999-92003 |
— | ||
|
88691
|
88691
88690-12140
Valve, Magnet (For Idle Up Device)
[08.1980 - 08.1981] TE72..(3FC,5F)..USA |
88690-12140 |
— | ||
|
88691
|
88691
88690-12141
Valve, Magnet (For Idle Up Device)
[08.1981 - 10.1981] TE72..(DX,SR5)..USA |
88690-12141 |
— | ||
|
88691
|
88691
88690-12170
Valve, Magnet (For Idle Up Device)
[08.1979 - 08.1980] TE72..USA |
88690-12170 |
— | ||
|
88691
|
88691
88690-12220
Valve, Magnet (For Idle Up Device)
[10.1981 - 08.1982] TE72..(DX,SR5)..USA |
88690-12220 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.24 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.28 |
||
