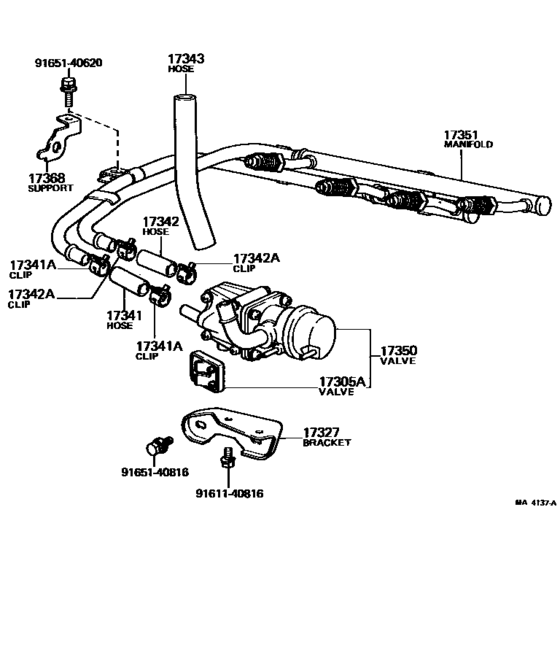

Manifold Air Injection System ([08.1979 - 08.1980] (7908-8008) ; (8008-8208)3TC..CND) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- U.S.A.
- Frame
- TE72
- grade
- DX
- body
- WG
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17305A
|
17305A
17305-28010 Valve Sub-Assy, Reed[08.1979 - 08.1980] 3TC..TE72 |
17305-28010 |
US $38.15 |
||
|
17327
|
17327
17327-18010
Bracket, Reed Valve
[08.1979 - 08.1980] 3TC..TE72 |
17327-18010 |
— | ||
|
17341
|
17341
17341-26040
Hose, No.1(For Air Injection System)
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC,W/COOLER |
17341-26040 |
— | ||
|
17341
|
17341
17341-26050 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17341-26050 |
US $32.91 |
||
|
17341
|
17341
17341-28040 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [08.1980 - 08.1982] 3TC..TE72..USA |
17341-28040 |
US $39.17 |
||
|
17341
|
17341
17341-28050 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [08.1980 - 08.1982] 3TC..TE72..(3FC,4FC,5F)..USA W/COOLER |
17341-28050 |
US $33.92 |
||
|
17341
|
17341
90445-27011 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [08.1979 - 08.1980] 3TC..TE72 |
90445-27011 |
US $29.27 |
||
|
17341A
|
17341A
90467-21001 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1979 - 08.1980] 3TC..TE72 |
90467-21001 |
US $2.77 |
||
| replacement | |||||
|
17341A
|
17341A
90467-21006 Clip(For Ventilation Hose No.2)[08.1979 - 08.1980] 3TC..TE72 |
90467-21006 |
US $2.56 |
||
|
17341A
|
17341A
96111-10300 Clamp Or Clip, No.1(For Air Injection System Hose, No.1)[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
96111-10300 |
US $1.79 |
||
|
17342
|
17342
17342-28040 Hose, No.2(For Air Injection System)NO.2(FOR AIR INJECTION SYSTEM) [08.1980 - 08.1982] 3TC..TE72..USA |
17342-28040 |
US $58.68 |
||
|
17342
|
17342
17342-28050 Hose, No.2(For Air Injection System)NO.2(FOR AIR INJECTION SYSTEM) [08.1980 - 08.1982] 3TC..TE72..(3FC,4FC,5F)..USA W/COOLER |
17342-28050 |
US $75.71 |
||
|
17342
|
17342
90445-27011 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [08.1979 - 08.1980] 3TC..TE72 |
90445-27011 |
US $29.27 |
||
|
17342
|
17342
90445-31008
Hose, No.2(For Air Injection System)
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
90445-31008 |
— | ||
|
17342A
|
17342A
90467-21001 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1979 - 08.1980] 3TC..TE72 |
90467-21001 |
US $2.77 |
||
| replacement | |||||
|
17342A
|
17342A
90467-21006 Clip(For Ventilation Hose No.2)[08.1979 - 08.1980] 3TC..TE72 |
90467-21006 |
US $2.56 |
||
|
17342A
|
17342A
90467-26001
Clip Or Clamp(For Ventilation Hose)
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
90467-26001 |
— | ||
| replacement | |||||
|
17342A
|
17342A
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
96134-52600 |
from US $3.84 |
||
|
17342A
|
17342A
90467-28003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1980 - 08.1982] 3TC..TE72..USA |
90467-28003 |
— | ||
| replacement | |||||
|
17342A
|
17342A
90467-28007 Clip Or Clamp(For Ventilation Hose)[08.1980 - 08.1982] 3TC..TE72..USA |
90467-28007 |
from US $3.10 |
||
|
17343
|
17343
17342-26031 Hose, No.3(For Air Injection System)NO.3(FOR AIR INJECTION SYSTEM) [08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17342-26031 |
US $35.38 |
||
|
17343
|
17343
17342-26042
Hose, No.3(For Air Injection System)
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC,W/COOLER |
17342-26042 |
— | ||
|
17343
|
17343
90445-31012 Hose, No.3(For Air Injection System)NO.3(FOR AIR INJECTION SYSTEM) [08.1979 - 08.1980] 3TC..TE72 |
90445-31012 |
US $17.62 |
||
|
17343
|
17343
90445-31015
Hose, No.3(For Air Injection System)
[08.1980 - 08.1982] 3TC..TE72..USA |
90445-31015 |
— | ||
|
17350
|
17350
17350-28010 Valve Assy, Reed[08.1979 - 08.1980] 3TC..TE72 |
17350-28010 |
US $176.18 |
||
| replacement | |||||
|
17350
|
17350
17350-18010 Valve Assy, Reed[08.1979 - 08.1980] 3TC..TE72 |
17350-18010 |
US $161.62 |
||
|
17351
|
17351
17351-28020
Manifold, Air Injection
[08.1979 - 08.1980] 3TC..TE72 |
17351-28020 |
— | ||
|
17351
|
17351
17351-28030
Manifold, Air Injection
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17351-28030 |
— | ||
|
17351
|
17351
17351-28070
Manifold, Air Injection
[08.1980 - 08.1982] 3TC..TE72..USA |
17351-28070 |
— | ||
|
17368
|
17368
17368-18040
Support, Air Tube
[09.1980 - 08.1982] 3TC..TE72 |
17368-18040 |
— | ||
|
17368
|
17368
17368-26020 Support, Air TubeAIR TUBE [08.1979 - 09.1980] 3TC..TE72 |
17368-26020 |
US $5.82 |
||
| replacement | |||||
|
17368
|
17368
17368-18040
Support, Air Tube
[08.1979 - 09.1980] 3TC..TE72 |
17368-18040 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.99 |
||
