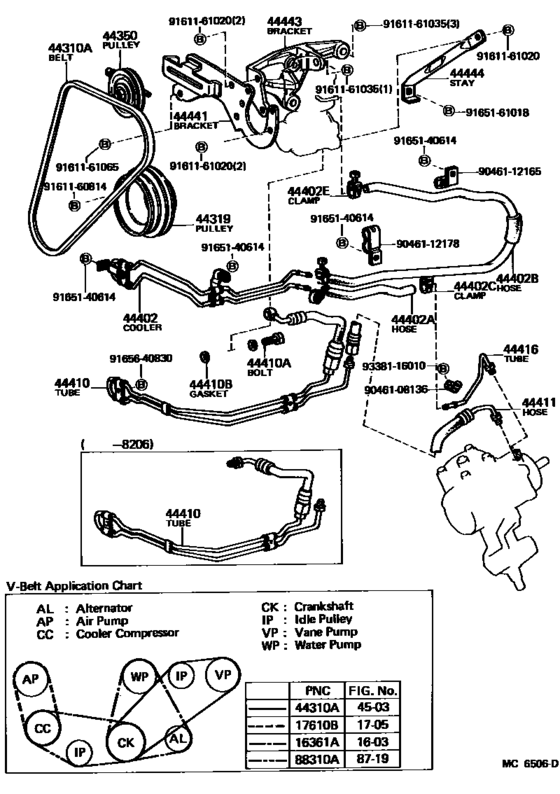

Power Steering Tube ([08.1979 - 08.1982] (7908-8208)3FC,4FC,5F) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- U.S.A.
- Frame
- TE72
- grade
- DX
- body
- WG
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361A
|
16361A
99331-10885
Belt, V(For Fan & Alternator)
[08.1979 - 08.1982] 3TC..TE72 |
99331-10885 |
— | ||
|
17610B
|
17610B
99332-10765
Belt, V(For Air Pump)
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC,W/COOLER |
99332-10765 |
— | ||
|
17610B
|
17610B
99332-10815 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
99332-10815 |
US $12.58 |
||
|
44310A
|
44310A
99332-11080
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[08.1979 - 08.1982] TE72..3FC,4FC,5F L=1080 |
99332-11080 |
— | ||
|
44319
|
44319
13477-18020 Pulley, Vane Pump Drive[08.1979 - 08.1982] TE72..3FC,4FC,5F |
13477-18020 |
US $97.55 |
||
| replacement | |||||
|
44319
|
44319
13477-18021 Pulley, Vane Pump Drive[08.1979 - 08.1982] TE72..3FC,4FC,5F |
13477-18021 |
US $139.78 |
||
|
44350
|
44350
44350-12020 Pulley Assy, Power Steering Idle[08.1979 - 08.1982] TE72..3FC,4FC,5F |
44350-12020 |
US $133.95 |
||
|
44402
|
44402
44402-12010 Cooler Sub-Assy, Power Steering Oil, No.1POWER STEERING OIL, NO.1 [08.1979 - 08.1982] TE72..3FC,4FC,5F |
44402-12010 |
US $110.66 |
||
|
44402A
|
44402A
90445-18067 Hose(For Return Tube Outlet)[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90445-18067 |
US $10.48 |
||
| replacement | |||||
|
44402A
|
44402A
90445-18089 Hose, Power Steering Oil Cooler Inlet[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90445-18089 |
from US $9.69 |
||
|
44402B
|
44402B
90447-18003
Hose, Power Steering Oil Cooler Outlet
[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90447-18003 |
— | ||
|
44402C
|
44402C
90460-01001 Clamp, Oil Cooler Hose[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90460-01001 |
from US $3.04 |
||
|
44402E
|
44402E
90460-01001 Clamp, Oil Cooler Hose[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90460-01001 |
from US $3.04 |
||
|
44410
|
44410
44410-12020 Tube Assy, Pressure FeedPRESSURE FEED [08.1979 - 08.1980] TE72..3FC,5F |
44410-12020 |
US $263.54 |
||
|
44410
|
44410
44410-12021 Tube Assy, Pressure Feed[08.1980 - 06.1982] TE72..3FC,4FC,5F |
44410-12021 |
US $263.54 |
||
| replacement | |||||
|
44410
|
44410
44410-12H00
Tube Assy, Pressure Feed
[08.1980 - 06.1982] TE72..3FC,4FC,5F |
44410-12H00 |
— | ||
|
44410
|
44410
44410-12022 Tube Assy, Pressure Feed[06.1982 - 08.1982] TE72..3FC,4FC,5F |
44410-12022 |
US $227.14 |
||
| replacement | |||||
|
44410
|
44410
44410-12360 Tube Assy, Pressure Feed[06.1982 - 08.1982] TE72..3FC,4FC,5F |
44410-12360 |
US $228.59 |
||
|
44410A
|
44410A
90401-16005 Bolt, Union(For Pressure Feed Tube)[06.1982 - 08.1982] TE72..3FC,4FC,5F |
90401-16005 |
US $21.56 |
||
| replacement | |||||
|
44410A
|
44410A
90401-16008 Bolt, Union(For Pressure Feed Tube)[06.1982 - 08.1982] TE72..3FC,4FC,5F |
90401-16008 |
from US $9.76 |
||
|
44410B
|
44410B
90430-16242 Gasket, W/head Straight Screw Plug[06.1982 - 08.1982] TE72..3FC,4FC,5F |
90430-16242 |
from US $0.94 |
||
|
44411
|
44411
44415-12020 Hose, Pressure Feed[08.1979 - 08.1982] TE72..3FC,4FC,5F |
44415-12020 |
US $144.14 |
||
| replacement | |||||
|
44411
|
44411
44415-12021 Hose, Pressure Feed[08.1979 - 08.1982] TE72..3FC,4FC,5F |
44415-12021 |
US $145.60 |
||
|
44416
|
44416
44416-12010 Tube, Return(For Steering Gear Outlet)RETURN(FOR STEERING GEAR OUTLET) [08.1979 - 08.1982] TE72..3FC,4FC,5F |
44416-12010 |
US $8.15 |
||
|
44441
|
44441
44441-12010
Bracket, Pump, Front
[08.1979 - 08.1982] TE72..3FC,4FC,5F |
44441-12010 |
— | ||
|
44443
|
44443
44443-12010
Bracket, Pump
[08.1979 - 08.1982] TE72..3FC,4FC,5F |
44443-12010 |
— | ||
|
44444
|
44444
44444-12010
Stay, Pump, Rear
[08.1979 - 08.1982] TE72..3FC,4FC,5F |
44444-12010 |
— | ||
|
88310A
|
88310A
99332-10965
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[08.1979 - 08.1980] TE72..USA |
99332-10965 |
— | ||
|
9046108136
|
9046108136
90461-08136
New Genuine Part
|
90461-08136 |
— | ||
|
9046112165
|
9046112165
90461-12165
New Genuine Part
|
90461-12165 |
— | ||
|
9046112178
|
9046112178
90461-12178 New Genuine Part |
90461-12178 |
US $6.70 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9161161065
|
9161161065
91611-61065
Bolt(For Transaxle & Engine Setting)
|
91611-61065 |
— | ||
| replacement | |||||
|
9161161065
|
9161161065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9165161018
|
9165161018
91651-61018 New Genuine Part |
91651-61018 |
US $1.89 |
||
|
9165640830
|
9165640830
91656-40830 Bolt (For Transfer Power Take-Off Cover) |
91656-40830 |
US $2.18 |
||
| replacement | |||||
|
9165640830
|
9165640830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.44 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $0.87 |
||
