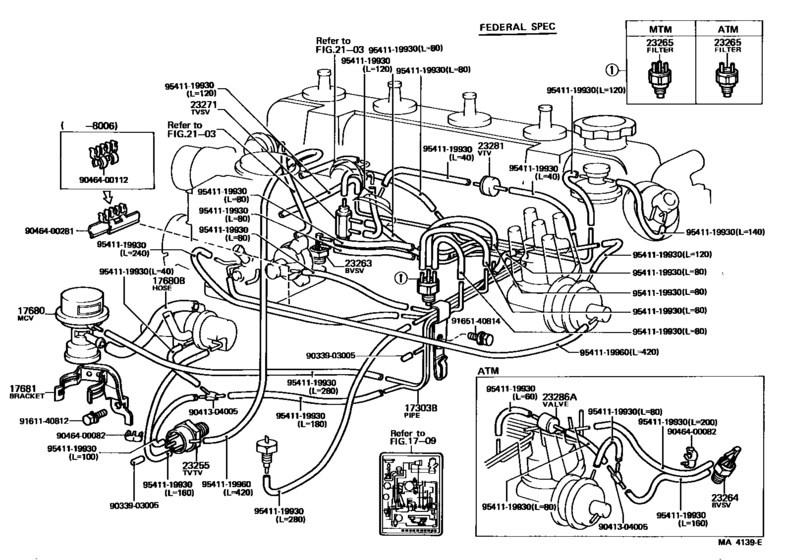

Vacuum Piping ([08.1979 - 08.1980] (7908-8008)3TC..USA) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- U.S.A.
- Frame
- TE72
- grade
- DX
- body
- WG
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-28010
Pipe Sub-Assy, Air, No.1
[08.1979 - 08.1980] 3TC..TE72 |
17303-28010 |
— | ||
|
17303B
|
17303B
17303-28020
Pipe Sub-Assy, Air, No.1
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17303-28020 |
— | ||
|
17303B
|
17303B
17303-28040
Pipe Sub-Assy, Air, No.1
[08.1980 - 08.1982] 3TC..TE72..USA |
17303-28040 |
— | ||
|
17680
|
17680
17680-28010
Valve Assy, Mixture Control
[08.1979 - 08.1980] 3TC..TE72..MTM..USA |
17680-28010 |
— | ||
|
17680
|
17680
17680-28020
Valve Assy, Mixture Control
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17680-28020 |
— | ||
|
17680B
|
17680B
90445-16007 Hose(For Mixture Control Valve)[08.1979 - 08.1980] 3TC..TE72..MTM..USA |
90445-16007 |
US $10.19 |
||
|
17680B
|
17680B
90445-16011
Hose(For Mixture Control Valve)
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
90445-16011 |
— | ||
|
17681
|
17681
17681-18021
Bracket, Mixture Control Valve
[08.1979 - 08.1980] 3TC..TE72..MTM..USA |
17681-18021 |
— | ||
|
17681
|
17681
17681-26011
Bracket, Mixture Control Valve
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17681-26011 |
— | ||
|
23255
|
23255
90925-01068
Valve, Thermostatic Vacuum Transmitting, No.1
[08.1979 - 08.1980] 3TC..TE72 |
90925-01068 |
— | ||
|
23263
|
23263
90925-05017 Valve, Bimetal Vacuum Switching, No.1[08.1979 - 08.1982] 3TC..TE72..USA |
90925-05017 |
US $41.95 |
||
|
23264
|
23264
90925-05050 Valve, Bimetal Vacuum Switching, No.3BIMETAL VACUUM SWITCHING, NO.1 [08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
90925-05050 |
US $33.78 |
||
| replacement | |||||
|
23264
|
23264
90925-05059
Valve, Bimetal Vacuum Switching, No.3
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
90925-05059 |
— | ||
|
23264
|
23264
90925-05059
Valve, Bimetal Vacuum Switching, No.3
[08.1980 - 08.1982] 3TC..TE72..USA |
90925-05059 |
— | ||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1979 - 08.1980] 3TC..TE72..MTM..USA; 3TC..TE72..3FC..USA CALIFORNIA SPEC |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1979 - 08.1980] 3TC..TE72..MTM..USA; 3TC..TE72..3FC..USA CALIFORNIA SPEC |
90917-11027 |
from US $23.71 |
||
|
23271
|
23271
90925-02048
Valve, Thermostatic Vacuum Switching, No.1
[08.1979 - 08.1980] 3TC..TE72 |
90925-02048 |
— | ||
|
23281
|
23281
90925-01041
Valve, Bimetal Vacuum Switching, No.1
[08.1979 - 08.1982] 3TC..TE72..USA |
90925-01041 |
— | ||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
US $1.76 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.60 |
||
|
9046400112
|
9046400112
90464-00112 New Genuine Part |
90464-00112 |
US $4.22 |
||
|
9046400281
|
9046400281
90464-00281
New Genuine Part
|
90464-00281 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
