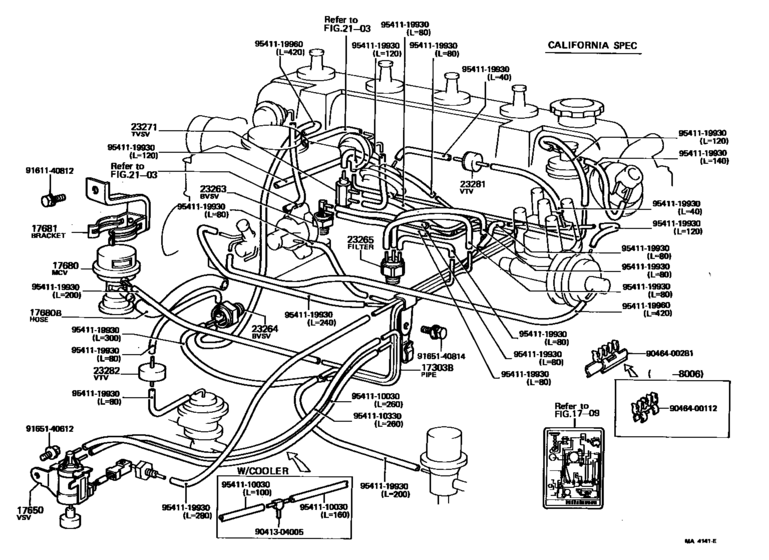

Vacuum Piping ([08.1979 - 08.1980] (7908-8008)3TC..USA) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- U.S.A.
- Frame
- TE72
- grade
- DX
- body
- WG
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-28010
Pipe Sub-Assy, Air, No.1
[08.1979 - 08.1980] 3TC..TE72 |
17303-28010 |
— | ||
|
17303B
|
17303B
17303-28020
Pipe Sub-Assy, Air, No.1
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17303-28020 |
— | ||
|
17303B
|
17303B
17303-28040
Pipe Sub-Assy, Air, No.1
[08.1980 - 08.1982] 3TC..TE72..USA |
17303-28040 |
— | ||
|
17650
|
17650
89570-12130 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
89570-12130 |
US $132.50 |
||
|
17650
|
17650
89570-12140
Valve Assy, Vacuum Switching
[08.1980 - 08.1982] 3TC..TE72..USA AIR BLEED |
89570-12140 |
— | ||
|
17650
|
17650
89570-20160 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1980 - 08.1982] 3TC..TE72..USA AI |
89570-20160 |
US $212.58 |
||
|
17680
|
17680
17680-28010
Valve Assy, Mixture Control
[08.1979 - 08.1980] 3TC..TE72..MTM..USA |
17680-28010 |
— | ||
|
17680
|
17680
17680-28020
Valve Assy, Mixture Control
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17680-28020 |
— | ||
|
17680B
|
17680B
90445-16007 Hose(For Mixture Control Valve)[08.1979 - 08.1980] 3TC..TE72..MTM..USA |
90445-16007 |
US $10.19 |
||
|
17680B
|
17680B
90445-16011
Hose(For Mixture Control Valve)
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
90445-16011 |
— | ||
|
17681
|
17681
17681-18021
Bracket, Mixture Control Valve
[08.1979 - 08.1980] 3TC..TE72..MTM..USA |
17681-18021 |
— | ||
|
17681
|
17681
17681-26011
Bracket, Mixture Control Valve
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17681-26011 |
— | ||
|
23263
|
23263
90925-05017 Valve, Bimetal Vacuum Switching, No.1[08.1979 - 08.1982] 3TC..TE72..USA |
90925-05017 |
US $41.95 |
||
|
23264
|
23264
90925-05050 Valve, Bimetal Vacuum Switching, No.3BIMETAL VACUUM SWITCHING, NO.1 [08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
90925-05050 |
US $33.78 |
||
| replacement | |||||
|
23264
|
23264
90925-05059
Valve, Bimetal Vacuum Switching, No.3
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
90925-05059 |
— | ||
|
23264
|
23264
90925-05059
Valve, Bimetal Vacuum Switching, No.3
[08.1980 - 08.1982] 3TC..TE72..USA |
90925-05059 |
— | ||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1979 - 08.1980] 3TC..TE72..MTM..USA; 3TC..TE72..3FC..USA CALIFORNIA SPEC |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1979 - 08.1980] 3TC..TE72..MTM..USA; 3TC..TE72..3FC..USA CALIFORNIA SPEC |
90917-11027 |
from US $23.71 |
||
|
23271
|
23271
90925-02048
Valve, Thermostatic Vacuum Switching, No.1
[08.1979 - 08.1980] 3TC..TE72 |
90925-02048 |
— | ||
|
23281
|
23281
90925-01041
Valve, Bimetal Vacuum Switching, No.1
[08.1979 - 08.1982] 3TC..TE72..USA |
90925-01041 |
— | ||
|
23282
|
23282
90925-01066 Valve, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.2 [08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
90925-01066 |
US $25.33 |
||
|
23282
|
23282
90925-01089
Valve, Vacuum Transmitting, No.2
[08.1981 - 08.1982] 3TC..TE72..4FC..USA; 3TC..TE72..(3FC,4F,5F)..USA HIGH ALTITUDE SPEC |
90925-01089 |
— | ||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9046400112
|
9046400112
90464-00112 New Genuine Part |
90464-00112 |
US $4.22 |
||
|
9046400281
|
9046400281
90464-00281
New Genuine Part
|
90464-00281 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9541110030
|
9541110030
95411-10030
Hose (For Idle Up Device)
|
95411-10030 |
— | ||
| replacement | |||||
|
9541110030
|
9541110030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110330
|
9541110330
95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift) |
95411-10330 |
US $6.70 |
||
| replacement | |||||
|
9541110330
|
9541110330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
