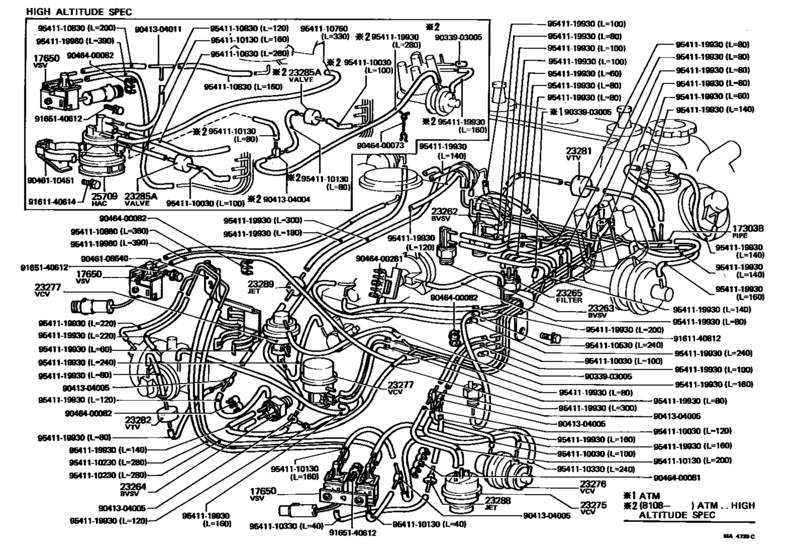

Vacuum Piping ([08.1980 - 08.1982] (8008-8208)3TC..USA) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- U.S.A.
- Frame
- TE72
- grade
- DX
- body
- WG
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-28010
Pipe Sub-Assy, Air, No.1
[08.1979 - 08.1980] 3TC..TE72 |
17303-28010 |
— | ||
|
17303B
|
17303B
17303-28020
Pipe Sub-Assy, Air, No.1
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
17303-28020 |
— | ||
|
17303B
|
17303B
17303-28040
Pipe Sub-Assy, Air, No.1
[08.1980 - 08.1982] 3TC..TE72..USA |
17303-28040 |
— | ||
|
17650
|
17650
89570-12130 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
89570-12130 |
US $132.50 |
||
|
17650
|
17650
89570-12140
Valve Assy, Vacuum Switching
[08.1980 - 08.1982] 3TC..TE72..USA AIR BLEED |
89570-12140 |
— | ||
|
17650
|
17650
89570-20160 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1980 - 08.1982] 3TC..TE72..USA AI |
89570-20160 |
US $212.58 |
||
|
23262
|
23262
25810-15010 Valve, Bimetal Vacuum Switching, No.1[08.1980 - 08.1982] 3TC..TE72 |
25810-15010 |
US $74.26 |
||
|
23263
|
23263
90925-05017 Valve, Bimetal Vacuum Switching, No.1[08.1979 - 08.1982] 3TC..TE72..USA |
90925-05017 |
US $41.95 |
||
|
23264
|
23264
90925-05050 Valve, Bimetal Vacuum Switching, No.3BIMETAL VACUUM SWITCHING, NO.1 [08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
90925-05050 |
US $33.78 |
||
| replacement | |||||
|
23264
|
23264
90925-05059
Valve, Bimetal Vacuum Switching, No.3
[08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
90925-05059 |
— | ||
|
23264
|
23264
90925-05059
Valve, Bimetal Vacuum Switching, No.3
[08.1980 - 08.1982] 3TC..TE72..USA |
90925-05059 |
— | ||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1979 - 08.1980] 3TC..TE72..MTM..USA; 3TC..TE72..3FC..USA CALIFORNIA SPEC |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1979 - 08.1980] 3TC..TE72..MTM..USA; 3TC..TE72..3FC..USA CALIFORNIA SPEC |
90917-11027 |
from US $23.71 |
||
|
23275
|
23275
90925-03108 Valve, Vacuum Control, No.1[08.1980 - 08.1982] 3TC..TE72..USA |
90925-03108 |
US $57.66 |
||
| replacement | |||||
|
23275
|
23275
90925-03186 Valve, Vacuum Control, No.1[08.1980 - 08.1982] 3TC..TE72..USA |
90925-03186 |
US $46.74 |
||
|
23276
|
23276
90925-03109
Valve, Vacuum Control, No.2
[08.1980 - 08.1982] 3TC..TE72..USA |
90925-03109 |
— | ||
|
23276
|
23276
90925-03110
Valve, Vacuum Control, No.2
[08.1980 - 08.1982] 3TC..TE72..(3FC,4F,5F)..USA CALIFORNIA SPEC |
90925-03110 |
— | ||
|
23277
|
23277
90925-03111 Valve, Vacuum Control, No.3VACUUM CONTROL, NO.3 [08.1980 - 08.1982] 3TC..TE72..USA |
90925-03111 |
US $67.41 |
||
|
23277
|
23277
90925-03112
Valve, Vacuum Control, No.3
[08.1980 - 08.1982] 3TC..TE72..USA EVAPO |
90925-03112 |
— | ||
|
23281
|
23281
90925-01041
Valve, Bimetal Vacuum Switching, No.1
[08.1979 - 08.1982] 3TC..TE72..USA |
90925-01041 |
— | ||
|
23282
|
23282
90925-01066 Valve, Vacuum Transmitting, No.1VACUUM TRANSMITTING, NO.2 [08.1979 - 08.1980] 3TC..TE72..USA CALIFORNIA SPEC |
90925-01066 |
US $25.33 |
||
|
23282
|
23282
90925-01089
Valve, Vacuum Transmitting, No.2
[08.1981 - 08.1982] 3TC..TE72..4FC..USA; 3TC..TE72..(3FC,4F,5F)..USA HIGH ALTITUDE SPEC |
90925-01089 |
— | ||
|
23285A
|
23285A
90917-10038
Valve, Check, No.2
[08.1979 - 08.1981] 3TC..TE72..USA HIGH ALTITUDE SPEC |
90917-10038 |
— | ||
|
23288
|
23288
90925-04025 Jet, No.1[08.1980 - 08.1982] 3TC..TE72..USA |
90925-04025 |
US $12.52 |
||
|
23288
|
23288
90925-04026 Jet, No.1[08.1980 - 08.1982] 3TC..TE72..USA CALIFORNIA SPEC |
90925-04026 |
US $11.65 |
||
|
23289
|
23289
90925-04012 Jet, No.1[08.1980 - 08.1982] 3TC..TE72..USA |
90925-04012 |
US $13.25 |
||
|
25709
|
25709
25709-38010
Valve Sub-Assy, High Altitude Compensator
[08.1979 - 08.1982] 3TC..TE72..USA HIGH ALTITUDE SPEC |
25709-38010 |
— | ||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
US $1.76 |
||
|
9041304004
|
9041304004
90413-04004 Way, 3(For Canister) |
90413-04004 |
US $2.62 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9041304011
|
9041304011
90413-04011
New Genuine Part
|
90413-04011 |
— | ||
|
9046108540
|
9046108540
90461-08540
New Genuine Part
|
90461-08540 |
— | ||
|
9046110451
|
9046110451
90461-10451
New Genuine Part
|
90461-10451 |
— | ||
|
9046400073
|
9046400073
90464-00073
Clamp(For Resistive Cord)
|
90464-00073 |
— | ||
|
9046400081
|
9046400081
90464-00081
Clamp (For Idle Up Divice), No.1
|
90464-00081 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.60 |
||
|
9046400281
|
9046400281
90464-00281
New Genuine Part
|
90464-00281 |
— | ||
|
9161140614
|
9161140614
91611-40614
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40614 |
— | ||
| replacement | |||||
|
9161140614
|
9161140614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9541110030
|
9541110030
95411-10030
Hose (For Idle Up Device)
|
95411-10030 |
— | ||
| replacement | |||||
|
9541110030
|
9541110030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110130
|
9541110130
95411-10130
Pipe Or Hose
|
95411-10130 |
— | ||
| replacement | |||||
|
9541110130
|
9541110130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110230
|
9541110230
95411-10230 Hose, Vacuum, No.2 (For Front Drive Shift) |
95411-10230 |
US $6.70 |
||
| replacement | |||||
|
9541110230
|
9541110230
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110330
|
9541110330
95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift) |
95411-10330 |
US $6.70 |
||
| replacement | |||||
|
9541110330
|
9541110330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110530
|
9541110530
95411-10530 Hose, No.1(For Opener) |
95411-10530 |
US $6.41 |
||
| replacement | |||||
|
9541110530
|
9541110530
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110630
|
9541110630
95411-10630 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10630 |
US $6.70 |
||
| replacement | |||||
|
9541110630
|
9541110630
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110760
|
9541110760
95411-10760 Hose, Vacuum, No.7 (For Heater Or Air Conditioner) |
95411-10760 |
US $11.65 |
||
| replacement | |||||
|
9541110760
|
9541110760
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110830
|
9541110830
95411-10830 Hose, Cruise Control Vacuum |
95411-10830 |
US $6.70 |
||
| replacement | |||||
|
9541110830
|
9541110830
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110860
|
9541110860
95411-10860 Hose, Vacuum (For Idle Up Device), No.1NO.1 |
95411-10860 |
US $11.65 |
||
| replacement | |||||
|
9541110860
|
9541110860
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
