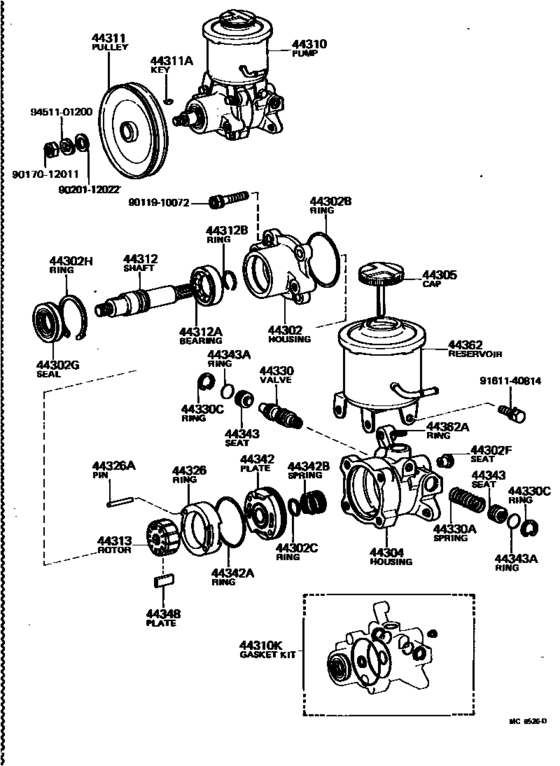

Vane Pump & Reservoir (Power Steering) ([08.1979 - 08.1982] (7908-8208)3FC,4FC,5F) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- U.S.A.
- Frame
- TE72
- grade
- DX
- body
- WG
- ENGINE
- 3TC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44302
|
44302
44302-12010
Housing Sub-Assy, Vane Pump, Front
[08.1979 - 08.1982] TE72..3FC,4FC,5F |
44302-12010 |
— | ||
|
44302B
|
44302B
90301-60001 Ring, O, No.1(For Vane Pump Housing)[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90301-60001 |
US $4.89 |
||
|
44302C
|
44302C
96710-01016
Ring, O, No.2(For Vane Pump Housing)
[08.1979 - 12.1981] TE72..3FC,4FC,5F |
96710-01016 |
— | ||
| replacement | |||||
|
44302C
|
44302C
96711-19016 Ring, O (For 5Th Shift Arm Shaft)[08.1979 - 12.1981] TE72..3FC,4FC,5F |
96711-19016 |
US $4.80 |
||
|
44302C
|
44302C
96711-19016 Ring, O (For 5Th Shift Arm Shaft)[12.1981 - 08.1982] TE72..3FC,4FC,5F |
96711-19016 |
US $4.80 |
||
|
44302F
|
44302F
90410-06030
Seat, Union(For Valve Body Housing)
[08.1979 - 06.1982] TE72..3FC,4FC,5F |
90410-06030 |
— | ||
|
44302G
|
44302G
90311-24001 Seal, Oil, No.1(For Vane Pump Housing)[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90311-24001 |
from US $3.52 |
||
|
44302H
|
44302H
90521-44002 Ring, Hole Snap(For Power Steering Gear Housing)[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90521-44002 |
US $8.21 |
||
|
44304
|
44304
44304-12010
Housing Sub-Assy, Vane Pump, Rear
[08.1979 - 08.1982] TE72..3FC,4FC,5F |
44304-12010 |
— | ||
|
44305
|
44305
44305-30020
Cap Sub-Assy, Vane Pump Oil Reservoir
[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F |
44305-30020 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F |
44305-22061 |
from US $18.85 |
||
|
44310
|
44310
44320-12010
Pump Assy, Vane
[08.1979 - 04.1981] TE72..3FC,5F |
44320-12010 |
— | ||
|
44310
|
44310
44320-12011 Pump Assy, Vane[04.1981 - 06.1982] TE72..3FC,4FC,5F |
44320-12011 |
US $1,349.71 |
||
| replacement | |||||
|
44310
|
44310
44320-12H00
Pump Assy, Vane
[04.1981 - 06.1982] TE72..3FC,4FC,5F |
44320-12H00 |
— | ||
|
44310
|
44310
44320-12012
Pump Assy, Vane
[06.1982 - 08.1982] TE72..3FC,4FC,5F |
44320-12012 |
— | ||
|
44310K
|
44310K
04446-12010
Gasket Kit, Power Steering Pump
[08.1979 - 08.1981] TE72..3FC,5F |
04446-12010 |
— | ||
| replacement | |||||
|
44310K
|
44310K
04446-22020
Gasket Kit, Power Steering Pump
[08.1979 - 08.1981] TE72..3FC,5F |
04446-22020 |
— | ||
|
44310K
|
44310K
04446-12011
Gasket Kit, Power Steering Pump
[08.1981 - 08.1982] TE72..3FC,4FC,5F |
04446-12011 |
— | ||
| replacement | |||||
|
44310K
|
44310K
04446-22020
Gasket Kit, Power Steering Pump
[08.1981 - 08.1982] TE72..3FC,4FC,5F |
04446-22020 |
— | ||
|
44311
|
44311
44311-12010 Pulley, Vane Pump[08.1979 - 08.1982] TE72..3FC,4FC,5F |
44311-12010 |
US $99.59 |
||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F |
90280-05008 |
US $3.52 |
||
|
44312
|
44312
44312-12010
Shaft, Vane Pump
[08.1979 - 08.1982] TE72..3FC,4FC,5F |
44312-12010 |
— | ||
|
44312A
|
44312A
90363-17004 Bearing(For Vane Pump Shaft)[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90363-17004 |
US $11.71 |
||
|
44312B
|
44312B
90520-15001
Ring, Snap, No.1(For Vane Pump Shaft)
[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90520-15001 |
— | ||
| replacement | |||||
|
44312B
|
44312B
90520-15005 Ring, Snap, No.1(For Vane Pump Shaft)[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90520-15005 |
US $0.70 |
||
|
44313
|
44313
44313-12010
Rotor, Vane Pump
[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F NO MARK |
44313-12010 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F NO MARK |
44313-22040 |
US $108.33 |
||
|
44313
|
44313
44313-12020
Rotor, Vane Pump
[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 1,MARK 1 |
44313-12020 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 1,MARK 1 |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-12030 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 2,MARK 2 |
44313-12030 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 2,MARK 2 |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-12040 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 3,MARK 3 |
44313-12040 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 3,MARK 3 |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-12050 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 4,MARK 4 |
44313-12050 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F MARK 4,MARK 4 |
44313-22080 |
US $103.38 |
||
|
44326
|
44326
44325-12010 Ring, Cam(For Vane Pump)[08.1979 - 08.1982] TE72..3FC,4FC,5F NO MARK |
44325-12010 |
US $109.78 |
||
|
44326
|
44326
44325-12020 Ring, Cam(For Vane Pump)[08.1979 - 08.1982] TE72..3FC,4FC,5F MARK 1,MARK 1 |
44325-12020 |
US $113.57 |
||
|
44326
|
44326
44325-12030 Ring, Cam(For Vane Pump)[08.1979 - 08.1982] TE72..3FC,4FC,5F MARK 2,MARK 2 |
44325-12030 |
US $116.48 |
||
|
44326
|
44326
44325-12040 Ring, Cam(For Vane Pump)[08.1979 - 08.1982] TE72..3FC,4FC,5F MARK 3,MARK 3 |
44325-12040 |
US $116.48 |
||
|
44326
|
44326
44325-12050 Ring, Cam(For Vane Pump)[08.1979 - 08.1982] TE72..3FC,4FC,5F MARK 4,MARK 4 |
44325-12050 |
US $116.48 |
||
|
44326A
|
44326A
90250-05008 Pin, Straight(For Vane Pump Cam Ring)[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F L=25,OD=5.0,L=25 |
90250-05008 |
US $3.20 |
||
|
44330
|
44330
44330-12010 Valve Assy, Flow Control[08.1979 - 07.1982] TE72..3FC,4FC,5F MARK A,MARK A |
44330-12010 |
US $104.83 |
||
| replacement | |||||
|
44330
|
44330
44330-32670
Valve Assy, Flow Control
[08.1979 - 07.1982] TE72..3FC,4FC,5F MARK A,MARK A |
44330-32670 |
— | ||
|
44330
|
44330
44330-12020 Valve Assy, Flow Control[08.1979 - 07.1982] TE72..3FC,4FC,5F MARK B,MARK B |
44330-12020 |
US $104.83 |
||
| replacement | |||||
|
44330
|
44330
44330-32680 Valve Assy, Flow Control[08.1979 - 07.1982] TE72..3FC,4FC,5F MARK B,MARK B |
44330-32680 |
US $115.02 |
||
|
44330
|
44330
44330-12030 Valve Assy, Flow Control[08.1979 - 07.1982] TE72..3FC,4FC,5F MARK C,MARK C |
44330-12030 |
US $104.83 |
||
| replacement | |||||
|
44330
|
44330
44330-32690 Valve Assy, Flow Control[08.1979 - 07.1982] TE72..3FC,4FC,5F MARK C,MARK C |
44330-32690 |
US $115.02 |
||
|
44330
|
44330
44330-12040 Valve Assy, Flow Control[08.1979 - 07.1982] TE72..3FC,4FC,5F MARK D,MARK D |
44330-12040 |
US $104.83 |
||
| replacement | |||||
|
44330
|
44330
44330-32700 Valve Assy, Flow Control[08.1979 - 07.1982] TE72..3FC,4FC,5F MARK D,MARK D |
44330-32700 |
US $115.02 |
||
|
44330
|
44330
44330-12050 Valve Assy, Flow Control[08.1979 - 07.1982] TE72..3FC,4FC,5F MARK E,MARK E |
44330-12050 |
US $104.83 |
||
| replacement | |||||
|
44330
|
44330
44330-32710 Valve Assy, Flow Control[08.1979 - 07.1982] TE72..3FC,4FC,5F MARK E,MARK E |
44330-32710 |
US $115.02 |
||
|
44330
|
44330
44330-12060 Valve Assy, Flow Control[09.1980 - 07.1982] TE72..3FC,4FC,5F MARK F,MARK F |
44330-12060 |
US $104.83 |
||
| replacement | |||||
|
44330
|
44330
44330-32720 Valve Assy, Flow Control[09.1980 - 07.1982] TE72..3FC,4FC,5F MARK F,MARK F |
44330-32720 |
US $115.02 |
||
|
44330
|
44330
44330-12130
Valve Assy, Flow Control
[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK A,MARK A |
44330-12130 |
— | ||
| replacement | |||||
|
44330
|
44330
44330-32670
Valve Assy, Flow Control
[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK A,MARK A |
44330-32670 |
— | ||
|
44330
|
44330
44330-12140 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK B,MARK B |
44330-12140 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32680 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK B,MARK B |
44330-32680 |
US $115.02 |
||
|
44330
|
44330
44330-12150 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK C,MARK C |
44330-12150 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32690 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK C,MARK C |
44330-32690 |
US $115.02 |
||
|
44330
|
44330
44330-12160 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK D,MARK D |
44330-12160 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32700 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK D,MARK D |
44330-32700 |
US $115.02 |
||
|
44330
|
44330
44330-12170 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK E,MARK E |
44330-12170 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32710 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK E,MARK E |
44330-32710 |
US $115.02 |
||
|
44330
|
44330
44330-12180 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK F,MARK F |
44330-12180 |
US $109.20 |
||
| replacement | |||||
|
44330
|
44330
44330-32720 Valve Assy, Flow Control[07.1982 - 07.1983] AE71,TE72..3FC,4FC,5F MARK F,MARK F |
44330-32720 |
US $115.02 |
||
|
44330A
|
44330A
90501-12447
Spring, Compression(For Flow Control Valve)
[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F |
90501-12447 |
— | ||
|
44330C
|
44330C
96151-01700 Ring, Snap(For Flow Control Valve)[08.1979 - 08.1982] TE72..3FC,4FC,5F |
96151-01700 |
US $3.67 |
||
|
44342
|
44342
44341-12010 Plate, Vane Pump Side, Front[08.1979 - 08.1982] TE72..3FC,4FC,5F |
44341-12010 |
US $91.73 |
||
|
44342A
|
44342A
90301-53002 Ring, O(For Vane Pump Side Plate Rear)[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90301-53002 |
US $4.19 |
||
|
44342B
|
44342B
90501-23014 Spring, Compression(For Vane Pump Side Plate Rear)[08.1979 - 08.1982] TE72..3FC,4FC,5F |
90501-23014 |
from US $3.83 |
||
|
44343
|
44343
44343-12010
Seat, Flow Control Spring
[08.1979 - 08.1982] TE72..3FC,4FC,5F |
44343-12010 |
— | ||
|
44343A
|
44343A
96710-01014
Ring, O, No.3(For Vane Pump Housing)
[08.1979 - 12.1981] TE72..3FC,4FC,5F |
96710-01014 |
— | ||
| replacement | |||||
|
44343A
|
44343A
96711-19014 O-Ring[08.1979 - 12.1981] TE72..3FC,4FC,5F |
96711-19014 |
from US $2.34 |
||
|
44343A
|
44343A
96711-19014 O-Ring[12.1981 - 08.1982] TE72..3FC,4FC,5F |
96711-19014 |
from US $2.34 |
||
|
44348
|
44348
44345-12010 Plate, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F L=14.997,L=14.996-14.998 |
44345-12010 |
US $10.56 |
||
|
44348
|
44348
44345-12020 Plate, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F L=14.995,L=14.994-14.996 |
44345-12020 |
US $6.12 |
||
|
44348
|
44348
44345-12030 Plate, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F L=14.993,L=14.992-14.994 |
44345-12030 |
US $6.12 |
||
|
44348
|
44348
44345-12040 Plate, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F L=14.991,L=14.990-14.992 |
44345-12040 |
US $6.12 |
||
|
44348
|
44348
44345-12050 Plate, Vane Pump[08.1979 - 07.1983] AE71,TE72..3FC,4FC,5F L=14.989,L=14.988-14.990 |
44345-12050 |
US $6.12 |
||
|
44362
|
44362
44306-12010
Reservoir, Oil(For Vane Pump)
[08.1979 - 04.1981] TE72..3FC,5F |
44306-12010 |
— | ||
|
44362
|
44362
44306-12011
Reservoir, Oil(For Vane Pump)
[04.1981 - 08.1982] TE72..3FC,4FC,5F |
44306-12011 |
— | ||
|
44362A
|
44362A
96710-01013
Ring, O(For Power Steering Suction Port)
[08.1979 - 12.1981] TE72..3FC,4FC,5F |
96710-01013 |
— | ||
| replacement | |||||
|
44362A
|
44362A
96711-19013 Ring, O(For Power Steering Suction Port)[08.1979 - 12.1981] TE72..3FC,4FC,5F |
96711-19013 |
from US $2.77 |
||
|
44362A
|
44362A
96711-19013 Ring, O(For Power Steering Suction Port)[12.1981 - 07.1983] AE71,TE72..3FC,4FC,5F |
96711-19013 |
from US $2.77 |
||
|
9011910072
|
9011910072
90119-10072 New Genuine Part |
90119-10072 |
US $2.56 |
||
|
9017012011
|
9017012011
90170-12011 Nut(For Vane Pump Pulley) |
90170-12011 |
US $3.14 |
||
|
9020112022
|
9020112022
90201-12022 New Genuine Part |
90201-12022 |
US $1.60 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.68 |
||
